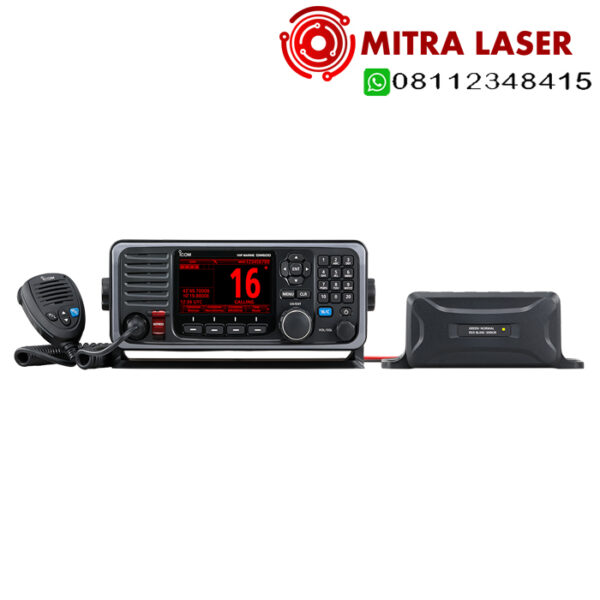

ICOM GM600 GMDSS Marine

Description ICOM GM600 GMDSS Marine VHF Transceiver ICOM GM600 GMDSS Marine merupakan radio yang di rancang khusus untuk marine dengan kualitas handal dan tahan lama. Dengan sistem GMDSS (Global Maritime Distress and Safety System)  yang disyaratkan oleh SOLAS atau banyak peraturan maritim domestik. Ketika dipasang dengan radio GM800 MF/HF, radio GM600 dan GM800 menyediakan stasiun radio GMDSS VHF, MF, dan HF yang ideal. GMDSS VHF Radio with Class A DSC The GM600 is a GMDSS (Global Maritime Distress and Safety System) VHF radiotelephone which can be used as a part of GMDSS system equipment required by SOLAS or many domestic maritime regulations. When installed with the GM800 MF/HF radio, GM600 and GM800 radios provides an ideal GMDSS VHF, MF and HF radio station. Meets Strict Environmental Requirements The GM600 has passed rigorous environmental testing and quality assurance process. The GM600 is designed to provide reliable operation and long-lasting durability under harsh maritime environments. In fact, the front panel has IPX7 protection (1m depth of water for 30 minutes) and the rear panel has corrosion resistance coating. Meets ITU-R M.493-13 DSC The built-in DSC provides automated distress and safety communication. The dedicated DSC watch-keeping receiver continuously monitors the DSC calling channel (CH70). A total of 100 MMSI numbers for DSC call (Individual ID: 75, Group: 25) can be stored with a 10-character ID name. Using the DSC Task mode provides straight-forward DSC operation. DSC Task Mode Operation Example When receiving a DSC call, a pop-up window appears. Push [Accept] button to send the acknowledgement to the calling station. 4.3 inch Wide Viewing Angle Colour TFT LCD The 4.3 inch colour TFT LCD provides almost 180 degree very wide viewing angle and displays high resolution characters and function icons. Even when the radio is installed to the instrument panel, the operator can clearly recognize the display information from various viewing angle. The night mode display ensures good readability in a dark place. Provides Loud, Clear Audio The GM600’s internal speaker enhances intelligibility of received calls. By adopting a new waterproof paper speaker cone, the speaker provides superior sound quality with a wide frequency range and a flat frequency response. In addition, the radio delivers powerful 10 W audio when connected to an external speaker. Intuitive User Interface A combination of the directional keypad and soft keys provides simple operation. The main 12 functions are assigned to soft keys (at the bottom of the display) and toggled with the left and right keys. The clearly labelled keypad provides straightforward entry. The CH16 button offers one-touch access to the CH16. DC-DC Converter PS-310 The optional DC-DC converter PS-310 supplies a stable 12.6 V of power to the GM600 from either a 12 V or 24 V power source (depending on version) and provides a floating ground connection. The PS-310 protects the radio from momentary power interruption. The PS-310 must be used with the GM600 for MED certification compliance Spesifikasi Frequency range TX 156.025–161.600 MHz RX 156.025–162.000 MHz DSC 156.525 MHz Usable channels INT channels Type of emission 16K0G3E (FM), 16K0G2B (DSC) Power supply requirements GM600 13.8 V DC PS-310 #01 input voltage 24 V DC (21.6–31.2 V) PS-310 #02 input voltage 12 V DC (10.8–15.6 V) Current drain (with PS-310 #01) TX 25 W output 3.3 A (approx.) RX Max. audio 2.0 A (approx.) Operating temperature range –15°C to 55°C Antenna impedance 50 Ω (SO-239) Weight (approx.) GM600 1600 g PS-310 930 g Dimensions (W×H×D) (Projections not included) 274×114×121.5 mm IEC 61162-1 in/out format Input RMC, GGA, GNS, GLL, VTG Output DSC, DSE
