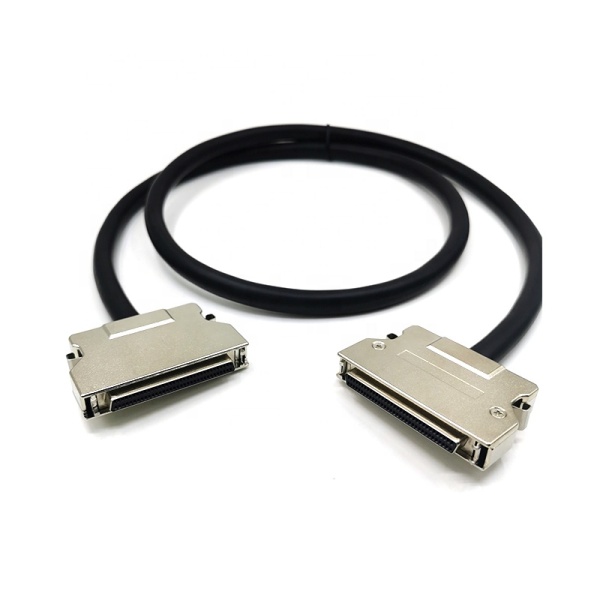

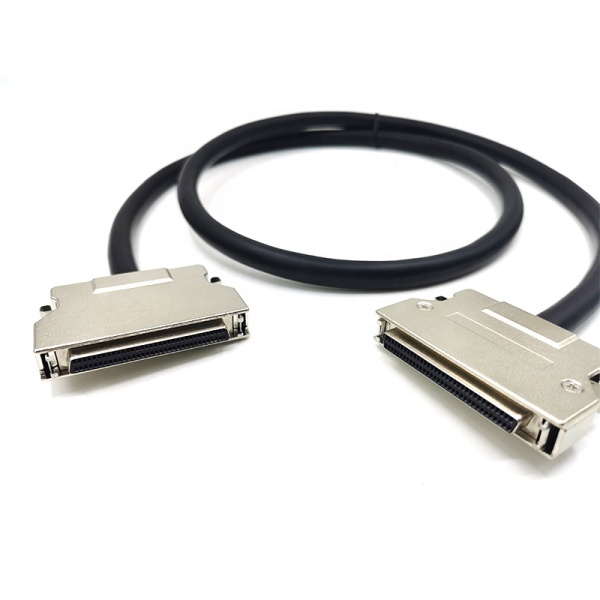

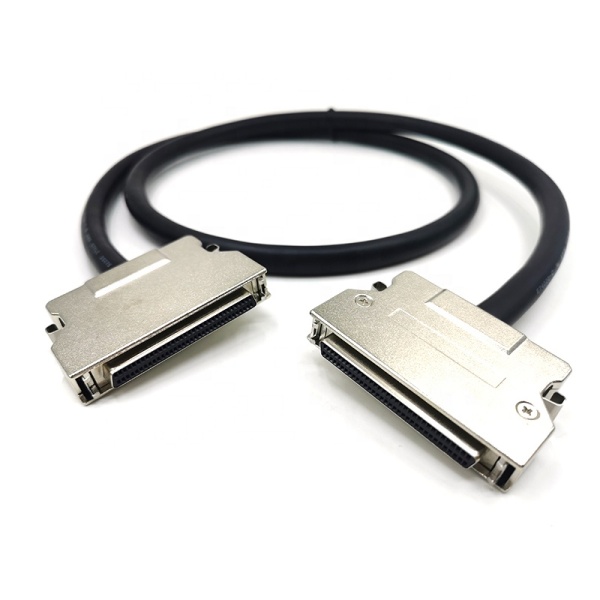

HPDB 68 pin female to female SCSI Cable Starte HPDB 68 pin female to female SCSI Cable with latch clip. This High Density 68 ways female to female SCSI Cable features a HPDB 68 pin female connector with latch clip on each side. Made with 34 Pairs SCSI Shielded wire. Used to extend the cable length between two SCSI devices, compatible with 68-pin Half-Pitch DSUB breakout boards. Product Parameters of HD68 female to DB68 female SCSI-III Cable: Item HPDB 68 pin female to female SCSI Cable Brand Starte Model No. CSCF020 Cable Type 68 Pin SCSI cable No. Of Contact 68 pin Connector type IDC type with metal Hood and Latch Clip Connector 1 HPDB 68 pin female SCSI connector Connector 2 HD 68 pin female SCSI connector Fastener Type Latch Clip Mould or Assembly Assembly Wire UL2990 28AWG*34Pairs Braid Al-foil Drain Wire, Bare copper Color Black Jacket PVC MOQ 100 pieces Sample Free Package PE bags Warranty Two years OEM Support Specification of Half-Pitch DSUB 68 female to female SCSI Cable: 1)Connector: HPDB 68 pin female SCSI-3 connector 2)Wire: UL2990 28AWG*34 Pairs Al-foil Braid Drain Wire, Bare Copper 3)Latch Clip secure the cable to the mating connector 4)Rated for all SCSI speeds from HVD-Ultra 320. Application of HPDB 68 extension SCSI Cable with Latch Clip: This HPDB 68 pin female to female SCSI Cable can be used to extend the cable length between two SCSI devices, compatible with 68-pin Half-Pitch DSUB breakout boards.
