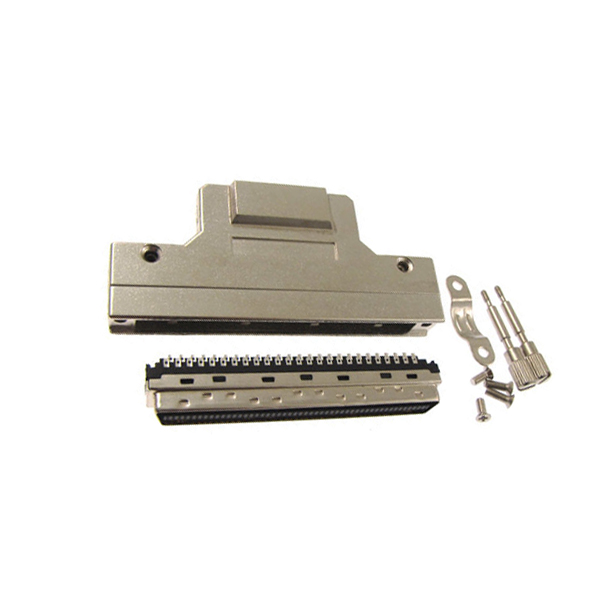

Solder Type SCSI MDR 100 pin Cable Connector with screw

Description : Starte Solder Type SCSI MDR 100 pin Cable Connector with screw, the connector pin arrangement in two rows, one on top of the other. The top row has 50 pins and the lower row has 50 pins. Often used on the cable for connecting servo driver. Solder Type SCSI MDR 100 pin Cable Connector with screw Item Solder Type SCSI MDR 100 pin Cable Connector with screw Brand Starte Precision Electronics Co., Ltd No. Of Contact 100 pin Contact Type 1.27mm cable receptacles Connector solder type Options Male, Screw,Assembly Wire 28AWG or 30AWG support Contact Finishes Gold Selective Plating   Materials of SCSI MDR 100 pin Cable Connector with screw: Housing: Plastic Thermoplastic P.B.T UL94V-0, Black Contacts: Copper Alloy Gold Selective Plated Front Shell: Steel, Nickel Plated Over Copper   Materials of SCSI MDR 100 pin Cable Connector Hood: Back shell: Zinc Alloy, Nickel Plated Over Copper Jack screws:Steel, Nickel Plated Over Copper Flat Screws: Steel, Nickel Plated Over Copper Cable Clipper: Steel, Nickel Plated Over Copper   Electrical Characteristics of SCSI MDR 100 pin Cable Connector with screw： Contact Current Rating: 1.0 Amp Dielectric Withstanding Voltage: 500V AC Insulation Resistance: 500MΩ/ Min Contact Resistance: 35mΩ /Max Operation Temperature:-55°C~ 105°C   Application: 1)motion controller, PCIx card 2)Servers machines and Drive enclosures equipments, 3)Mass storage machines,PCs and Macs and more peripherals 4)RAIDs,CD ROM,File Server 5)Networking Equipments
