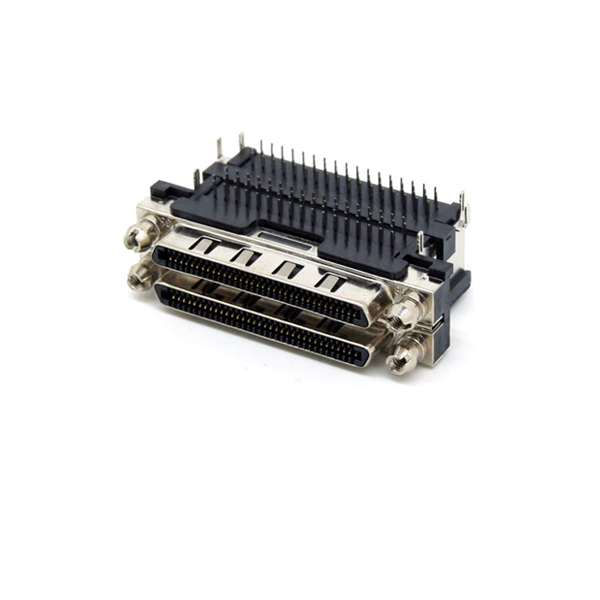

90 Degree Dual VHDCI 68 pin SCSI Jack PCB Connector
$22.45
$43.1
Description : Starte 90 Degree Dual VHDCI 68 pin SCSI Jack PCB Connector, the high density VHDCI 68 SCSI 5 headers right angle mount type connector pin arrangement in two rows, one on top of the other. The top row has 34 pins and the lower row has 34 pins. Often used on the Industrial equipment PCB. 68P Dual 90 Degree Vhdci 0.8mm SCSI Jack PCB Connetcor Item 90 Degree Dual VHDCI 68 pin SCSI Jack PCB Connector Brand Starte Precision Electronics Co., Ltd No. Of Contact 68 pin Contact Type 0.80mm cable receptacles headers right angle mount type Options Female, screw Bracket Threaded Finishes M2.0 screw Contact Finishes Gold Selective Plating Materials of 90 Degree Dual VHDCI 68 pin SCSI Jack PCB Connector: Housing: Plastic Thermoplastic PA66 P.B.T UL94V-0, Black Contacts: Copper Alloy Gold Selective Plated Front Shell: Steel, Nickel Plated Over Copper Board Lock: Copper Alloy Gold Selective Plated Cover: Plastic Thermoplastic P.B.T UL94V-0, Black Electrical Characteristics of 90 Degree Dual VHDCI 68 pin SCSI Jack PCB Connector： Contact Current Rating: 1.0 Amp Dielectric Withstanding Voltage: 500V AC Insulation Resistance: 500MΩ/ Min Contact Resistance: 35mΩ /Max Operation Temperature:-55°C~ 105°C Application: 1)motion controller, PCIx card 2)Servers machines and Drive enclosures equipments, 3)Mass storage machines,PCs and Macs and more peripherals 4)RAIDs,CD ROM,File Server board 5)Networking Equipments board 6)Small computer and intelligent peripherals,printers,hard disks,CD ROM drivers
