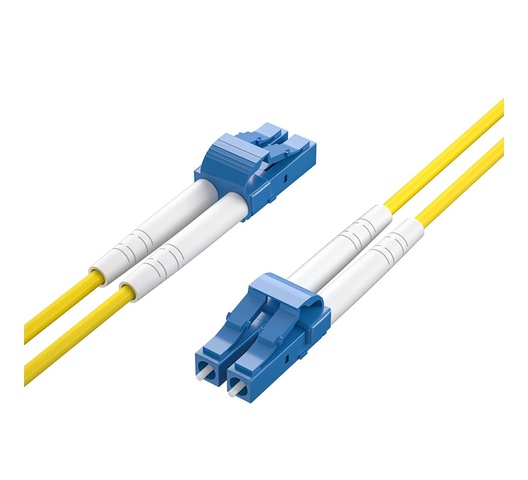

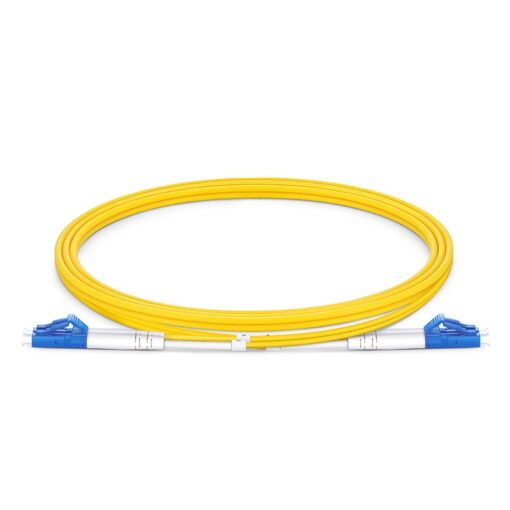

LC-LC OM2 Duplex UPC 1m Fiber Optic Patch Cable

4.83 out of 5

|Add a review

$ 7.65

Description LC-LC OM2 Duplex UPC 1m Fiber Optic Patch Cable: Comprehensive Product Overview Overview The LC-LC OM2 Duplex UPC 1m Fiber Optic Patch Cable is a meticulously designed and precision-manufactured solution tailored for short-distance, high-bandwidth data transfer applications. Built to meet the evolving needs of modern enterprise and telecommunications infrastructure, this 1-meter duplex multimode fiber patch cable delivers reliable, high-performance connectivity. With LC (Lucent Connector) connectors on both ends and ultra-physical contact (UPC) polish, this cable is intended to provide a secure, low-loss interface for mission-critical networking environments. Short-distance LC-LC OM2 Duplex UPC 1m Fiber Optic Patch Cable like this one play a pivotal role in structured cabling systems, especially in data centers, enterprise wiring closets, and communication rooms where efficient device-to-device links are required. The OM2 multimode fiber used in this patch cable supports data transmission rates up to 10Gbps over short distances and is ideally suited for 10G Ethernet, Fibre Channel, and other high-throughput systems. Key Features & Construction Connector Type: LC male to LC male Fiber Type: OM2 (50/125µm) Multimode Polish Type: UPC (Ultra Physical Contact) Cable Jacket: OFNR-rated PVC (Riser) Jacket Color: Standardized orange (industry-accepted for OM2) Cable Diameter: 2.0mm, compact and easy to manage Length: Precisely 1 meter — ideal for equipment within close range Duplex Design: Enables simultaneous bidirectional transmission Each LC-LC OM2 Duplex UPC 1m Fiber Optic Patch Cable connector is equipped with a precision zirconia ceramic ferrule that enhances alignment accuracy and reduces signal insertion loss. The Ultra Physical Contact (UPC) polish ensures excellent end-face geometry, minimizing reflectance and optimizing return loss. Technical Specifications Insertion Loss: ≤ 0.3 dB (typical), low-loss for multimode links Return Loss: ≥ 20 dB (UPC) Attenuation at 850nm: ≤ 3.0 dB/km Attenuation at 1300nm: ≤ 1.0 dB/km Minimum Bend Radius (Unloaded): 7.5 mm Tensile Strength: ≥ 50 N (installation) Operating Temperature: -20°C to 70°C Storage Temperature: -40°C to 85°C Fire Rating: OFNR (riser rated) for vertical installations in building risers Standards: Compliant with RoHS, Telcordia GR-326-CORE, and IEC 61754-20 Applications in Real-World Environments Data CentersThis LC-LC OM2 Duplex UPC 1m Fiber Optic Patch Cable is widely used for connecting servers, switches, and storage appliances. Its short length is perfect for intra-rack or inter-rack connections in high-density data center environments, where cable clutter must be minimized. Telecommunication InfrastructureTelecom service providers use OM2 cables to interconnect equipment that handles broadband internet, fiber backhaul, and 4G/5G mobile services. Enterprise LANsWhether it’s for connecting backbone switches or linking patch panels, this LC-LC OM2 Duplex UPC 1m Fiber Optic Patch Cable offers the right balance of performance and reliability for LAN installations in corporate, campus, or governmental facilities. FTTH & FTTx InstallationsIn fiber-to-the-home and related deployments, short OM2 patch cords help bridge optical network terminals (ONTs) and home gateway devices. Testing & Lab UseThe 1-meter length and reliable UPC polish make it ideal for loopback testing, lab diagnostics, and temporary test setups where consistent results matter. Benefits of OM2 Multimode Fiber OM2 is part of the multimode fiber family categorized by ISO/IEC 11801 standards. Though it is optimized for legacy 10/100/1000 Ethernet systems, it supports 10G Ethernet up to 82–150 meters depending on device compatibility. OM2 fiber has a 50µm core and a 125µm cladding, providing an optimal balance of bandwidth and cost for applications that do not require OM3/OM4/OM5 performance. Why UPC polish matters: LC-LC OM2 Duplex UPC 1m Fiber Optic Patch Cable connectors undergo extra polishing to reduce back reflection (return loss) significantly. This enhances signal quality in high-density patching environments where multiple reflections can otherwise accumulate. Installation & Handling Guidelines Avoid Sharp Bends: Always maintain a bend radius of ≥7.5mm during installation to prevent micro-bending losses. Keep Clean Connectors: Use proper fiber cleaning tools before each insertion. Dust and debris can degrade signal performance. Secure Strain Relief: Never exceed the tensile strength limit of 50 Newtons during pulling or routing. Color Coordination: Orange jacket simplifies visual identification during installation among other fiber types (e.g., aqua for OM3, yellow for SM). Reliability & Quality Testing All LC-LC OM2 Duplex UPC 1m Fiber Optic Patch Cable are manufactured under strict quality control processes and are individually tested for: Insertion Loss Return Loss End-face Geometry Ferrule Radius and Apex Offset This guarantees optimal network performance and longevity, even under demanding conditions. The product adheres to international testing standards including IEC and Telcordia specifications for fiber optic interconnect components. Why Choose This Cable Performance: Industry-standard OM2 cable offering gigabit-class performance over short distances. Affordability: Cost-effective solution for small-scale networks or budget-sensitive applications. Compatibility: Works with all LC-based multimode fiber networks. Safety: Flame-retardant jacket meets building code requirements for riser spaces Conclusion The LC-LC OM2 Duplex UPC 1m Fiber Optic Patch Cable is the ideal solution for short-range, high-bandwidth applications in structured cabling environments. Whether in a corporate data center, telecom facility, or a test lab, this cable delivers on reliability, durability, and signal performance. Its UPC-polished LC connectors, low insertion loss, and precision manufacturing ensure that your network operates smoothly and efficiently. By choosing this LC-LC OM2 Duplex UPC 1m Fiber Optic Patch Cable, you are investing in a future-proofed infrastructure component that simplifies your fiber optic installations without compromising on performance or compliance. Product Purchase Links Optcore LC-LC OM2 Duplex UPC 1m Cable Fiber-MART OM2 LC-LC 1M Patch Cord Internal Link �� Radox Technology Limited – Fiber Optic Solutions
