IDC type 0.8mm pitch VHDCI 36 pin male Connector

4.83 out of 5

|Add a review

$ 15.36

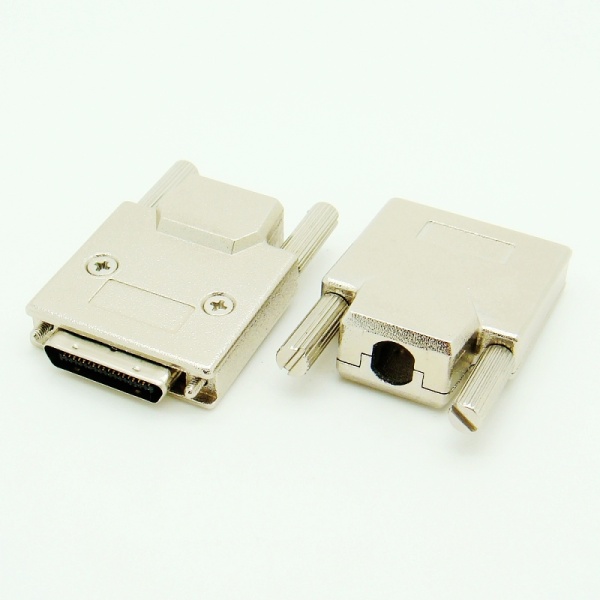

IDC type 0.8mm pitch VHDCI 36 pin male Connector Starte IDC type 0.8mm pitch VHDCI 36 pin male Connector. This 0.8mm VHDCI 36P male crimp Connector with metal hood pin arrangement is in two rows, each row has 18 pins. It is used on the Industrial equipment PCB or PCI break out board with VHDCI 36 pin female connector. Product Parameters of 0.8mm VHDCI 36 pin male crimp Connector: Item IDC type 0.8mm pitch VHDCI 36 pin male Connector Brand Starte Product type SCSI connector No. Of Contact 36 pin Contact Type VHDCI 36 pin connector Options Screw Threaded Finishes M2.6 Contact Finishes Gold Selective Plating MOQ 1 PCS Sample Free Package Bags Warranty Two years Technical Parameters of 36 pin VHDCI male Connector with screw: Connector Material Housing Plastic Thermoplastic P.B.T UL94V-0, Black Contacts Copper Alloy Gold Selective Plated Front Shell Steel, Nickel Plated Over Copper Screw Zinc Alloy, Nickel Plated Over Copper Electrical Characteristics Contact Current Rating 0.5 Amp Dielectric Withstanding Voltage 150V AC Insulation Resistance 500MΩ/ Min Contact Resistance 35mΩ /Max Operation Temperature -55°C~ 85°C Application of 36 pin VHDCI male Connector with metal Cover: This IDC type 0.8mm pitch VHDCI 36 pin male Connector is 0.8mm pitch serial SCSI Connector, it is used on the Industrial equipment PCB or PCI break out board with VHDCI 36 pin female connector.
