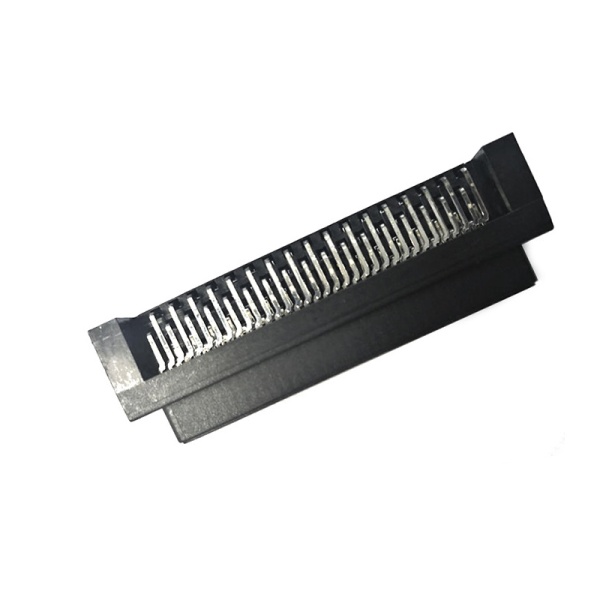

Right angle Mount DB68 female SCSI Connector Starte Right angle Mount DB68 female SCSI Connector, Header right angle mount. This 90 degree HD68 pin Receptacles headers Connector is usually used on the Industrial equipment PCB. Such as SCSI hard drive, Parallel printer, Motion Controller with SCSI interface. Product Parameters of 90 degree HD68 female PCB SCSI Connector: Item Right angle Mount DB68 female SCSI Connector Brand Starte Model No. SCCF014 Product type Right Angle Mount PCB 68 Pin SCSI Connector No. Of Contact 50 pin Contact Type Female, header right-angle mount type PCB Layout Standard Contact Finishes Gold Selective Plating MOQ 1 PCS Sample Free Package Bags Warranty Two years Technical Parameters of Right Angle 68 Pos Female SCSI PCB Connector: Connector Material Housing Plastic Thermoplastic P.B.T UL94V-0, Black Contacts Copper Alloy Gold Selective Plated Board Lock Copper Tin Plated Over Copper Electrical Characterisitics Contact Current Rating 1.0 Amp Dielectric Withstanding Voltage 500V AC Insulation Resistance ≥500MΩ/ Min Contact Resistance 35mΩ /Max Operation Temperature -55°C~ 105°C Application of Right Angle Mount HD68 Female SCSI PCB Connector: This Right angle Mount DB68 female SCSI Connector is usually used on the Industrial equipment PCB, such as SCSI hard drive, Parallel printer with SCSI connector, Motion Controller with SCSI interface.
