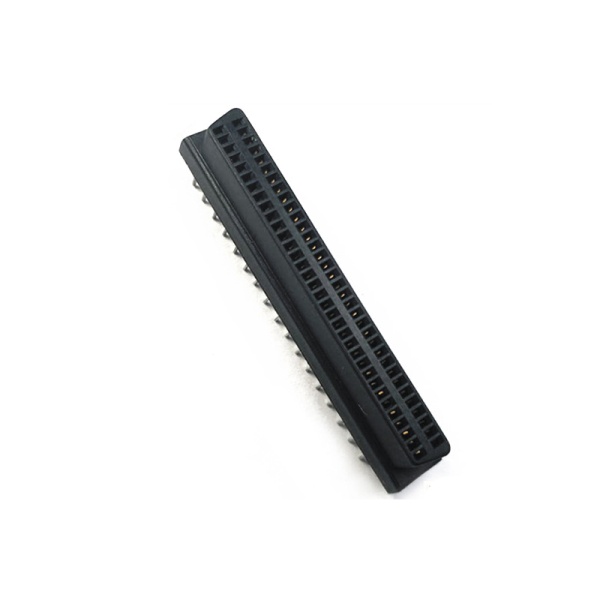

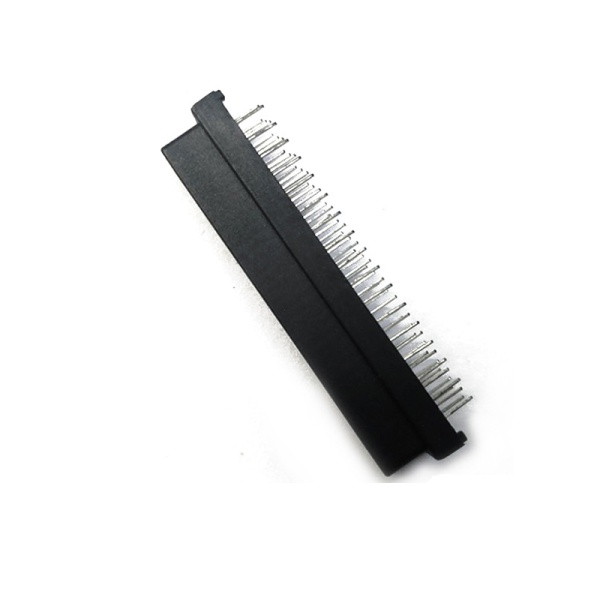

Receptacles vertical mount HD68 pos female SCSI Connector

Receptacles vertical mount HD68 pos female SCSI Connector Starte Receptacles vertical mount HD68 pos female SCSI Connector. This Receptacles vertical mount HD68 pos female SCSI Connector is usually used on the Industrial equipment PCB. Such as SCSI hard drive, Mass  storage  machines with SCSI connector, Drive enclosures Equipment with SCSI interface.   Product Parameters of Vertical mount DB68 female SCSI Connector: Item Receptacles vertical mount HD68 pos female SCSI Connector Brand Starte Model No. SCCF014 Product type Right Angle Mount PCB SCSI Connector No. Of Contact 50 pin Contact Type Female, header right-angle mount type PCB Layout Standard Contact Finishes Gold Selective Plating MOQ 1 PCS Sample Free Package Bags Warranty Two years   Technical Parameters of Vertical Mount HPDB 68 pin female PCB board Connector: Connector Material Housing Plastic Thermoplastic P.B.T UL94V-0, Black Contacts Copper Alloy Gold Selective Plated Electrical Characterisitics Contact Current Rating 1.0 Amp Dielectric Withstanding Voltage 500V AC Insulation Resistance ≥500MΩ/ Min Contact Resistance 35mΩ /Max Operation Temperature -55°C~ 105°C   Application of 180 degree HPDB 68 pin female SCSI Connector: This Receptacles vertical mount HD68 pos female SCSI Connector is usually used on the Industrial equipment PCB, such as SCSI hard drive, Mass storage machines with SCSI connector, Drive enclosures Equipment with SCSI interface.
