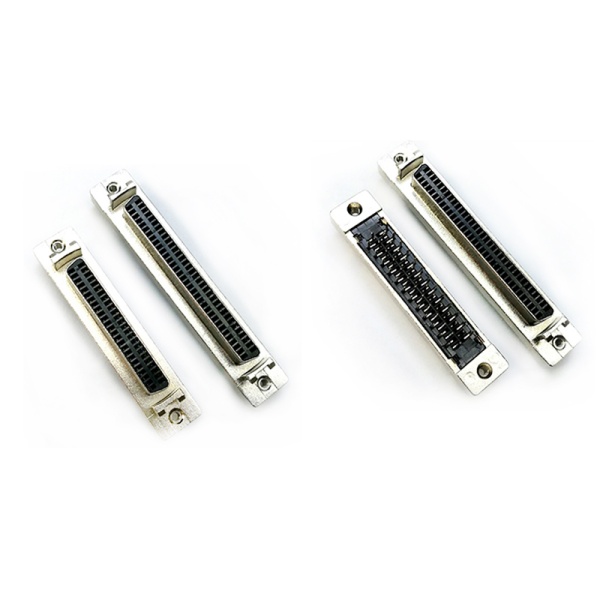

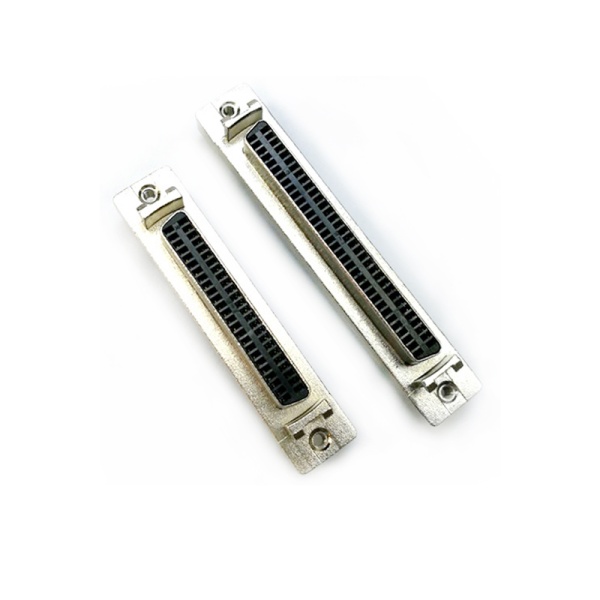

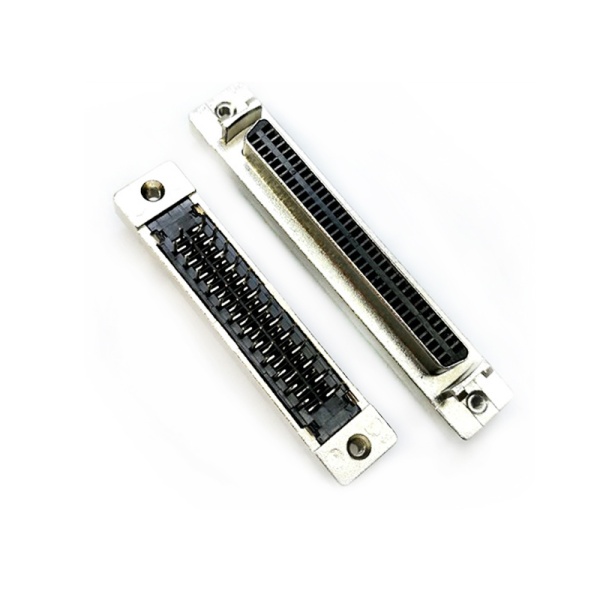

Latch Bracket HPDB 68 Pin Female SCSI Connector

Latch Bracket HPDB 68 Pin Female SCSI Connector Starte Latch Bracket HPDB 68 Pin Female SCSI Connector. The PCB Clip HD68 pin Receptacles SCSI Connector is always used on RAIDs,CD ROM. And File Server board with SCSI interface, other 16-bit Wide SCSI devices.   Product Parameters of P.C.B Clip HD68 female SCSI PCB Connector: Item Latch Bracket HPDB 68 Pin Female SCSI Connector Brand Starte Model No. SCCF016 Product type Receptacles Connector for P.C.B Clip Type No. Of Contact 68 pin Contact Type Female, P.C.B Clip Type Options female, latch bracket, screw PCB Layout Standard Threaded Finishes #2-56 Contact Finishes Gold Selective Plating MOQ 1 PCS Sample Free Package Bags Warranty Two years     Technical Parameters of HPDB68 pos Female PCB Clip SCSI Connector: Connector Material Housing Plastic Thermoplastic P.B.T UL94V-0, Black Contacts Copper Alloy Gold Selective Plated Front Shell Steel, Nickel Plated Over Copper Electrical Characterisitics Contact Current Rating 0.5 Amp Dielectric Withstanding Voltage 150V AC Insulation Resistance 500MΩ/ Min Contact Resistance 35mΩ /Max Operation Temperature -55°C~ 85°C   Application of DB68 female SCSI Connector with Latch Bracket: This Latch Bracket HPDB 68 Pin Female SCSI Connector  is always used on RAIDs,CD ROM, File Server board with SCSI interface, other 16-bit Wide SCSI devices.
