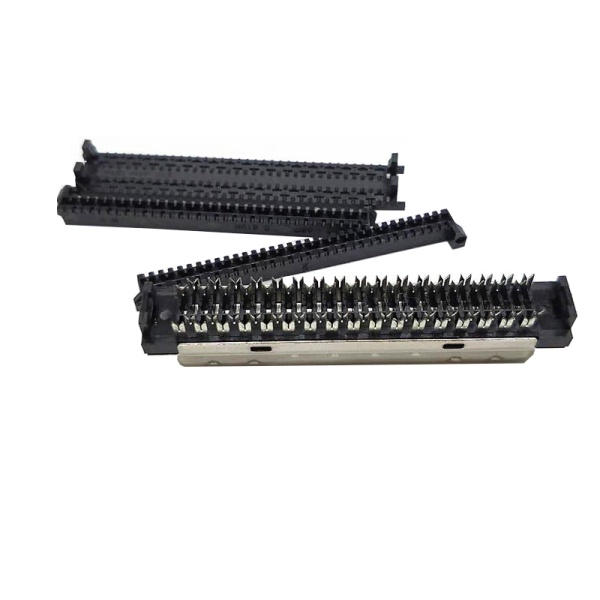

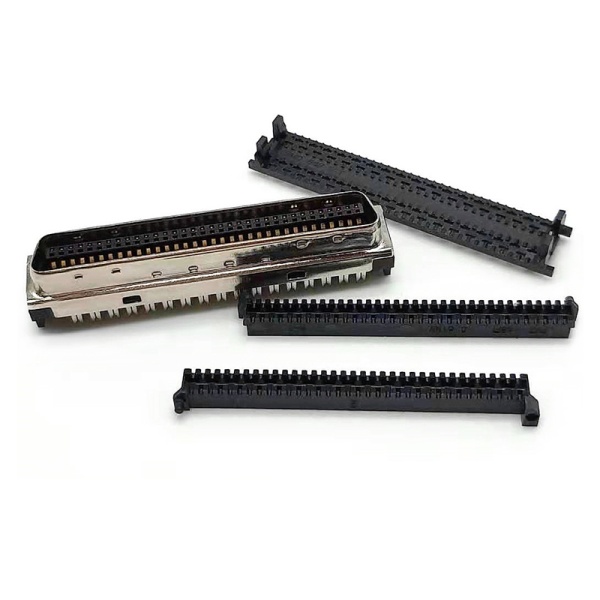

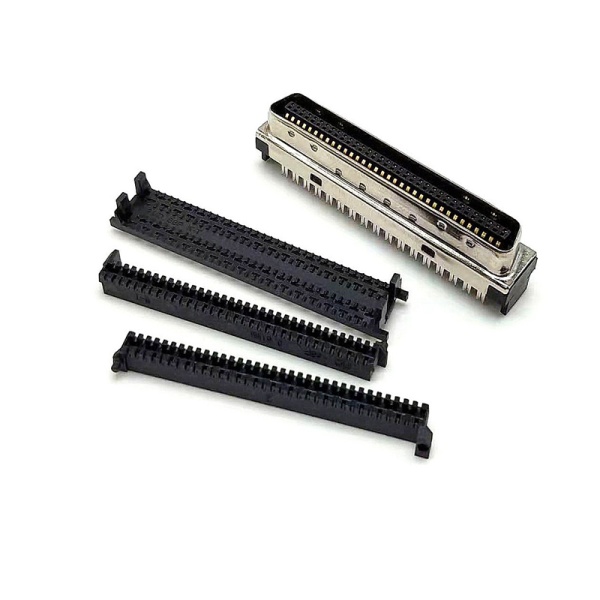

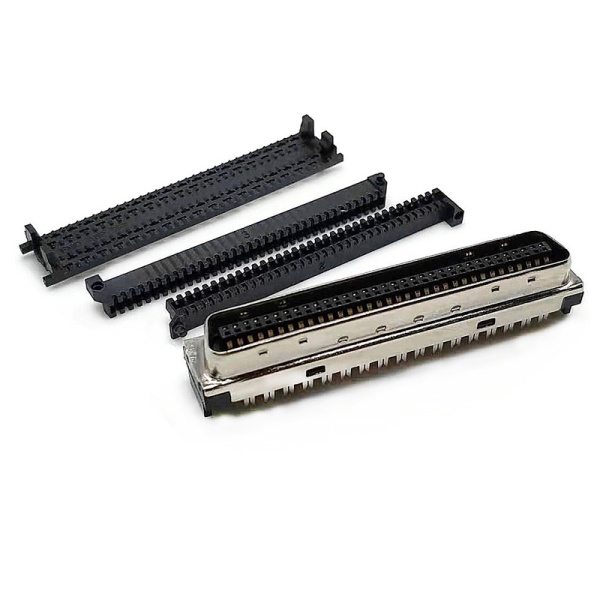

HPCN 68 Pin Male Straight IDC SCSI Connector Starte HPCN 68 Pin Male Straight IDC SCSI Connector. 1.27 spacing 68 positions IDC type SCSI Cable Connector is used to connect with SCSI 68 pin shielded wires. Then link with servo driver, SCSI Hard Driver, SCSI motion Controller and SCSI breakout Board. You can choose locked with Screw or Latch clip as your requirements. Starte provide Mould type CN68 pin SCSI cable with screw or Mould type CN68 pin SCSI cable with Latch clip for your options. Product Parameters of 0.50 Series HPCN 68 pin SCSI Ⅲ IDC Connector: Item HPCN 68 Pin Male Straight IDC SCSI Connector Brand Starte Model No. SCCF011 Product type 68 Pin SCSI Cable Connector No. Of Contact 68 pin Contact Type 1.27mm cable receptacles Connector idc type Options Male, for molding Wire 28AWG or 30AWG support Contact Finishes Gold Selective Plating MOQ 1 PCS Sample Free Package Bags Warranty Two years Technical Parameters of 1.27mm Crimp CN68 pin SCSI Cable Connector: Connector Material Housing Plastic Thermoplastic P.B.T UL94V-0, Black Contacts Copper Alloy Gold Selective Plated Front Shell Steel, Nickel Plated Over Copper Cover&Holder Plastic Thermoplastic P.B.T UL94V-0, Black Inner Shell Steel, Nickel Plated Over Copper Electrical Characterisitics Contact Current Rating 1.0 Amp Dielectric Withstanding Voltage 500V AC Insulation Resistance 500MΩ/ Min Contact Resistance 35mΩ /Max Operation Temperature -55°C~ 105°C Application of IDC type 1.27mm MDR68 Pin SCSI Cable Connector: This HPCN 68 Pin Male Straight IDC SCSI Connector is used to connect with standard SCSI 68 pin shielded wires. Then link with servo driver, SCSI Hard Driver, SCSI motion Controller and SCSI breakout Board.
