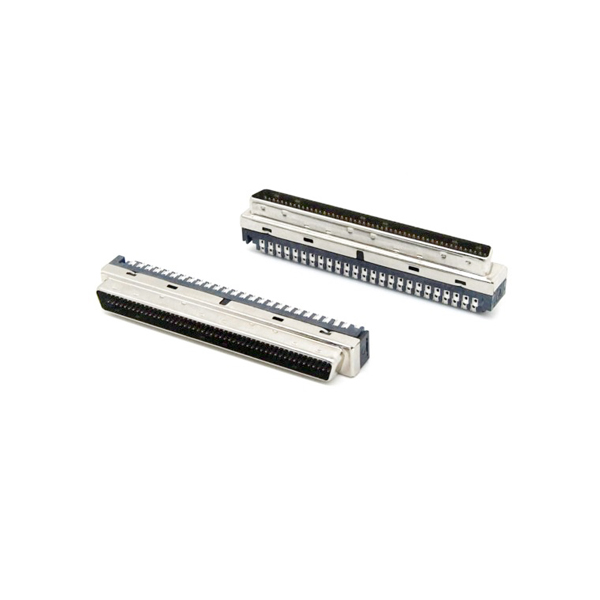

right angle DB 50 pin SCSI ii Connector with latch clip

Description : Starte right angle DB 50 pin SCSI ii  Connector with latch clip, the 90 degree angle SCSI 50 connector pin arrangement in two rows, one on top of the other. The top row has 25 pins and the lower row has 25 pins. Often used on the cable for connecting servo driver. right angle DB 50 pin SCSI ii Connector with latch clip Item  right angle DB 50 pin SCSI ii  Connector with latch clip Brand Starte Precision Electronics Co., Ltd No. Of Contact 50 pin Contact Type 1.27mm cable receptacles Connector solder type Options Male, latch clip ,Assembly Wire 28AWG or 30AWG support Contact Finishes Gold Selective Plating   Materials of  right angle DB 50 pin SCSI ii  Connector with latch clip: Housing: Plastic Thermoplastic P.B.T UL94V-0, Black Contacts: Copper Alloy Gold Selective Plated Front Shell: Steel, Nickel Plated Over Copper   Materials of  right angle DB 50 pin SCSI ii  Connector metal Hood: Hood: Plastic Thermoplastic P.B.T UL94V-0 Inner Shell: Steel, Nickel Plated Over Copper Latch & Hood: Stainless Steel & Plastic ABS UL94V-0 Entry Hood: Plastic ABS UL94V-0   Electrical Characteristics of  right angle DB 50 pin SCSI ii  Connector with latch clip： Contact Current Rating: 1.0 Amp Dielectric Withstanding Voltage: 500V AC Insulation Resistance: 500MΩ/ Min Contact Resistance: 35mΩ /Max Operation Temperature:-55°C~ 105°C   Application: 1)motion controller, PCIx card 2)Servers machines and Drive enclosures equipments, 3)Mass storage machines,PCs and Macs and more peripherals 4)RAIDs,CD ROM,File Server 5)Networking Equipments
