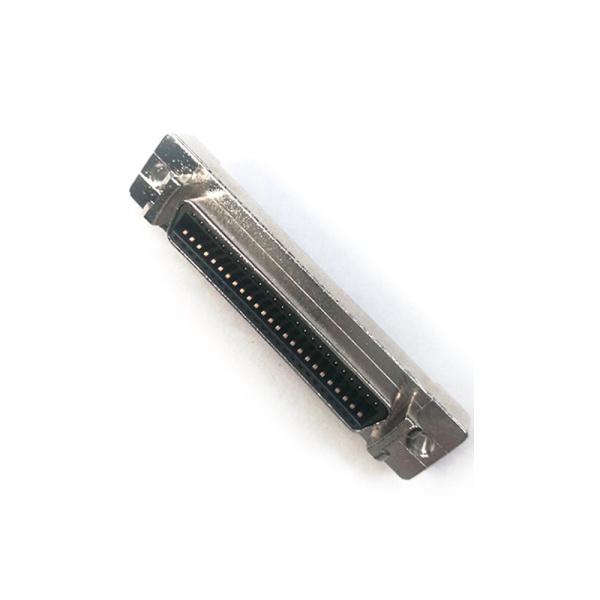

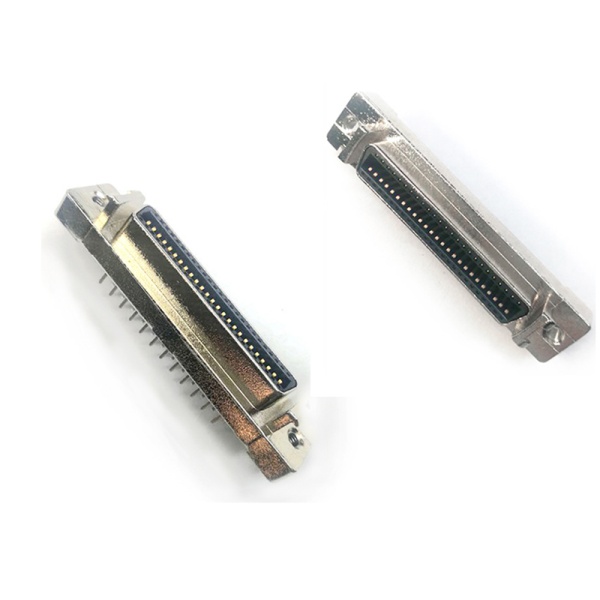

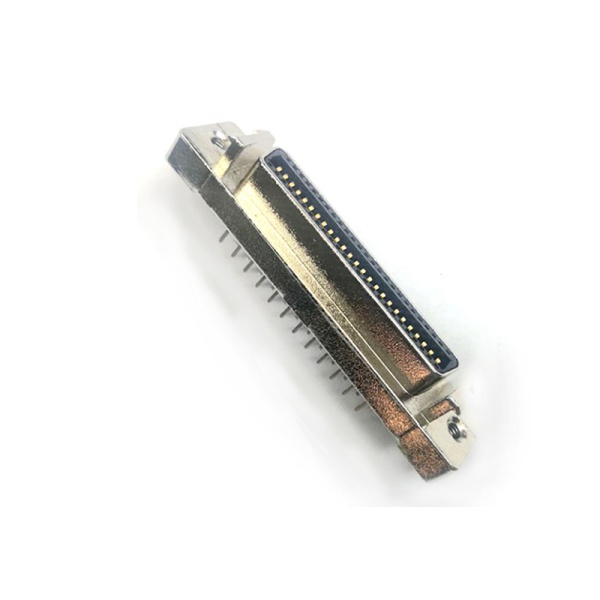

Vertical Mount MDR socket 50 Female SCSI Connector

Vertical Mount MDR socket 50 Female SCSI Connector Starte Vertical Mount MDR socket 50 Female SCSI Connector with latch clip. Receptacles Headers Vertical Mount type. This 1.27 pitch MDR 50 pin female vertical mount Connector has copper alloy contact with 5-micro-inch minimum gold wiping area, nickel under-plate plating and glass reinforced polyester insulation. Often used on Mass storage machines,Servers machines and Drive enclosures equipments.   Product Parameters of Receptacles headers CN50 pin female PCB Connector: Item Vertical Mount MDR socket 50 Female SCSI Connector Brand Starte Model No. SCCE032 Product type 50 Pin SCSI Connector No. Of Contact 50 pin Contact Type 1.27mm Receptacles Headers Vertical Mount type connector Options Latch Bracket Threaded Finishes M2.6 Contact Finishes Gold Selective Plating MOQ 1 PCS Sample Free Package Bags Warranty Two years     Technical Parameters of Vertical MDR 50 Pin Female PCB SCSI Connector with latch clip: Connector Material Housing Plastic Thermoplastic P.B.T UL94V-0, Black Contacts Copper Alloy Gold Selective Plated Bracket Zinc Alloy, Nickel Plated Over Copper Electrical Characterisitics Contact Current Rating 0.5 Amp Dielectric Withstanding Voltage 150V AC Insulation Resistance 500MΩ/ Min Contact Resistance 35mΩ /Max Operation Temperature -55°C~ 85°C   Application of 0.05 inch Mini D Ribbon HPCN 50 pin female Connector : This Vertical Mount MDR socket 50 Female SCSI Connector is often used on mass storage machines, servers machines and Drive enclosures equipments.
