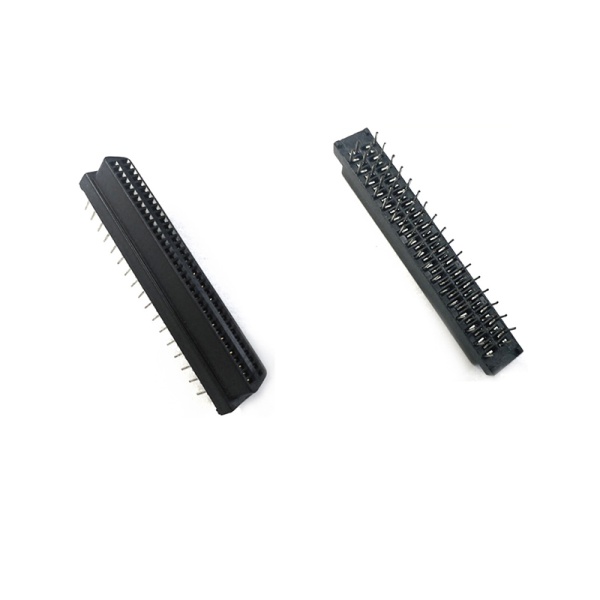

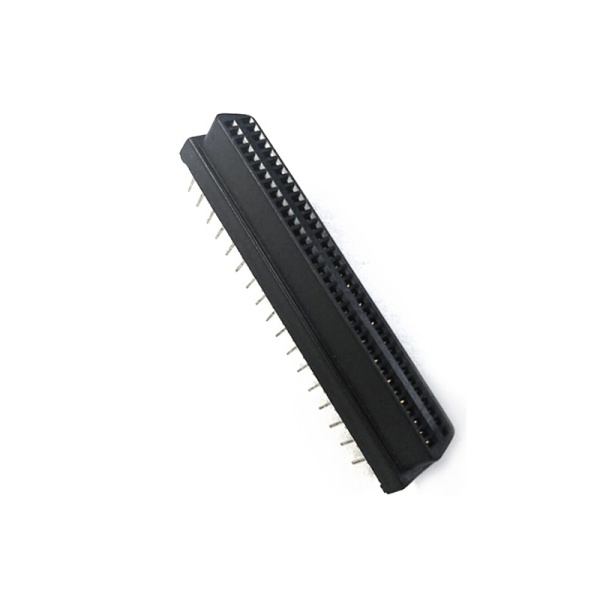

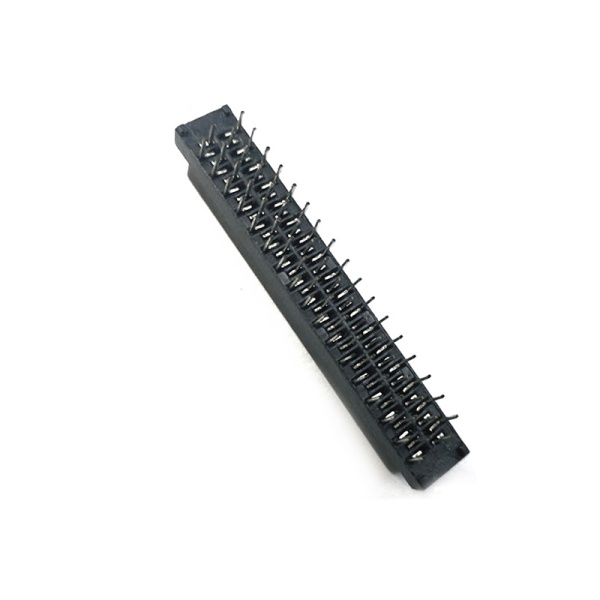

Vertical Mount HD50 pin Female PCB Connector

4.83 out of 5
$ 30.66
Vertical Mount HD50 pin Female PCB Connector Starte Vertical Mount HD50 pin Female PCB Connector. This Receptacles Header PCB D-sub 50 Pin Female Connector pin arrangement has two rows, each row has 34 pins. It is usually used on the Industrial equipment PCB and SCSI devices. Such as SCSI servo, SCSI PCI card and motion controller.   Product Parameters of Receptacles Header Vertical Mount 50 pin Female SCSI Connector: Item Vertical Mount HD50 pin Female PCB Connector Brand Starte Model No. SCCE031 Product type 50 Pin SCSI Connector No. Of Contact 50 pin Contact Type Female, Vertical Mount, Receptacles Header Contact Finishes Gold Selective Plating Pin Layout Standard MOQ 1 PCS Sample Free Package Bags Warranty Two years     Technical Parameters of PCB Socket 1.27mm Pitch 50 Pin SCSI Connector: Connector Material Housing Plastic Thermoplastic Nylon PA9T UL94V-0, Black Contacts Copper Alloy Gold Selective Plated Electrical Characterisitics Contact Current Rating 0.5 Amp Dielectric Withstanding Voltage 150V AC Insulation Resistance 500MΩ/ Min Contact Resistance 35mΩ /Max Operation Temperature -55°C~ 85°C   Application of HPDB 50 pin Servo driver SCSI PCB Connector: This Vertical Mount HD50 pin Female PCB Connector is usually used on SCSI RAIDs,CD ROM,File Server board and SCSI breakout Board, SCSI line tester.
