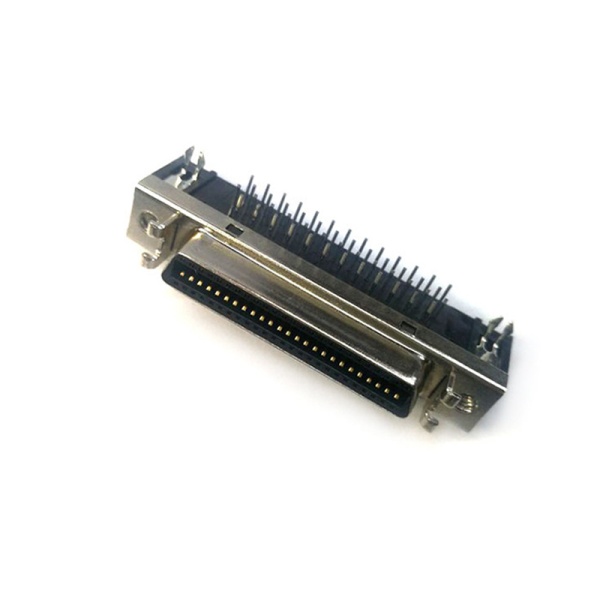

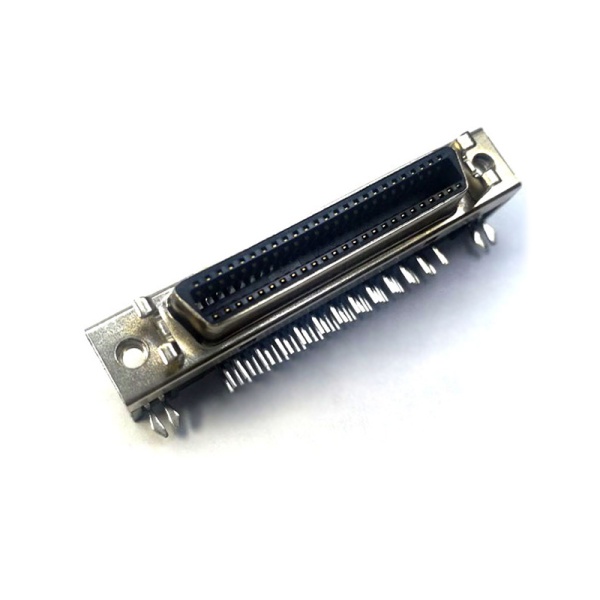

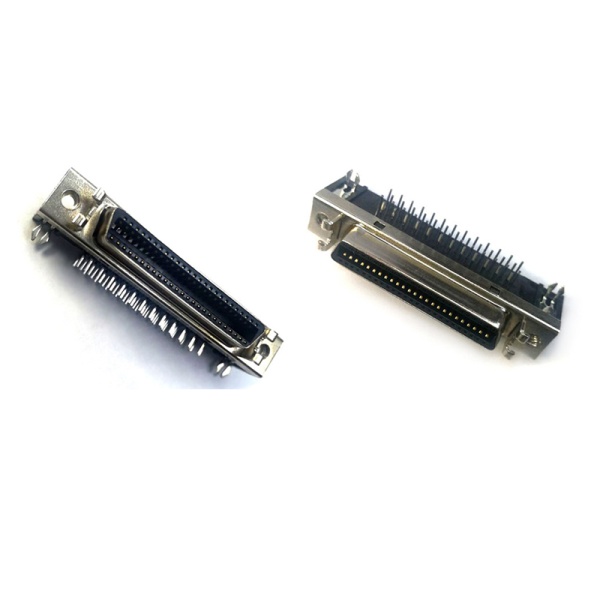

Slot type angle HPCN 50 pin female servo driver Connector

4.83 out of 5

|Add a review

$ 21.39

Slot type angle HPCN 50 pin female servo driver Connector Starte Slot type angle HPCN 50 pin female servo driver Connector with Latch Bracket on PCB. The Right Angle 90 Degree DIP MDR50 pin Female Connector is commonly used on Servo Driver. Compatible with Motion Controller, Mini Delta Ribbon (MDR) 50-Pin Dual Breakout Board and related Hard Disk. Product Parameters of Right Angle MDR 50 pin SCSI CN female Connector: Item Slot type angle HPCN 50 pin female servo driver Connector Brand Starte Model No. SCCE033 Product type 50 Pin SCSI Connector No. Of Contact 50 pin Contact Type Female, receptacles header right-angle mount type Options Latch Bracket Threaded Finishes M2.0 Contact Finishes Gold Selective Plating Pin Layout Standard MOQ 1 PCS Sample Free Package Bags Warranty Two years Technical Parameters of 90 degree MDR socket 50 Female solder PCB Connector: Connector Material Housing Plastic Thermoplastic Nylon PA9T UL94V-0, Black Contacts Copper Alloy Gold Selective Plated Front Shell Steel, Nickel Plated Over Copper Cover Plastic Thermoplastic Nylon PA9T UL94V-0, Black Board Lock Copper Tin Plated Over Copper Electrical Characterisitics Contact Current Rating 0.5 Amp Dielectric Withstanding Voltage 150V AC Insulation Resistance 500MΩ/ Min Contact Resistance 35mΩ /Max Operation Temperature -55°C~ 85°C Application of 90 degree HPCN 50 pin Female PCB Connector: This Slot type angle HPCN 50 pin female servo driver Connector is commonly used on Servo Driver, Motion Controller, Mini Delta Ribbon (MDR) 50-Pin Dual Breakout Board and related Hard Disk.
