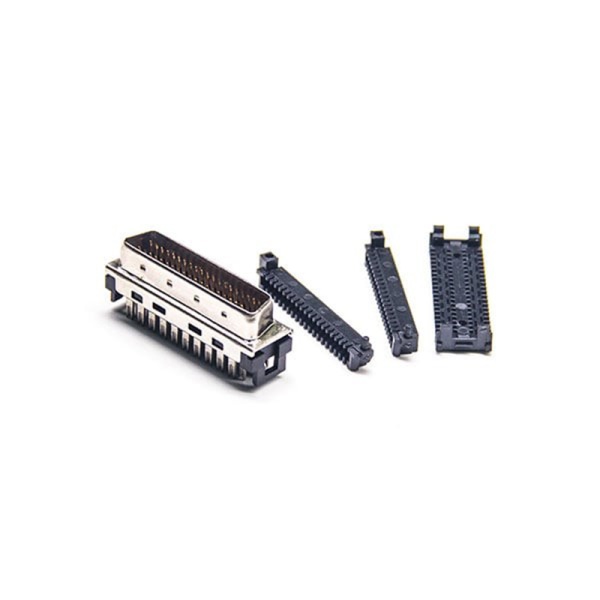

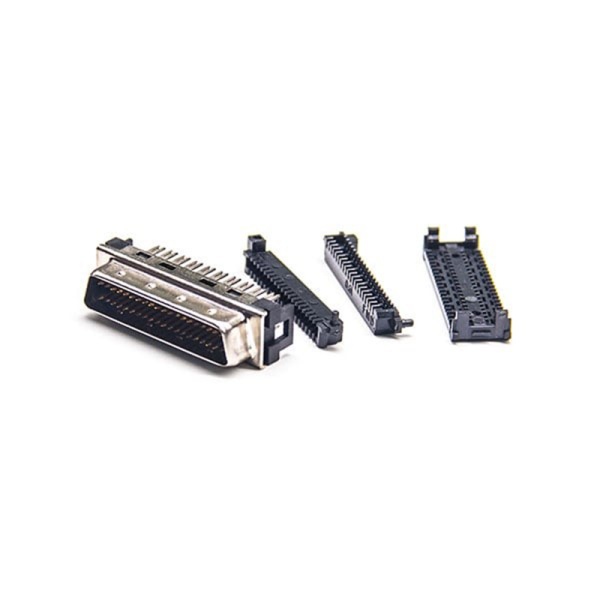

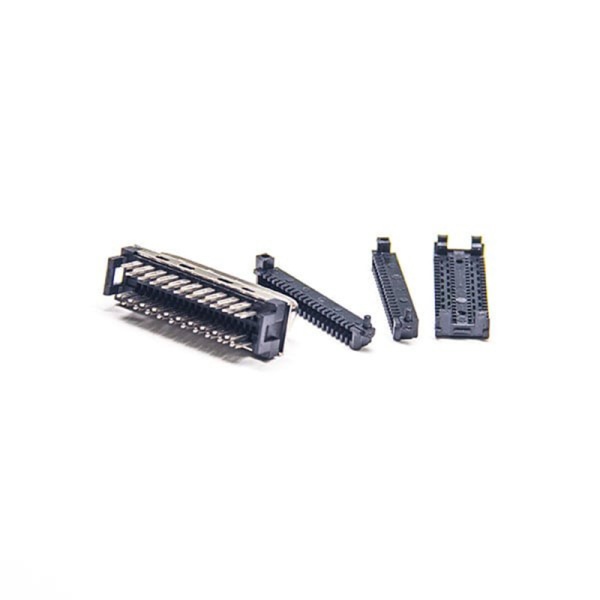

SCSI 36 Position crimp plug Connector Starte SCSI 36 Position crimp plug Connector. This Micro D-sub 36 pin IDC SCSI Connector pin is arranged in two rows, each row has 18 pin contacts. This MD36 pin plug connector is usually used with standard SCSI 36 ways shielded wire (UL2990 28AWG*18 Pairs Al-foil Drain Wire Braid). Then connect servo driver and PCI-X which equipped with HD36 pin female connector. Product Parameters of SCSI HPDB 36 pin male Connector: Item SCSI 36 Position crimp plug Connector Brand Starte Product type 36 Pin SCSI Connector No. Of Contact 36 pin Contact Type IDC type 1.27mm cable receptacles Connector Options Male, for Molding or Assembly Wire UL2990 28AWG*18 Pairs Al-foil Drain Wire Braid Contact Finishes Gold Selective Plating MOQ 1 PCS Sample Free Package Bags Warranty Two years Technical Parameters of IDC type HD36 pin SCSI Plug Connector: Connector Material Housing Plastic Thermoplastic P.B.T UL94V-0, Black Contacts Copper Alloy Gold Selective Plated Front Shell Steel, Nickel Plated Over Copper Cover&Holder Plastic Thermoplastic P.B.T UL94V-0, Black Inner Shell Steel, Nickel Plated Over Copper Electrical Characterisitics Contact Current Rating 1.0 Amp Dielectric Withstanding Voltage 500V AC Insulation Resistance 500MΩ/ Min Contact Resistance 35mΩ /Max Operation Temperature -55°C~ 105°C Application of IDC HPDB DB36 Pin SCSI Cable Connector: This SCSI 36 Position crimp plug Connector is usually used with standard SCSI 36 ways shielded wire (UL2990 28AWG*18 Pairs Al-foil Drain Wire Braid). Then connect servo driver and PCI-X which equipped with HD36 pin female connector.
