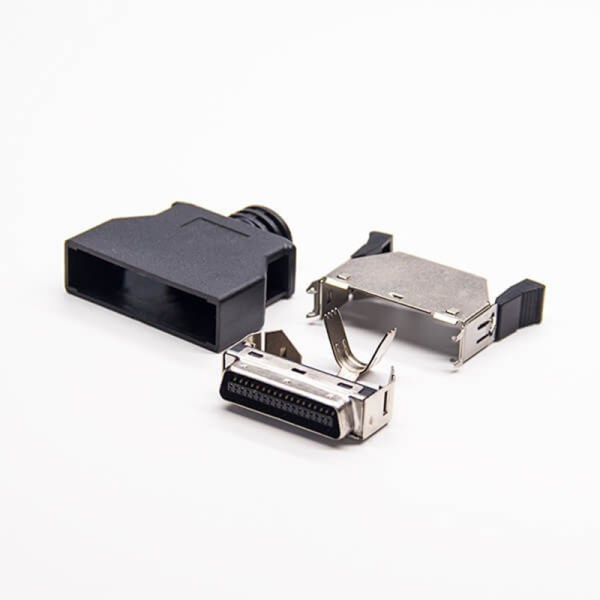

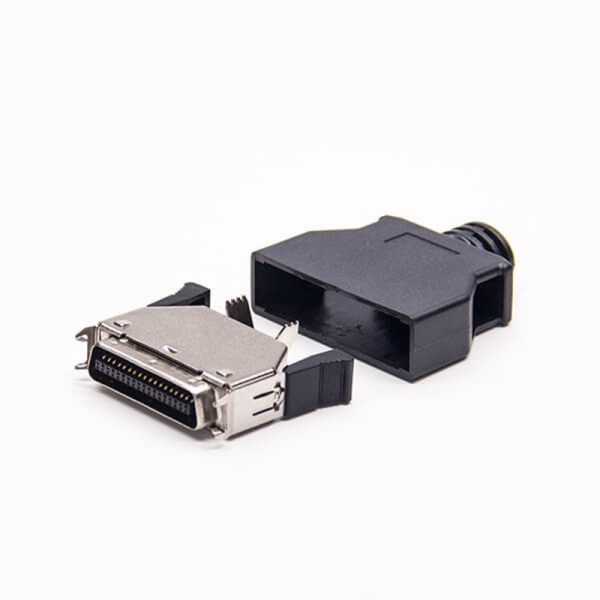

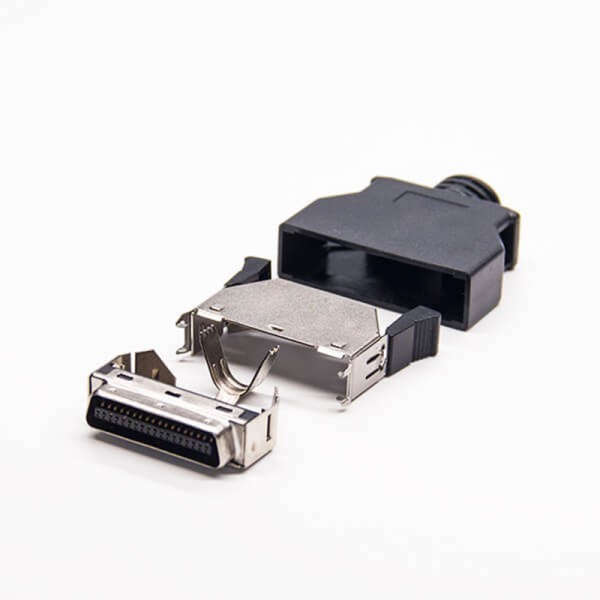

One Touch Lock MDR36 Pin Male Connector Starte One Touch Lock MDR36 Pin Male Connector with Latch Clip and ABS Hood. This SCSI 36 Pin MDR Male Solder Plug Connector pin arrangement in two rows, each row has 18 pin. This MDR36 pin male connector with plastic Hood is usually used on the cable for connecting servo driver. Compatible with SCSI hard disk, SCSI scanner, SCSI breakout Board and SCSI PCI Card. Product Parameters of HPCN 36 Pin SCSI Solder Connector: Item One Touch Lock MDR36 Pin Male Connector Brand Starte Model No. SCCD010 Product type 36 Pin SCSI Connector No. Of Contact 36 pin Contact Type Solder Type 1.27mm cable receptacles Connector Options Latch, Assembly Wire UL2990 28AWG*18 Pairs Al-foil Braid Drain Wire Contact Finishes Gold Selective Plating MOQ 1 PCS Sample Free Package Bags Warranty Two years Technical Parameters of CN36 pin Solder SCSI Cable Connector: Connector Material Housing Plastic Thermoplastic P.B.T UL94V-0, Black Contacts Copper Alloy Gold Selective Plated Front Shell Steel, Nickel Plated Over Copper Plastic Cover Material Hood Plastic Thermoplastic P.B.T UL94V-0 Inner Shell Steel, Nickel Plated Over Copper Latch & Hood: Stainless Steel & Plastic ABS UL94V-0 Entry Hood Plastic ABS UL94V-0 Electrical Characterisitics Contact Current Rating 1.0 Amp Dielectric Withstanding Voltage 500V AC Insulation Resistance 500MΩ/ Min Contact Resistance 35mΩ /Max Operation Temperature -55°C~ 105°C Application of Solder MDR36 Position Connector with Latch Clip: This One Touch Lock MDR36 Pin Male Connector with Latch Clip is usually used on the cable for connecting servo driver. And SCSI hard disk, SCSI scanner, SCSI breakout Board and SCSI PCI Card.
