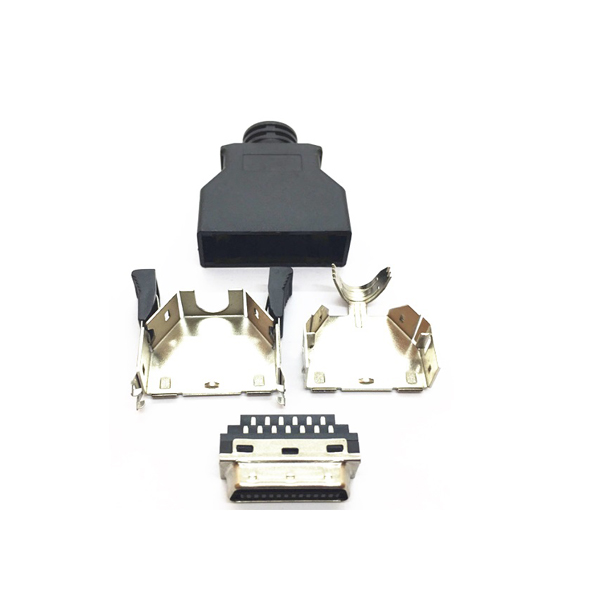

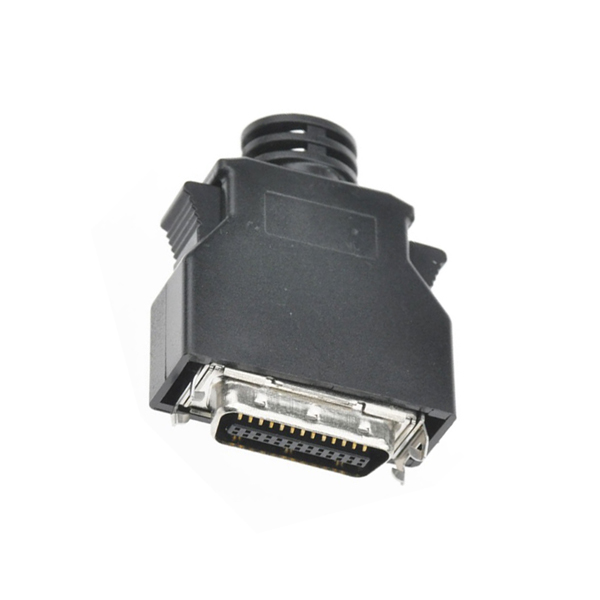

solder type SCSI MDR 26 connector with clip and Plastic Hood

Description : Starte solder type SCSI MDR 26 connector with clip, the connector pin arrangement in two rows, one on top of the other. The top row has 13 pins and the lower row has 13 pins. Often used on the cable for connecting servo driver. solder type SCSI MDR 26 connector with clip Item solder type SCSI MDR 26 connector with clip Brand Starte Precision Electronics Co., Ltd No. Of Contact 26 pin Contact Type 1.27mm cable receptacles Connector solder type Options Male, latch clip,Assembly Wire 28AWG or 30AWG support Contact Finishes Gold Selective Plating   Materials of solder type SCSI MDR 26 connector with clip : Housing: Plastic Thermoplastic P.B.T UL94V-0, Black Contacts: Copper Alloy Gold Selective Plated Front Shell: Steel, Nickel Plated Over Copper   Materials of solder type SCSI MDR 26 connector with plastics Hood Hood: Plastic Thermoplastic P.B.T UL94V-0 Inner Shell: Steel, Nickel Plated Over Copper Latch & Hood: Stainless Steel & Plastic ABS UL94V-0 Entry Hood: Plastic ABS UL94V-0   Electrical Characteristics of solder type SCSI MDR 26 connector with clip： Contact Current Rating: 1.0 Amp Dielectric Withstanding Voltage: 500V AC Insulation Resistance: 500MΩ/ Min Contact Resistance: 35mΩ /Max Operation Temperature:-55°C~ 105°C   Application: 1)motion controller, PCIx card 2)Servers machines and Drive enclosures equipments, 3)Mass storage machines,PCs and Macs and more peripherals 4)RAIDs,CD ROM,File Server 5)Networking Equipments 6)Replace for Panasonic/MITSUBISHI/Matsushita Yaskawa CN1 Connector 3M 10326 SCSI 26P servo driver
