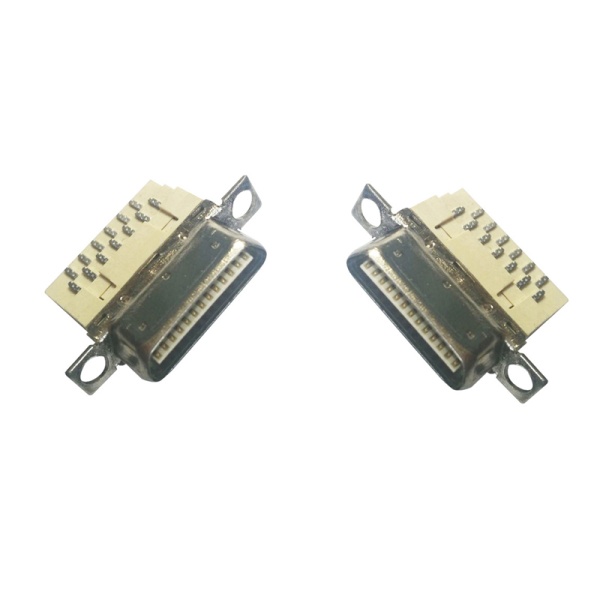

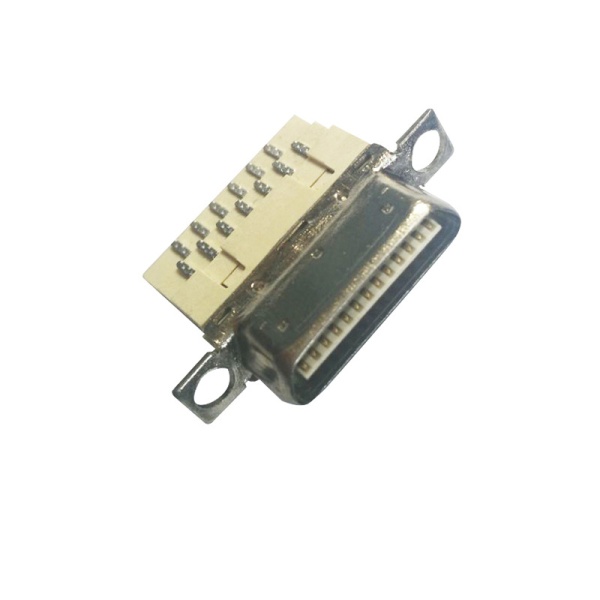

VHDCI26P Ribbon Type Solder Plug Connector Starte VHDCI26P Ribbon Type Solder Plug Connector. This 1.0mm Pitch VHDCI 26 pin plug Connector is solder type, it has 13 pin arrangement in two rows. This solder VHDCI 26 pin connector is always used with SCSI 26 ways shielded wire. Used to link File Servers, Networking Equipment which equipped with VHDCI 26 pin female connector. Product Parameters of Pitch 1.0mm VHDCI 26 pin Solder Connector: Item VHDCI26P Ribbon Type Solder Plug Connector Brand Starte Model No. SCCC013 Product type 26 Pin SCSI Connector No. Of Contact 26 pin Contact Type 1.00mm cable receptacles Connector solder type Options Male Wire 28AWG or 30AWG support Contact Finishes Gold Selective Plating MOQ 1 PCS Sample Free Package Bags Warranty Two years Technical Parameters of Solder Type 1.0mm Pitch VHDCI 26 pin Connector: Connector Material Housing Plastic Thermoplastic P.B.T UL94V-0, Black Contacts Copper Alloy Gold Selective Plated Front Shell Steel, Nickel Plated Over Copper Electrical Characterisitics Contact Current Rating 1.0 Amp Dielectric Withstanding Voltage 500V AC Insulation Resistance 500MΩ/ Min Contact Resistance 35mΩ /Max Operation Temperature -55°C~ 105°C Application of 1.0mm Pitch 26 pin VHDCI solder SCSI Connector: This VHDCI26P Ribbon Type Solder Plug Connector is always used with SCSI 26 ways shielded wire, then used to link File Servers, Networking Equipment which equipped with VHDCI 26 pin female connector.
