Vertical MDR26 pin Female SCSI PCB Connector

4.83 out of 5

|Add a review

$ 27.22

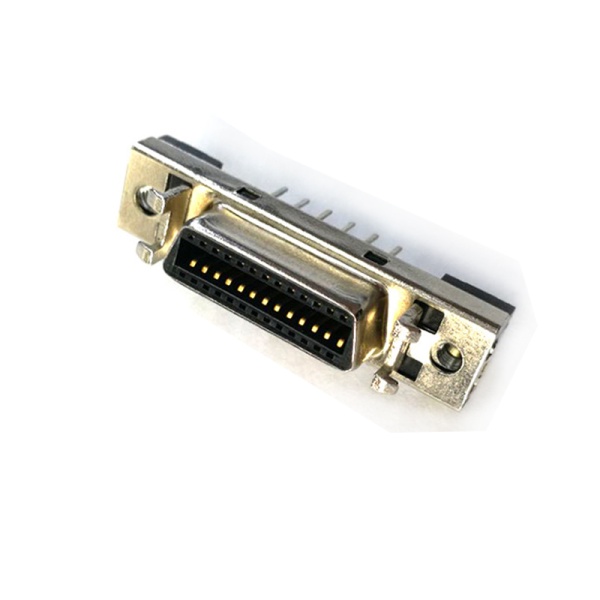

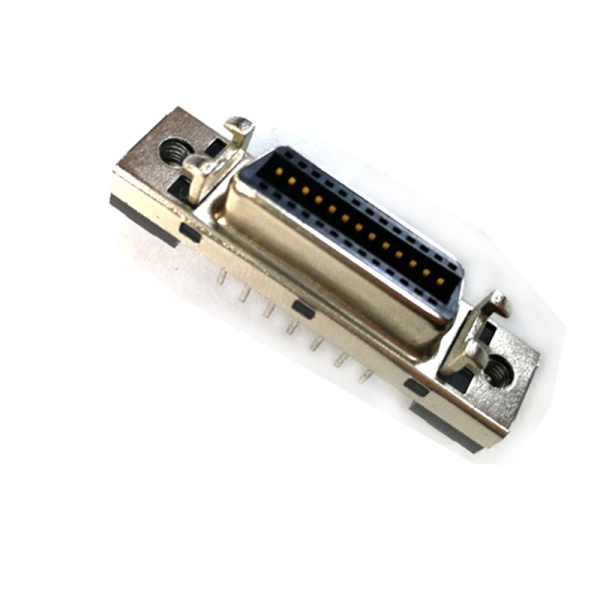

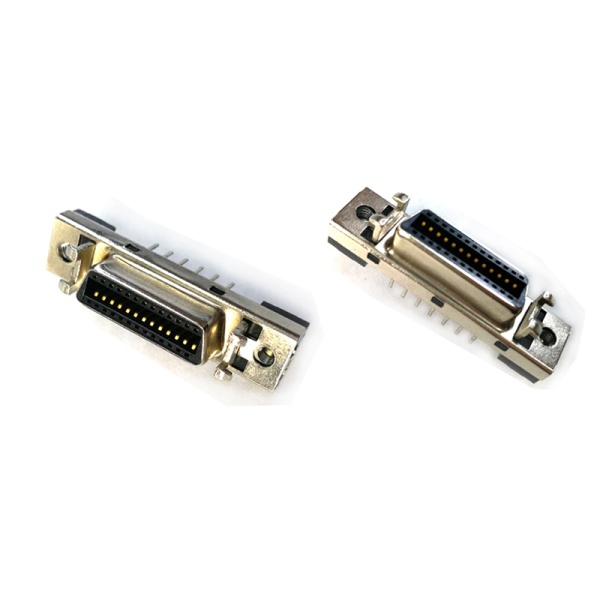

Vertical MDR26 pin Female SCSI PCB Connector Starte Vertical MDR26 pin Female SCSI PCB Connector, this slot Type Mini D ribbon 26 pin Female SCSI PCB Connector is Vertical type SCSI socket Connector which is used on the Industrial equipment PCB, especially on SCSI Servo, SCSI disk and motion controller. Product Parameters of 180 degree Mini D Ribbon 26 pos Female Connector: Item Vertical MDR26 pin Female SCSI PCB Connector Brand Starte Model No. SCCC010 Product type 26 Pin SCSI Connector No. Of Contact 26 pin Contact Type 1.27mm Headers Vertical Mount type connector Options Latch Bracket and Screw Threaded Finishes M2.6 Contact Finishes Gold Selective Plating MOQ 1 PCS Sample Free Package Bags Warranty Two years Technical Parameters of 180 Degree Vertical MDR26 pin Female Connector: Connector Material Housing Plastic Thermoplastic P.B.T UL94V-0, Black Contacts Copper Alloy Gold Selective Plated Front Shell Steel, Nickel Plated Over Copper Bracket Zinc Alloy, Nickel Plated Over Copper Electrical Characterisitics Contact Current Rating 0.5 Amp Dielectric Withstanding Voltage 150V AC Insulation Resistance 500MΩ/ Min Contact Resistance 35mΩ /Max Operation Temperature -55°C~ 85°C Application of Slot Type CN26 pin Female SCSI Servo Connector: This Vertical MDR26 pin Female SCSI PCB Connector is usually used on Servers machines and Drive enclosures equipments, compatible with RAIDs,CD ROM,File Server board.
