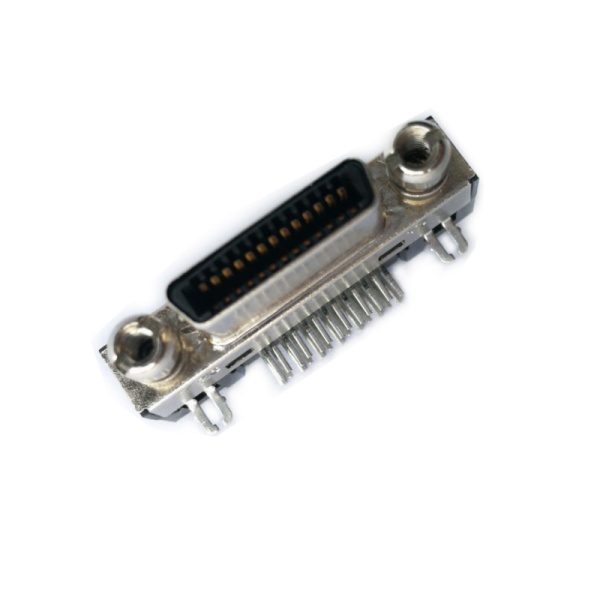

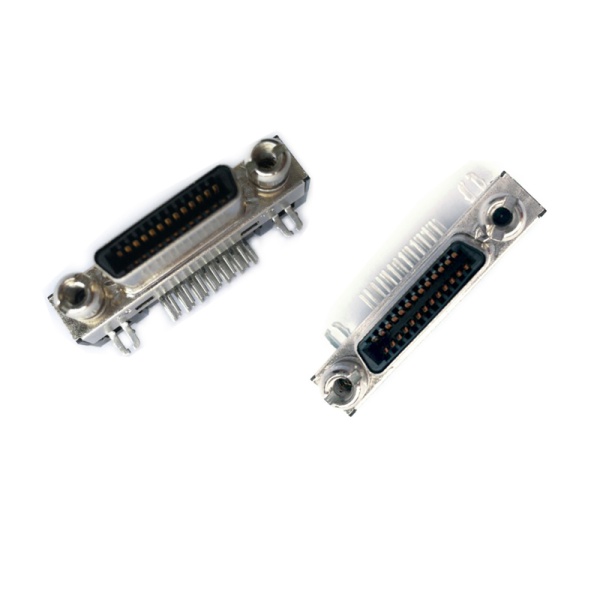

PCB Mount Right Angle MDR26 pin Female Connector

4.83 out of 5

|Add a review

$ 28.04

PCB Mount Right Angle MDR26 pin Female Connector Starte PCB Mount Right Angle MDR26 pin Female Connector, this replace 10226-52A2 MDR26 pin female SCSI Connector is usually used on SCSI Servo Driver Board, and compatible with RAIDs,CD ROM,File Server board and PCI-X. Product Parameters of 90 Degree CN26 pin Female PCB Connector: Item PCB Mount Right Angle MDR26 pin Female Connector Brand Starte Model No. SCCC012 No. Of Contact 26 pin Contact Type 1.27mm cable receptacles Connector solder type Options Latch Bracket Threaded Finishes M2.6 PCB Layout Standard Contact Finishes Gold Selective Plating MOQ 1 Piece Sample Allowed Materials of Slot Type SCSI Female 26 Pin PCB Connector: Housing: Plastic Thermoplastic Nylon PA9T UL94V-0, Black Connects: Copper Alloy Gold Selective Plated Front Shell: Steel, Nickel Plated Over Copper Bracket:Zinc Alloy, Nickel Plated Over Copper Electrical Characteristics of 90 degree HPCN MDR26 pin Female Connector： Contact Current Rating: 0.5 Amp Dielectric Withstanding Voltage: 150V AC Insulation Resistance: ＞ 500MΩ/ Min Contact Resistance: 35mΩ /Max Operation Temperature:-55°C~ 85°C Application of 90 degree SCSI Female 26 Pin PCB Connector: This PCB Mount Right Angle MDR26 pin Female Connector is usually used on SCSI Servo Driver Board, and compatible with RAIDs,CD ROM,File Server board and PCI-X. FAQ: Q: What kind of material you use? A: High quality ABS plastic, PVC, PVC Nylon mesh, Copper (optional) Q:Does your cable has UL certificate? A:Yes, our wire supplier have acquired UL certificate, you can check it on UL website. Q: Which country is your largest market? A: France is largest. Q:.Which payment ways supported? A: T/T, Paypal. Western Union, L/C, OA.
