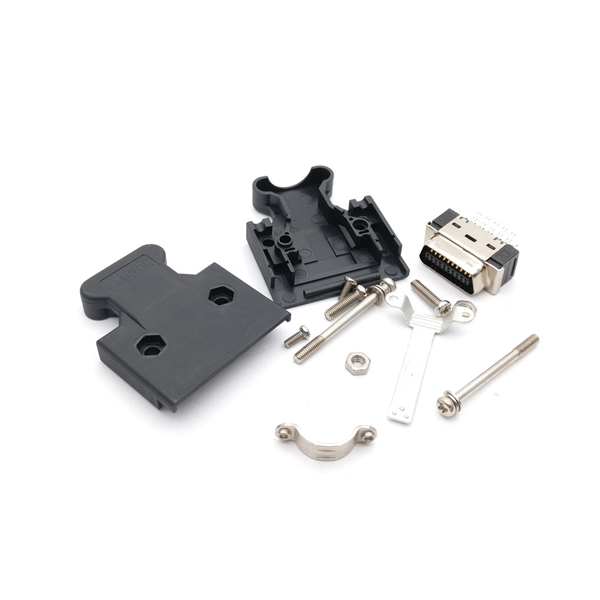

Replace 3M 10320 Solder Type SCSI MDR 20 pin Cable servo Connector

Description : Starte Replace 3M 10320 Solder Type SCSI MDR 20 pin Cable servo Connector, the connector pin arrangement in two rows, one on top of the other. The top row has 10 pins and the lower row has 10 pins. Often used on the cable for connecting servo driver. Replace 3M 10320 Solder Type SCSI MDR 20 pin Cable servo Connector Item Replace 3M 10320 Solder Type SCSI MDR 20 pin Cable servo Connector Brand Starte Precision Electronics Co., Ltd No. Of Contact 20 pin Contact Type 1.27mm cable receptacles Connector solder type Options Male, Screw,Assembly Wire 28AWG or 30AWG support Contact Finishes Gold Selective Plating   Materials of SCSI MDR 20 pin Cable servo Connector: Housing: Plastic Thermoplastic P.B.T UL94V-0, Black Contacts: Copper Alloy Gold Selective Plated Front Shell: Steel, Nickel Plated Over Copper   Materials of SCSI MDR 20 pin Cable servo Connector Hood: Hood: Plastic Thermoplastic P.B.T UL94V-0 Inner Shell: Steel, Nickel Plated Over Copper Jack screws:Steel, Nickel Plated Over Copper Jack screws Hood: PVC (30P)   Electrical Characteristics of SCSI MDR 20 pin Cable servo Connector： Contact Current Rating: 1.0 Amp Dielectric Withstanding Voltage: 500V AC Insulation Resistance: 500MΩ/ Min Contact Resistance: 35mΩ /Max Operation Temperature:-55°C~ 105°C   Application: 1)motion controller, PCIx card 2)Servers machines and Drive enclosures equipments, 3)Mass storage machines,PCs and Macs and more peripherals 4)RAIDs,CD ROM,File Server 5)Networking Equipments 6)Replace for Panasonic/MITSUBISHI/Matsushita Yaskawa CN1 Connector 3M 10320 SCSI 20P servo driver
