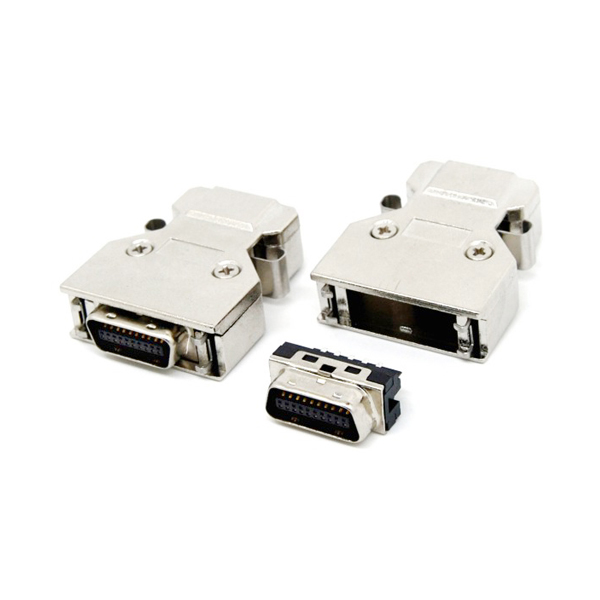

SCSI MDR 20 pin solder connector with latch clip and shielded backshell
$24.53
$35.32
Description : Starte SCSI MDR 20 pin solder connector with latch clip and shielded backshell, the connector pin arrangement in two rows, one on top of the other. The top row has 10 pins and the lower row has 10 pins. Often used on the cable for connecting servo driver. SCSI MDR 20pin solder connector with latch clip Item SCSI MDR 20 pin solder connector with latch clip Brand Starte Precision Electronics Co., Ltd No. Of Contact 20 pin Contact Type 1.27mm cable receptacles Connector solder type Options Male, latch clip, Assembly Wire 28AWG or 30AWG support Contact Finishes Gold Selective Plating Materials of SCSI MDR 20 pin solder connector: Housing: Plastic Thermoplastic P.B.T UL94V-0, Black Contacts: Copper Alloy Gold Selective Plated Front Shell: Steel, Nickel Plated Over Copper Materials of SCSI MDR 20 pin solder connector Hood: Back shell: Zinc Alloy, Nickel Plated Over Copper Spring Latch: Stainless Steel Flat Screws: Steel, Nickel Plated Over Copper Cable Clipper: Steel, Nickel Plated Over Copper Electrical Characteristics of SCSI MDR 20 pin solder connector： Contact Current Rating: 1.0 Amp Dielectric Withstanding Voltage: 500V AC Insulation Resistance: 500MΩ/ Min Contact Resistance: 35mΩ /Max Operation Temperature:-55°C~ 105°C Application: 1)motion controller, PCIx card 2)Servers machines and Drive enclosures equipments, 3)Mass storage machines,PCs and Macs and more peripherals 4)RAIDs,CD ROM,File Server 5)Networking Equipments
