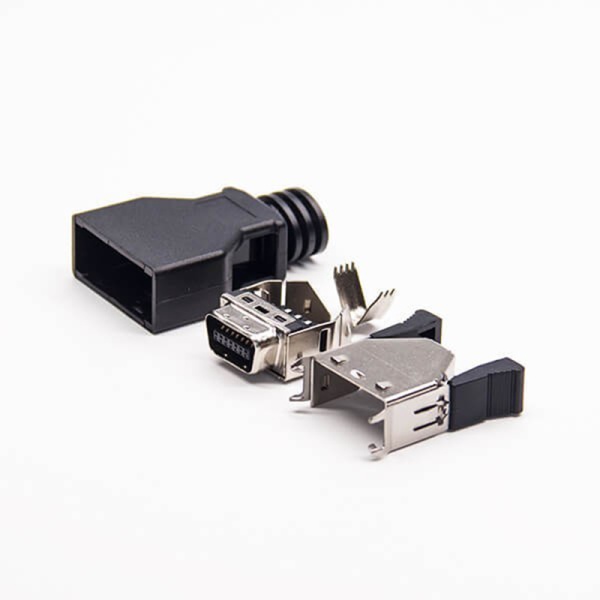

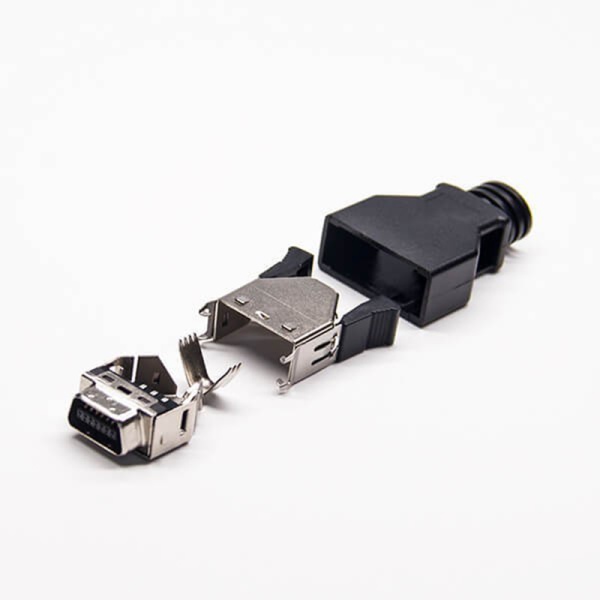

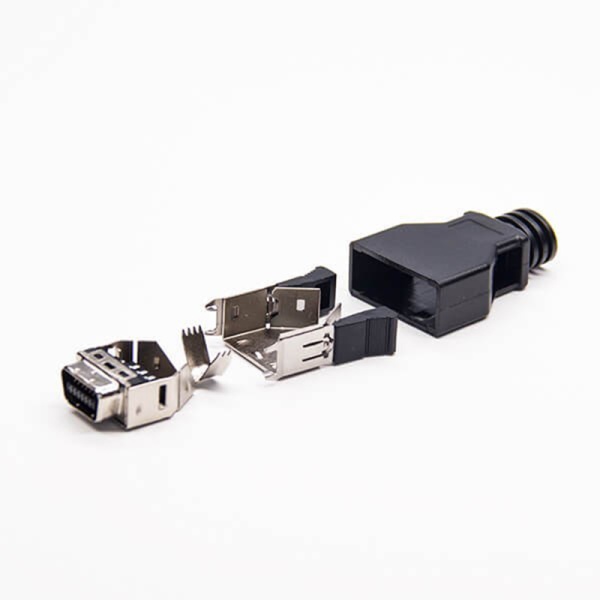

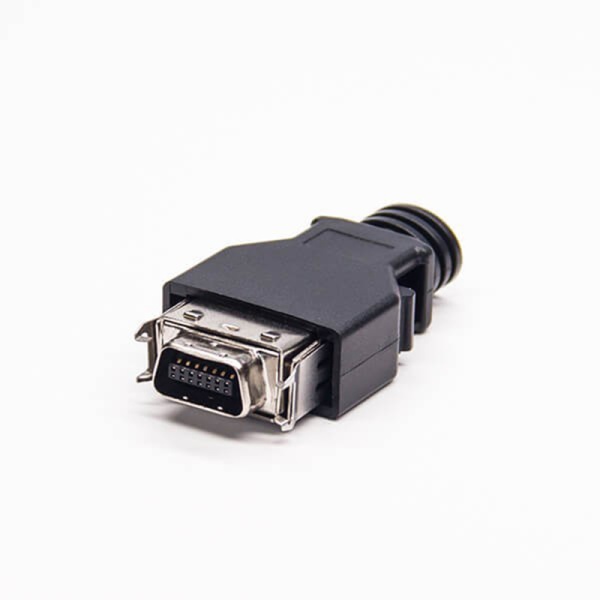

MDR14 pin plug SCSI Solder Connector Starte MDR14 pin plug SCSI Solder Connector with Latch and plastic shell. This 14 pin solder SCSI connector with plastic hood is solder type connector and locked by by latch clip, not by screw. This connector can use with standard SCSI 14 pin shielded wire (Starte UL2990 28AWG*7 Pairs Al-foil Braid Drain wire). Suitable with SCSI Servo device, SCSI Hard Disk and other PCB board which equipped with SCSI 14 pin female connector. Product Parameters of MDR14 pin Connecto r with push botton: Item MDR14 pin plug SCSI Solder Connector Brand Starte Product type 14 Pin SCSI Connector No. Of Contact 14 pin Model No. SCCA004 Contact Type Solder Type 1.27mm cable receptacles Connector Options Male, latch, Assembly Wire 28AWG or 30AWG support Contact Finishes 5u Gold Selective Plating MOQ 1 PCS Sample Free Package Bags Warranty Two years Technical Parameters of solder type MDR14 pin male SCSI Connector: Connector Material Housing Plastic Thermoplastic P.B.T UL94V-0, Black Contacts Copper Alloy Gold Selective Plated Front Shell Steel, Nickel Plated Over Copper Plastic Cover Material Hood Plastic Thermoplastic P.B.T UL94V-0 Inner Shell Steel, Nickel Plated Over Copper Latch & Hood: Stainless Steel & Plastic ABS UL94V-0 Entry Hood Plastic ABS UL94V-0 Electrical Characterisitics Contact Current Rating 1.0 Amp Dielectric Withstanding Voltage 500V AC Insulation Resistance 500MΩ/ Min Contact Resistance 35mΩ /Max Operation Temperature -55°C~ 105°C Application of Push button MDR14 Pin Plug SCSI Connector: This MDR14 pin plug SCSI Solder Connector can match with Starte with standard SCSI 14 pin shielded wire. (Starte UL2990 28AWG*7 Pairs Al-foil Braid Drain wire). Comatible with SCSI Servo device, SCSI Hard Disk and other PCB board which equipped with SCSI 14 pin female connector.
