HPCN 14 pin SCSI solder Connector

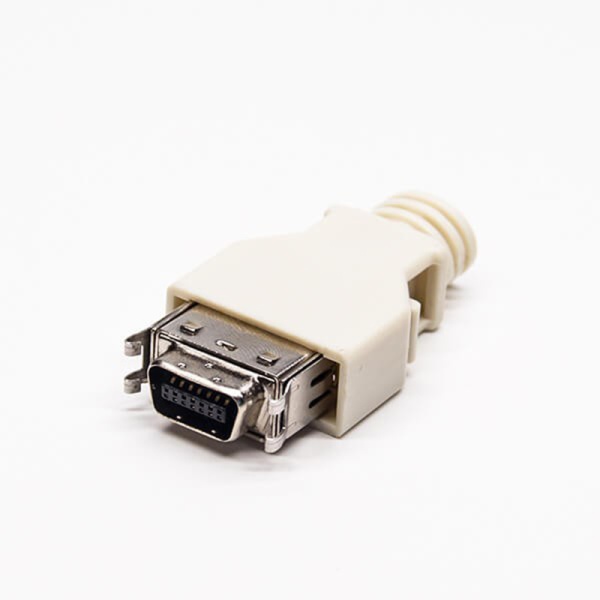

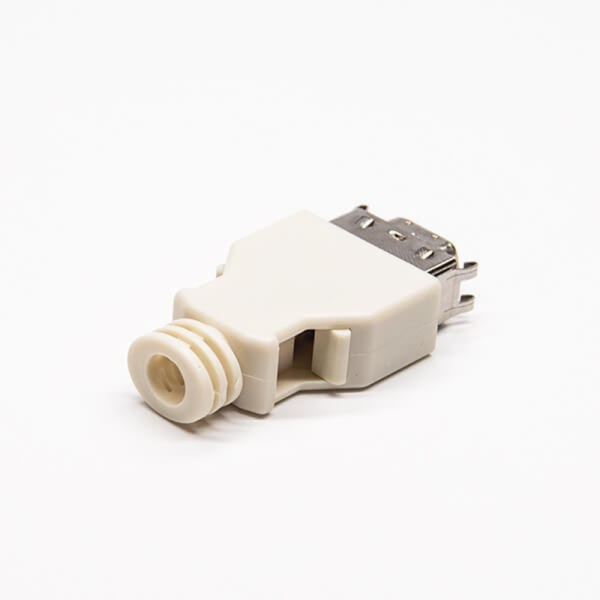

HPCN 14 pin SCSI solder Connector Starte HPCN 14 pin SCSI solder Connector. This SCSI CEN-TYPE 14 Pin Male Connector with latch clip, and used with standard SCSI 14 pin shielded wire. (Starte UL2990 28AWG*7 Pairs Al-foil Braid Drain wire). Locked by latch clip, not screw. Copmptiable with Servers machines and Drive enclosures equipments which equipped with MDR14 pin female connector.   Product Parameters of 14 pin solder scsi connector with plastic shell: Item HPCN 14 pin SCSI solder Connector Brand Starte Product type 14 Pin SCSI Connector No. Of Contact 14 pin Model No. SCCA005 Contact Type Solder Type 1.27mm cable receptacles Connector Shell Color Beige, Black is supported Options Male, latch, Assembly Wire UL2990 28AWG*7 Pairs Al-foil Braid Drain wire Contact Finishes 5u Gold Selective Plating MOQ 1 PCS Sample Free Package Bags Warranty Two years   Technical Parameters of MDR14 pin Connector with push botton: Connector Material Housing Plastic Thermoplastic P.B.T UL94V-0, Black Contacts Copper Alloy Gold Selective Plated Front Shell Steel, Nickel Plated Over Copper Plastic Cover Material Hood Plastic Thermoplastic P.B.T UL94V-0   Inner Shell Steel, Nickel Plated Over Copper Latch & Hood: Stainless Steel & Plastic ABS UL94V-0 Entry Hood Plastic ABS UL94V-0 Electrical Characterisitics Contact Current Rating 1.0 Amp Dielectric Withstanding Voltage 500V AC Insulation Resistance 500MΩ/ Min Contact Resistance 35mΩ /Max Operation Temperature -55°C~ 105°C   Application of solder type MDR14 pin male SCSI Connector: This HPCN 14 pin SCSI solder Connector is copmptiable with Servers machines and Drive enclosures equipments which equipped with MDR14 pin female connector.
