90 degree MDR36 Pin Female Connector

4.83 out of 5

|Add a review

$ 17.84

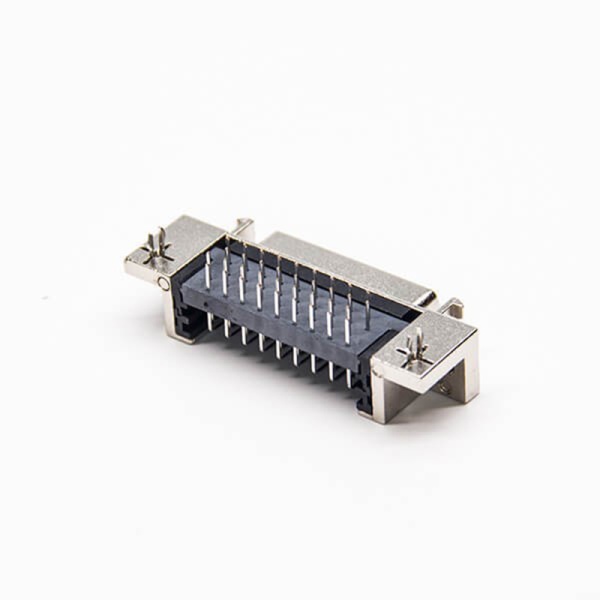

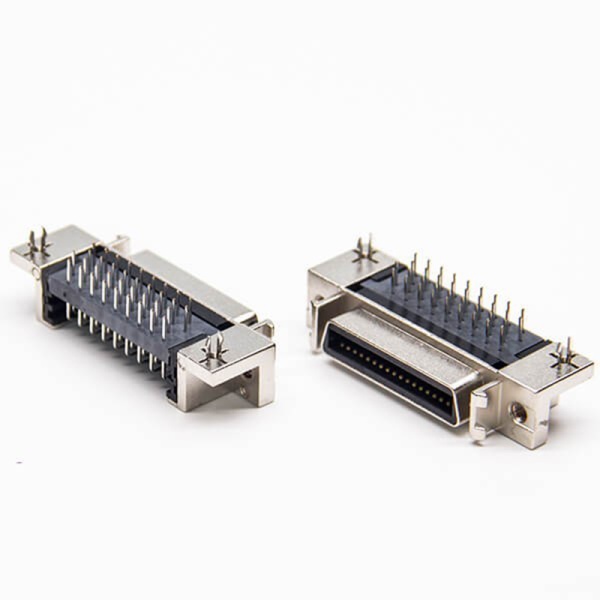

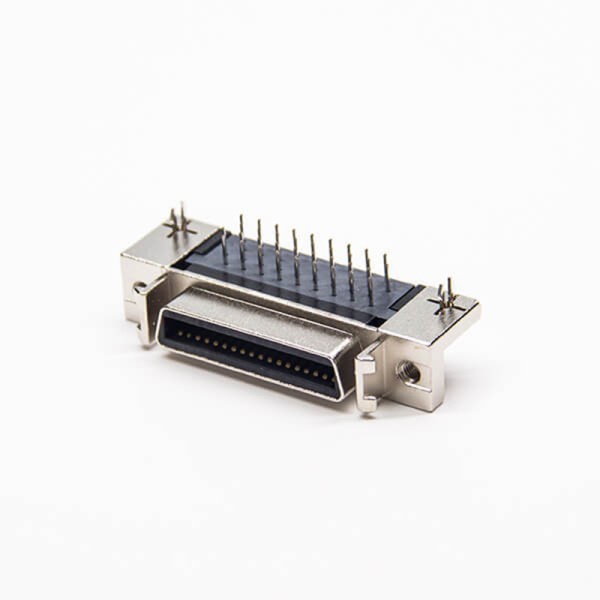

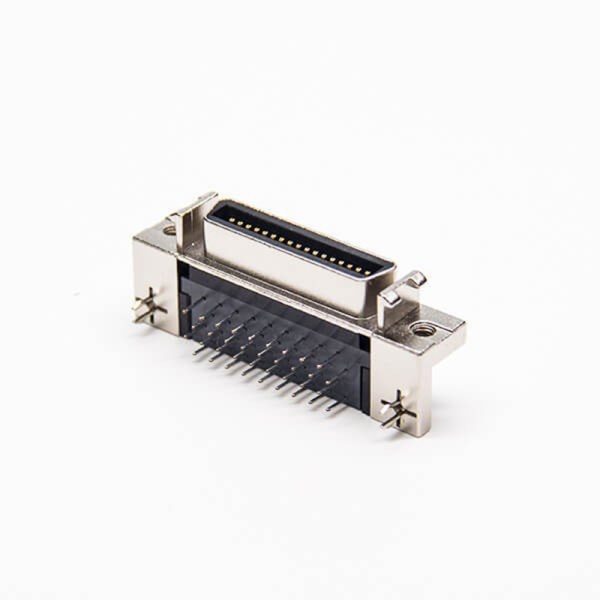

90 degree MDR36 Pin Female Connector Starte 90 degree MDR36 Pin Female Connector with latch bracket. The MDR 102 36 Way Right Angle D-sub Connector Socket have a 0.050 inch (1.27 mm) pitch, and has 18 pins arrangement in two rows. This DIP type MDR36 pin female connector is often used on SCSI CN 36 Pin Servo Breakout Board. Compatible with Parallel Printer Device. Product Parameters of 90 degree MDR36 Pin Female PCB Connector: Item 90 degree MDR36 Pin Female Connector Brand Starte Brand No. SCCD012 Product type 36 Pin SCSI Connector No. Of Contact 36 pin Contact Type 1.27mm Header right angle Mount type connector Options Latch Bracket Threaded Finishes M2.6 Contact Finishes Gold Selective Plating MOQ 1 PCS Sample Free Package Bags Warranty Two years Technical Parameters of 90 degree SCSI MDR 36Pin Female DIP Connector: Connector Material Housing Plastic Thermoplastic P.B.T UL94V-0, Black Contacts Copper Alloy Gold Selective Plated Front Shell Steel, Nickel Plated Over Copper Bracket Steel, Nickel Plated Over Copper Board Lock Copper Tin Plated Over Copper Electrical Characterisitics Contact Current Rating 0.5 Amp Dielectric Withstanding Voltage 150V AC Insulation Resistance 500MΩ/ Min Contact Resistance 35mΩ /Max Operation Temperature -55°C~ 85°C Application of Right angle MDR36 pin Female Connector with Harpoon: This 90 degree MDR36 Pin Female Connector is often used on Servo Breakout Board and Parallel Printer Device.
