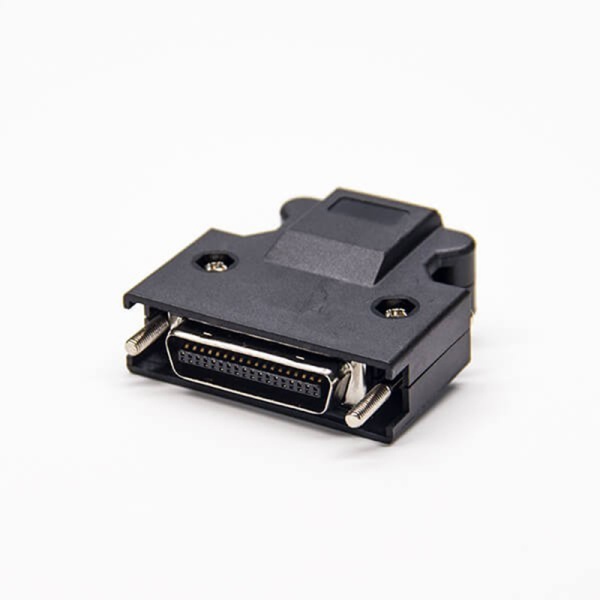

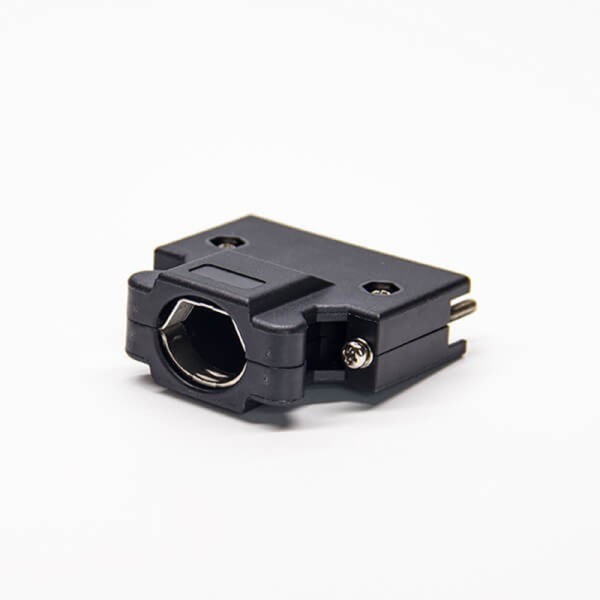

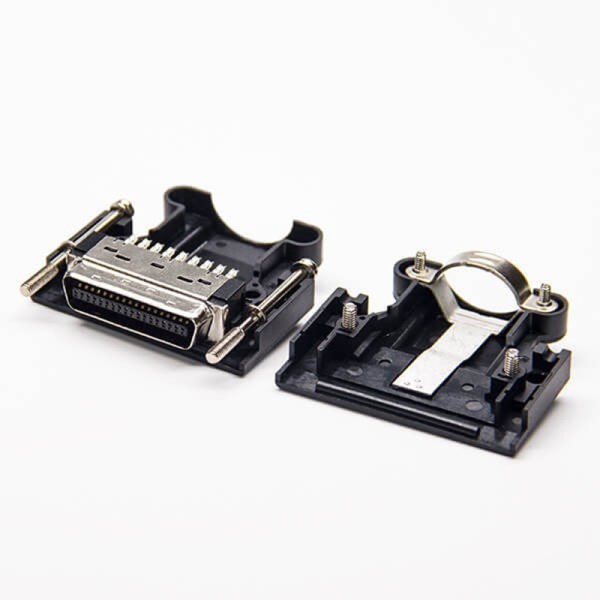

36 Pin SCSI MDR Wire Mount Male Connector Starte 36 Pin SCSI MDR Wire Mount Male Connector. This Screw Type Mini D Ribbon 36pin SCSI Connector pin arrangement is in two rows, each row has 18 pins. This type MDR36 pin connector is similar with 3M Mini Delta Ribbon 36 pin connector. Commonly used to make MDR36 pin cable. Then link SCSI 36 Pin Servo Connectors Terminal Blocks Breakout Board and parallel printers. Product Parameters of Screw Type MDR36 Pin SCSI Connector: Item 36 Pin SCSI MDR Wire Mount Male Connector Brand Starte Model No. SCCD011 Product type 36 Pin SCSI Connector No. Of Contact 36 pin Contact Type Solder Type Options Male, Screw,Assembly Wire UL2990 28AWG shielded Wire Contact Finishes Gold Selective Plating MOQ 1 PCS Sample Free Package Bags Warranty Two years Technical Parameters of 10336 Screw Type MDR36 Pin Servo Connector: Connector Material Housing Plastic Thermoplastic P.B.T UL94V-0, Black Contacts Copper Alloy Gold Selective Plated Front Shell Steel, Nickel Plated Over Copper Plastic Cover Material Hood Plastic Thermoplastic P.B.T UL94V-0 Inner Shell Steel, Nickel Plated Over Copper Jack screws Steel, Nickel Plated Over Copper Jack screws Hood PVC Electrical Characterisitics Contact Current Rating 1.0 Amp Dielectric Withstanding Voltage 500V AC Insulation Resistance 500MΩ/ Min Contact Resistance 35mΩ /Max Operation Temperature -55°C~ 105°C Application of Half Pitch CN36 pin SCSI Connector with Screw : This 36 Pin SCSI MDR Wire Mount Male Connector is commonly used to make MDR36 pin cable. Then link SCSI 36 Pin Servo Connectors Terminal Blocks Breakout Board and parallel printers.
