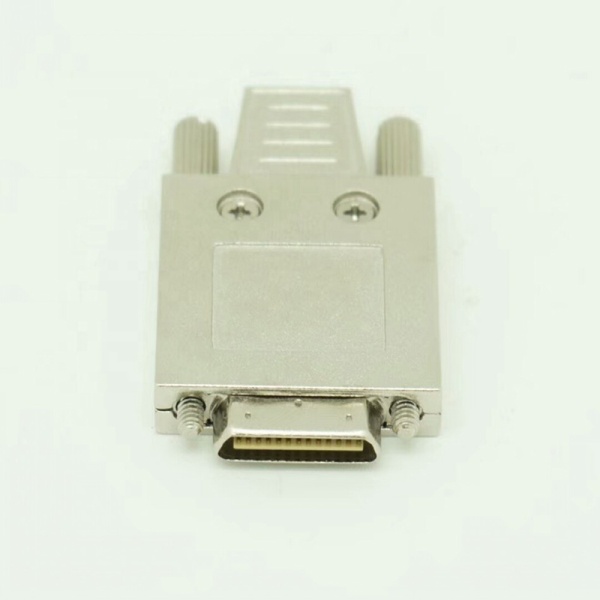

26 pin 0.8mm pitch VHDCI SCSI Connector

4.83 out of 5
$ 25.74
26 pin 0.8mm pitch VHDCI SCSI Connector Starte 26 pin 0.8mm pitch VHDCI SCSI Connector. This 0.8mm VHDCI 26 pin male SCSI Connector with metal hood pin arrangement is in two rows, each row has 13 pins. It is used on the Industrial equipment PCB or PCI break out board with VHDCI 26 pin female connector.   Product Parameters of VHDCI 26 position male SCSI Connector: Item 26 pin 0.8mm pitch VHDCI SCSI Connector Brand Starte Model No. SCCC008 Product type VHDCI 26 Pin SCSI connector No. Of Contact 26 pin Contact Type VHDCI 26 pin connector Options Screw Threaded Finishes M2.0 Contact Finishes Gold Selective Plating MOQ 1 PCS Sample Free Package Bags Warranty Two years      Technical Parameters of Ultra Thin VHDCI 26 pin Connector: Connector Material Housing Plastic Thermoplastic P.B.T UL94V-0, Black Contacts Copper Alloy Gold Selective Plated Front Shell Steel, Nickel Plated Over Copper Screw Zinc Alloy, Nickel Plated Over Copper Electrical Characteristics Contact Current Rating 0.5 Amp Dielectric Withstanding Voltage 150V AC Insulation Resistance 500MΩ/ Min Contact Resistance 35mΩ /Max Operation Temperature -55°C~ 85°C   Application of VHDCI 26 pin plug Connector: This 26 pin 0.8mm pitch VHDCI SCSI Connector is not 1.27mm pitch SCSI Serial Connector. It is 0.8mm pitch serial SCSI Connector. Used on the Industrial equipment PCB or PCI break out board with VHDCI 26pin female connector.
