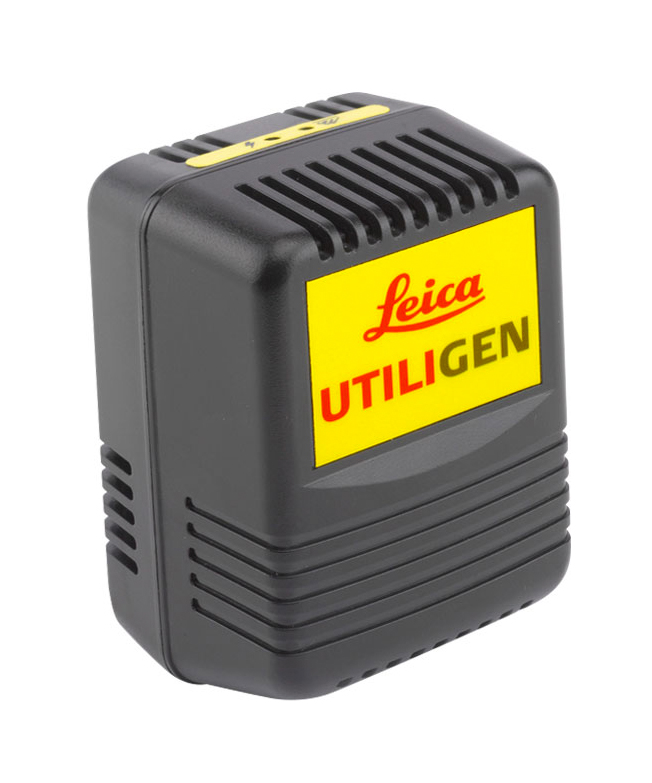

Unique Signal Generator For use with the UTILIFINDER . Emits signals when plugged into a 13 amp power socket. The Leica UTILIFINDER System 1. Leica UtiliFinder The Leica UTILIFINDER is a unique location system used to identify buried utilities. Select Auto mode to detect loaded power cables. 2. Leica UtiliGen Use the Leica UTILIGEN to identify utilities and obtain a depth reading with the Leica UTILIFINDER . 3. Leica UtiliDrain Use the Leica UTILIDRAIN to map pipes or sewers and find blockages. Use the Leica UTILIFINDER to trace the drain and obtain a depth reading. Leica UTILIFINDER - Overview Step 1 - Plug-in Plug UTILIGEN into wall and turn on power. Green light confirms that power cables can be traced. Blue light indicates that some other services can be traced. Step 2 - Activate Squeeze trigger to turn on UTILITRACE. LCD activates. Step 3 - Search Hold UTILITRACE vertically, sweep the ground in a zig zag pattern, covering the whole area. When the visual and audible signals are at the highest you are directly over a buried service. Step 4 - Mark When the bar graph is at its highest point you are directly over the service and should mark the ground. Joining your marks indicates the path of the service. Key functions: i button Information. The UTILIFINDER web address will be displayed. The website provides all online support and training information. Key functions: F button Functional test. With the UTILIGEN turned off, hold the F button for 2 seconds. The UTILITRACE will automatically carry out a functional test. Key functions: i button Step 1: Position UTILIFINDER over the service Step 2: Ensure UTILIFINDER is set to 33 kHz mode Step 3: Press & release i key for depth reading Leica UTILIFINDER Video Tutorial How to trace power cables & underground utilities Key Features Easy & intuitive to use Rugged casing Plug-in signal generator Depth reading: 0.3 to 3m IP54 Rated Transmitter modes: 33kHz or Auto Bag included Features Popular with Easily locate & trace utilities Excavation contractors Work safely with usage alerts & system diagnostics Utility installation & repair contractors No technical experience necessary General contractors Robust light weight design Builders Save time & money Gas & electricity companies Highly visible digital LCD display Cable TV companies Robust light weight design Pipe laying contractors What is a UTILIFINDER and why do I need one? HSG47: Avoiding danger from underground services By law, breaking ground requires the use of a cable locating device to obtain accurate information about the location of buried utilities in order to protect employees and equipment during any excavation project. Download the official guidance >> Cable strikes result in unnecessary costs, reduce profit potential and introduce project delays. The revolutionary new UTILIFINDER system provides a unique solution especially designed for work directly surrounding existing buildings, allowing quick and easy location of buried electrical cables. Other conductive services including metal gas and water pipes; and Telecom cables can also be located when they are safety bonded to the electrical earth. Leica UTILIFINDER View and download this product’s brochure, datasheet, and manual in a PDF format Leica Utili-Finder Plus Data Sheet Leica Utili-Finder Plus – User Manual Leica UTILIFINDER – Brochure
