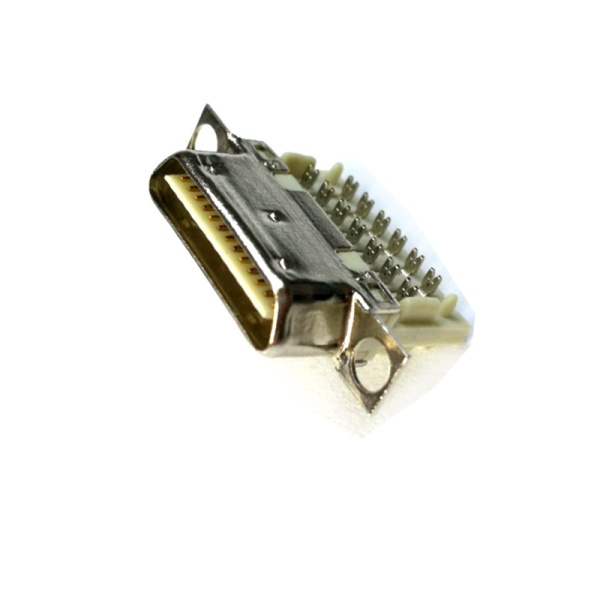

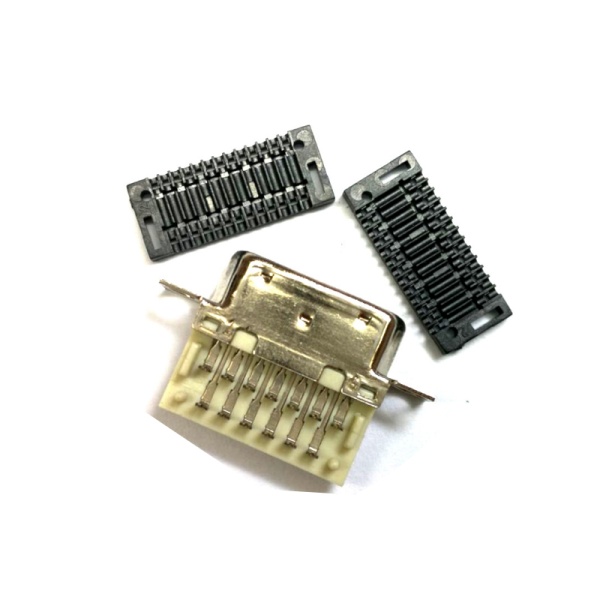

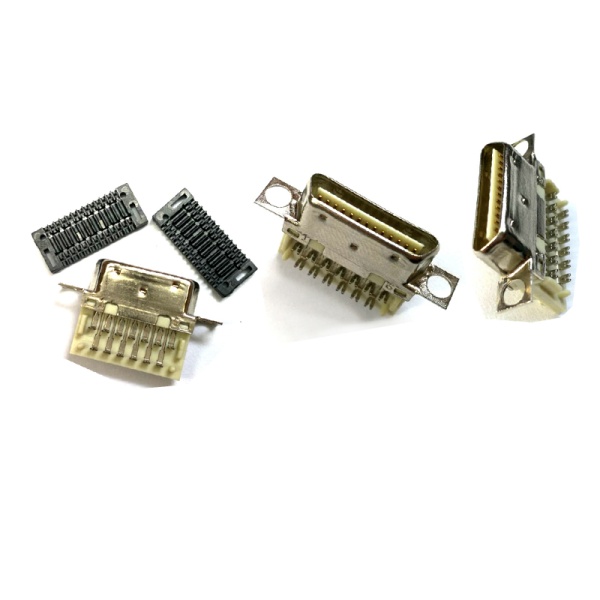

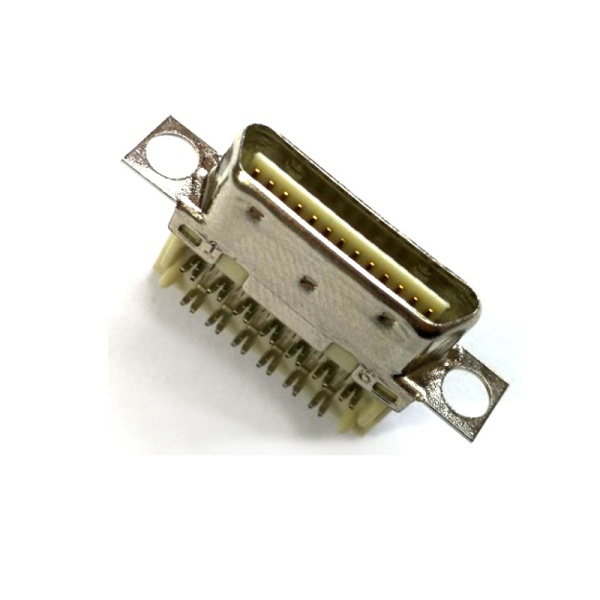

1.0mm Pitch 26 pin VHDCI male SCSI Connector Starte 1.0mm Pitch 26 pin VHDCI male SCSI Connector, the IDC type 1.0mm Pitch VHDCI 26 Pin Male Connector pin is arranged in two rows, each row has 13 pin.This VHDCI 26 pin connector is usually used with Standard SCSI 26 pin shieled wire(Ours is UL2990 28AWG*13 Pairs Al-foil Braid Drain wire), and compatible with File Servers / Networking Equipment. Product Parameters of Pitch 1.0mm VHDCI 26 pin male Connector : Item 1.0mm Pitch 26 pin VHDCI male SCSI Connector Brand Starte Model No. SCCC012 Product type 26 Pin SCSI Connector No. Of Contact 26 pin Contact Type 1.00mm cable receptacles Connector IDC Type Options Screw Wire UL2990 28AWG*13 Pairs Al-foil Braid Drain wire Contact Finishes Gold Selective Plating MOQ 1 PCS Sample Free Package Bags Warranty Two years Technical Parameters of VHDCI26P Ribbon Type Metal Plug Connector: Connector Material Housing Plastic Thermoplastic P.B.T UL94V-0, Black Contacts Copper Alloy Gold Selective Plated Front Shell Steel, Nickel Plated Over Copper Cover&Holder Plastic Thermoplastic P.B.T UL94V-0, Black Inner Shell Steel, Nickel Plated Over Copper Electrical Characterisitics Contact Current Rating 1.0 Amp Dielectric Withstanding Voltage 500V AC Insulation Resistance 500MΩ/ Min Contact Resistance 35mΩ /Max Operation Temperature -55°C~ 105°C Application of 1.0mm Pitch 26 pin VHDCI male SCSI Connector: This 1.0mm Pitch 26 pin VHDCI male SCSI Connector is usually used with Standard SCSI 26 pin shieled wire(Ours is UL2990 28AWG*13 Pairs Al-foil Braid Drain wire), and compatible with File Servers / Networking Equipment.
