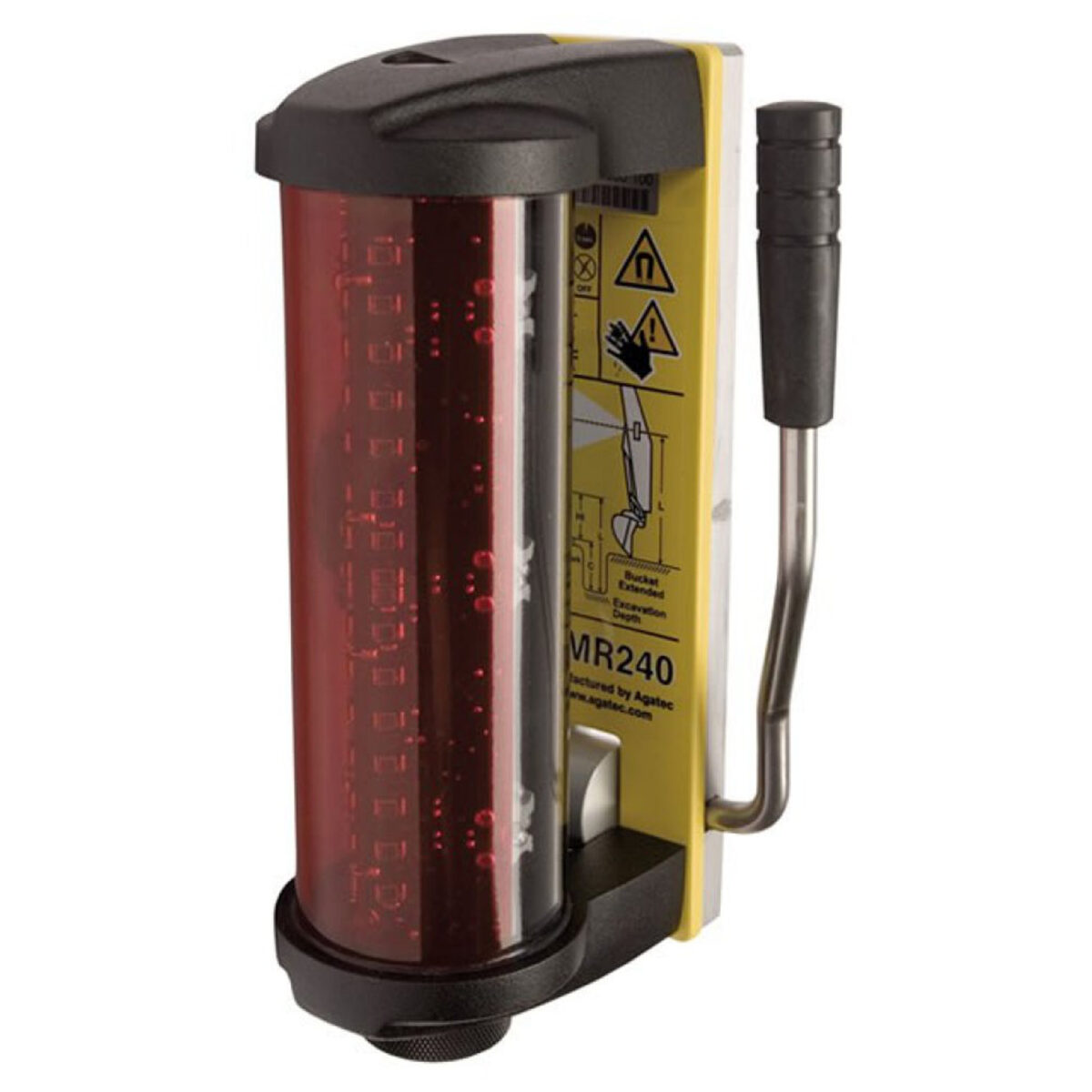

240° Machine Receiver Ideal for mini diggers The LMR 240 receiver provides accurate grade information for all visual machine control applications, with 240° reception from any rotating laser. Supplied with: Leica LMR240 receiver Magnetic mount Batteries Carry case User manual 2 year warranty One-person operation saves time and money! Attaches to excavator arm with extra strong rare earth magnets built into back plate. No grade checker required So there’s no expensive machine downtime while operator checks grade with a rod. Positioning the Leica LMR240 receiver with release lever Pull the lever down before placing it on the excavator arm. This creates a gap between the back plate and machine. This gap prevents the strong magnets from attaching to the machine until you have it in position. Once it is in position, lift the lever to lock receiver. Key Features One-person operation 240° detection window picks up laser from wide angle Blinking LEDs point in the direction to move the bucket to reach grade Choice of three settings: 3 channels (indicators) in coarse mode; 3 or 5 channels in fine Magnetic mount allows quick mounting & easy movement from machine to machine Battery life: 130 hours – 3 x AA alkaline Specifications Popular with One-person operation General Construction Automatic shutoff Rugged, waterproof (IP67) Range: 250 m varies with laser used Accuracy: Fine: 6 mm Coarse: 15 mm Reception angle: 240° Capture window: 15cm Battery life approx. 120 -160 hours – 3 xAA batteries Magnetic mount Leica MR240 Documentation View and download this product’s brochure, datasheet, and manual in a PDF format Leica LMR240 Brochure Leica LMR240 Manual Leica Machine Receivers Data Sheet
