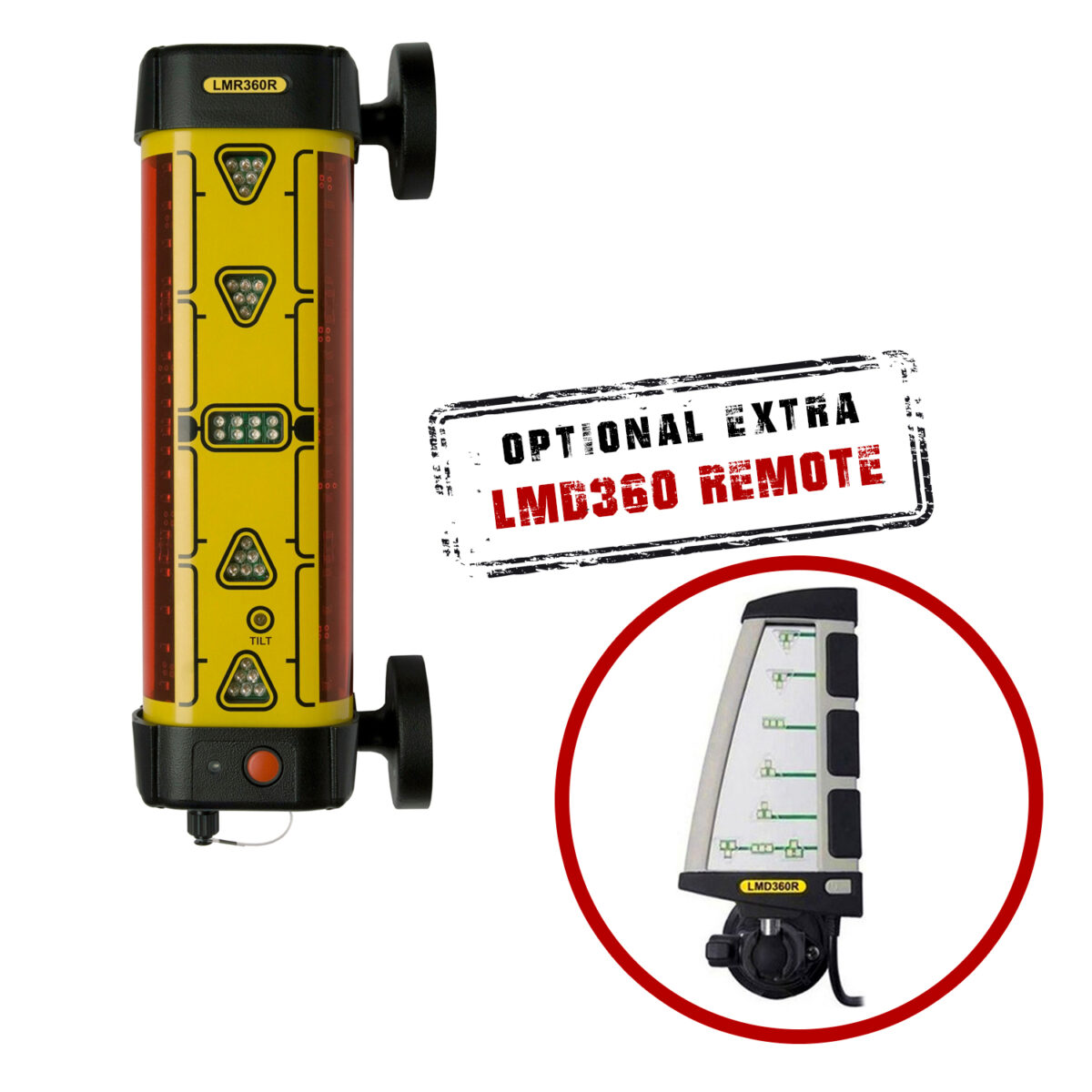

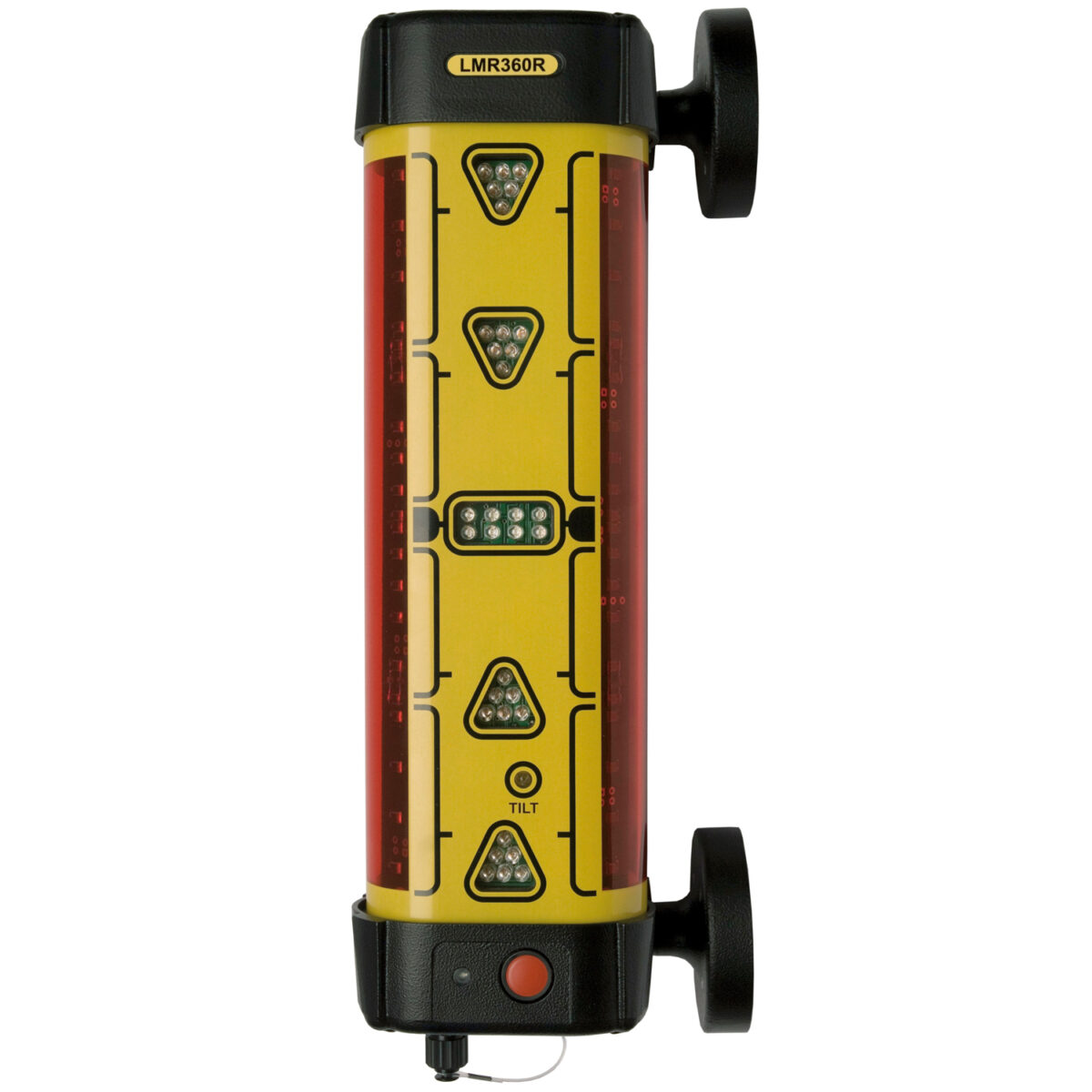

360° machine mounted receiver – for visual machine control applications Ideal for medium sized diggers The LMR360 offers accurate grade information for all visual machine control applications. Large 360° detection windows pick up any rotating laser, from any angle. Built-in vertical indicator monitors angle of the stick, signalling if it’s plumb, under or over extended. Receiver has plumb LED indicator; remote display has direction arrows for plumbing up the dipper stick. Saves money by reducing over – or under-cuts. Choice of receiver channels: switch to the 2nd frequency if there are two systems on a job site. Supplied with: Leica LMR360 Receiver 110/240V charger & lead Hard carry case User manual 2 year warranty LED indicators on receiver LED indicators show position of cutting edge in relation to the laser reference beam. Seven display channels (indicators) in coarse mode; nine channels in fine mode. Receiver has plumb LED indicator. Rugged, waterproof construction. Built-in shock mounts minimise machine vibrations. LED Indicators on remote display The optioal LMD360 remote display has direction arrows for plumbing up the dipper stick. Arrows indicate which way to move the cutting edge to reach the reference plane. Key Features One-person operation Large 360° detection windows pick up any rotating laser, from any angle Built-in vertical indicator monitors angle of the stick, signalling if it’s plumb or under- or overextended Choice of three settings: 3 channels (indicators) in coarse mode; 3 or 5 channels in fine Magnetic mount allows quick mounting & easy movement from machine to machine Battery type: NiMH rechargeable Specifications Popular with One-person operation General Construction Automatic shutoff Rugged, waterproof (IP67) Range: 650 ft. (200 m) varies with laser used Accuracy: Fine: 6 mm Coarse: 12 mm Reception angle: 360° Vertical indicator: ± 5° Battery life approx. 30 hours – NiMH rechargeable batteries Operating temperature -18 to 158 F; (-28 to 70 C) Leica LMR360R Documentation View and download this product’s brochure, datasheet, and manual in a PDF format Leica LMR360R Brochure Leica LMR360R Manual
