450nm 20W High Power Engraving and Cutting Laser Module for 3D Printing and Marking Machine

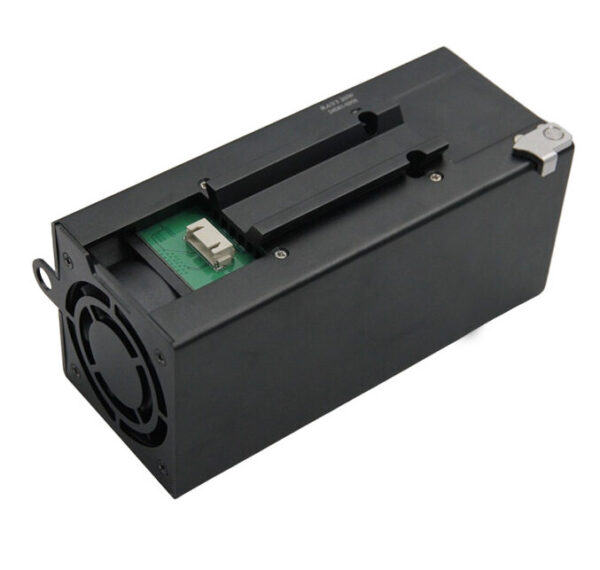

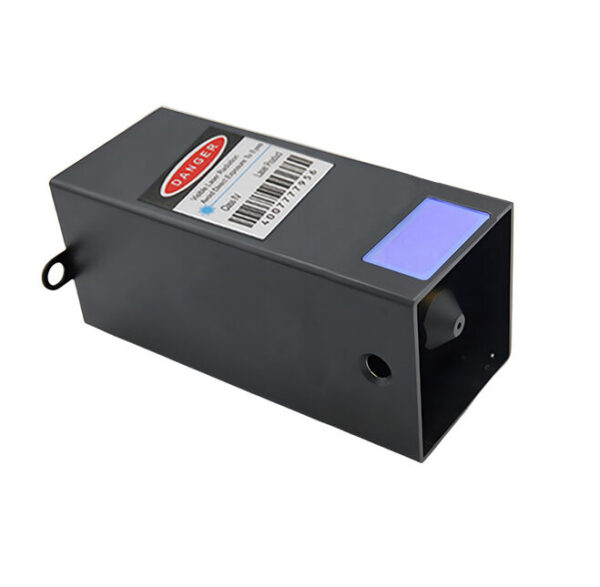

450nm 20W High Power Engraving and Cutting Laser Module for 3D Printing and Marking Machine The 450nm 20W blue laser module adopts spot compression technology, integrating four 5W beam-compressed laser diodes to deliver high combined light source power. It narrows the laser spot through beam compression technology, features an excellent heat dissipation design and stable optical output power, and maintains consistent engraving and cutting performance. Constructed with high-strength acrylic material, the 450nm 20W blue laser module prevents eye burns—its laser protection cover effectively filters laser radiation, allowing operation without additional eye protection tools. It also incorporates a built-in fan cooling system with a rotational speed of 7500rpm, ensuring efficient heat dissipation for prolonged, high-performance operation. This 450nm 20W blue laser module is compatible with various materials including plywood, fabric, plastic, bamboo, paper, acrylic, stainless steel, leather, cardboard, coated metal, stone, kraft paper, and leaves; it can cut 3-20mm thick materials such as wood, cardboard, leather, and acrylic. Core Specification Wavelength 450nm Output Power 20W Working Voltage 24v Beam Mode Dot beam The focal length 50±1mm Housing Size 67x70x159.5mm Optical Lens Glass Lifespan 10000H Product Display Our Services We have over 1s years of experience with Lasers. We offer professional 0EM& ODM service for laser modules from 37snm to 1o64nm! Item Parameter Wavelength 375-405nm 425-488nm 515-520nm 635-670nm 780-980nm Single Diode Module Optical Power 20mW-3W 55mW-6W 10mW-1.6W 5mW-2.5W 5mW-75W Multi Diodes odule Optical Power 3W-200W 6W-500W 1.6W-50W 2.5W-30W 75W-100W Operating Voltage 3-5V/6V/12V/24V/3oV/11oV/22oV/z4oVetc. Beam Mode Dot/Line/ Cross/Grid/ Muti-lines/ DOE etc. Fan Angle Options of the Line Beam 5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180°etc. Optical Lens Acrvliclenses, glass lenses, wave lenses, Powelllenses etc. Dimension 4*8mm/6*10.5mm7*15mm/9*21mm/16*66mm/33*33*55mm/ Customizable etc. CDRH Class class1/class2/class3A/class3B/class4
