650nm 2.2mW Red Line Laser Module for Machine Vision and Positioning

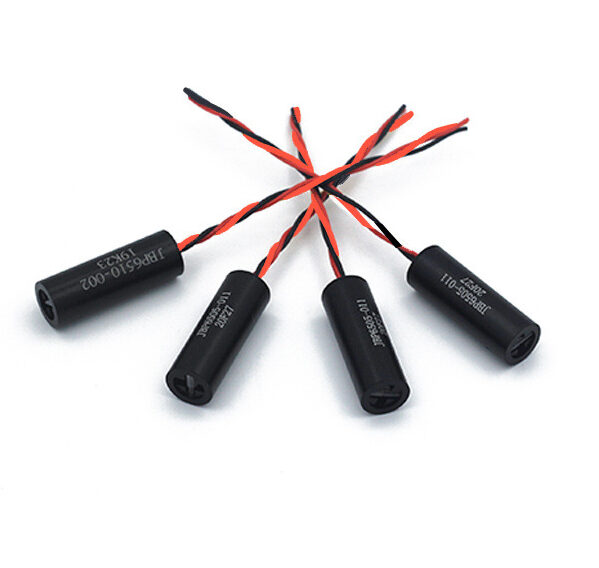

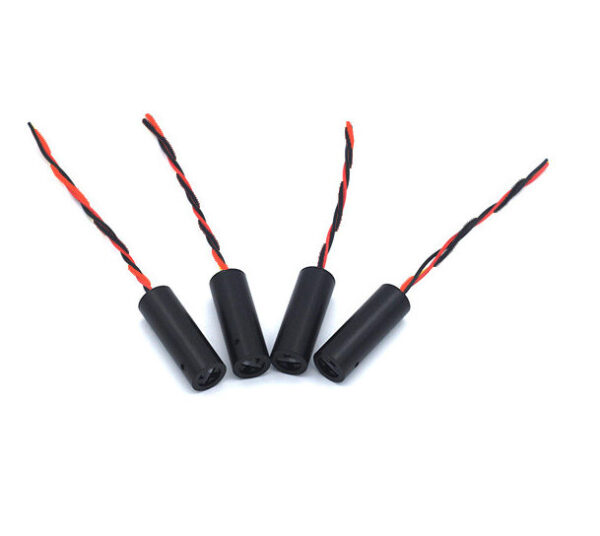

650nm 2.2mW Red Line Laser Module  for Machine Vision and Positioning This 650nm red one line laser module functions as a dual-purpose component: it acts as a high-precision machine vision positioning laser and a reliable 3D camera scanning line laser, designed specifically for industrial automation and visual inspection scenarios. The module showcases an ultra-compact form factor with dimensions of 9x26mm, making it ideal for integration into space-constrained equipment or tight installation environments. At its optical core, it employs a premium 110-degree cylindrical glass lens—this lens ensures uniform light distribution along the laser line, delivering sharp, high-contrast scanning results for accurate target detection and positioning. The laser module operates within a flexible working voltage range of 2.5-6V, compatible with various power supply systems commonly used in industrial electronics. It adopts advanced PWM (Pulse-Width Modulation) control, allowing users to precisely adjust the laser’s output intensity and performance according to specific application requirements. The module runs exclusively in pulse working mode, with a fixed operating frequency of 30kHz—this frequency balance ensures both energy efficiency and stable laser emission, minimizing heat generation while maintaining consistent scanning accuracy during prolonged operation. Core Specification Wavelength 650nm Output Power 2.2mW Working Voltage 2.5-6V Beam Mode 110 degree laser line Line Width  ≤0.5mm（@300MM） Housing Size 9x26mm ( Customizable) Lens Glass Working Time  10000H Product Display Our services We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules from 375nm to 1o64nm! Item Parameter Wavelength 375-405nm 425-488nm 515-52onm 635-67onm 780-98onm Single Diode Module Optical Power 2omW-3W 55mW-6w 10mW-1.6w 5mW-2.5w 5mW-75w Multi Diodes Module Optical Power 3W-2o0W 6W-500W 1.6W-50W 2.5W-3oW 75W-100W Operating Voltage 3-5V/6V/12V/24V/3oV/11oV/22oV/z4oV etc. Beam Mode Dot/Line/ Cross/Grid/ Muti-lines/ DOE etc. Fan Angle Options of the Line Beam 5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc. Optical Lens Acrylic lenses, glass lenses, wave lenses, Powell lenses etc. Dimension 4*8mm/6*10.5mm/12*15mm/9*21mm/16*66mm/33*33*55mm/ Customizable etc. CDRH Class  class1/class2/class3R/class3B/class4
