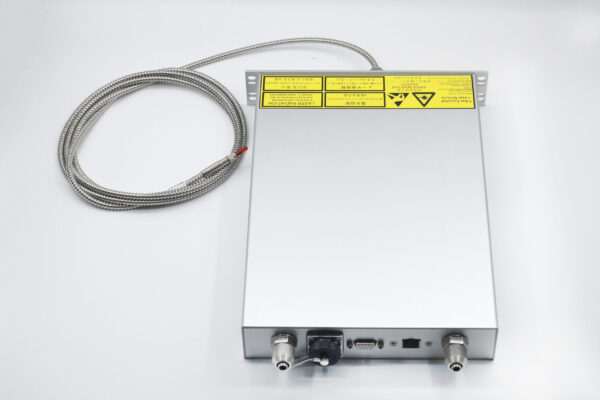

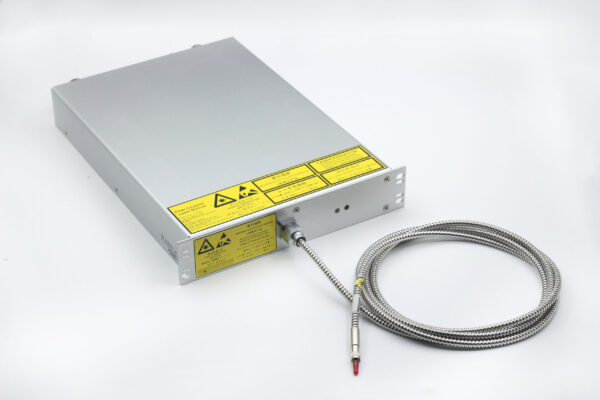

High Power Water Cooling 10W 405nm Fiber Coupled Laser Module for LDI

4.83 out of 5

|Add a review

$ 29.42

High Power Water Cooling 10W 405nm Fiber Coupled Laser Module for LDI The Water Cooling High Power 10W 405nm Fiber-Coupled Laser Module—a cutting-edge industrial solution engineered for ultra-stable, high-throughput precision processing. Combining 405nm violet wavelength’s superior material absorption, 10W continuous output, and efficient water cooling system, this module delivers reliable, targeted energy for demanding industrial applications requiring 24/7 continuous operation. Core Advantages (Water Cooling-Centric) 1. Efficient Water Cooling: Ultra-Stable High-Power Operation Dedicated water cooling system and precise temperature control (20°C~28°C), ensuring laser diode junction temperature ≤65°C during continuous 10W output. Eliminates thermal drift and power decay common in air-cooled modules, supporting uninterrupted industrial production (24/7 runtime) without performance degradation. 2. 405nm Violet Wavelength: Precision & Absorption Optimization 405nm wavelength (±5nm tolerance) achieves 3–8x higher absorption on photoresists, non-ferrous metals (copper, aluminum), and UV-curable resins vs. 1064nm IR lasers. Enables sub-10μm fine-patterning for HDI PCBs and micro-components, while offering 50μm~80μm material penetration—balancing precision and processing efficiency. 3. 10W High Power Stable CW output with lower power fluctuation over 24 hours, delivering energy density ≥12,000mW/cm² at the fiber tip. Reduces processing time compared to 3W modules (e.g., 1mm thick UV resin cured in ≤0.8 seconds vs. 4 seconds); supports high-speed production lines. Key Applications Industrial Processing PCB Laser Direct Imaging (LDI): Fine-patterning for HDI boards, IC substrates, and flexible FPCs with sub-10μm linewidths. UV Curing: High-speed curing of UV inks, adhesives, and conformal coatings in electronics/automotive assembly. Microfabrication: Precision structuring of polymers, glass, and thin films for MEMS, microfluidics, and semiconductor components. Advanced Manufacturing 3D Printing: High-power light source for large-format SLA/DLP 3D printers, enabling fast curing of thick resin layers (≥5mm) with intricate details. Material Processing: Laser ablation, surface modification (hydrophilic/hydrophobic treatment), and metal thin-film deposition. Scientific Research Biomedical Research: Fluorescence excitation, photodynamic therapy (PDT) studies, and cell imaging. Material Science: Polymer aging testing, nanomaterial synthesis, and laser-induced breakdown spectroscopy (LIBS). Core Specification : Wavelength 405nm Output Power 10W (CW) Working Voltage 24V Fiber Core Diameter 105um , NA0.22, 1.5M length Coupling Efficiency 85% Housing Size 354*230*44mm (Customizable) Lifespan 10,000 hours Product Display : Our Services : We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules from 375nm to 1064nm! Item Parameter Wavelength 375-405nm 425-488nm 515-520nm 635-670nm 780-980nm Single Diode Module Optical Power 20mW-3W 20mW-3W 10mW-1.6W 5mW-2.5W 5mW-75W Multi Diodes Module Optical Power 3W-200W 6W-500W 1.6W-50W 2.5W-30W 75W-100W Operating Voltage 3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc. Beam Mode Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc. Fan Angle Options of the Line Beam 5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc. Optical Lens Acrylic lenses, glass lenses, wave lenses, Powell lenses etc. Dimension 4*8mm/ 6*10.5mm/12*15mm/9*21mm/16*66mm/ 33*33*55mm/ Customizable etc. CDRH Class class1/class2/class3R/class3B/class4
