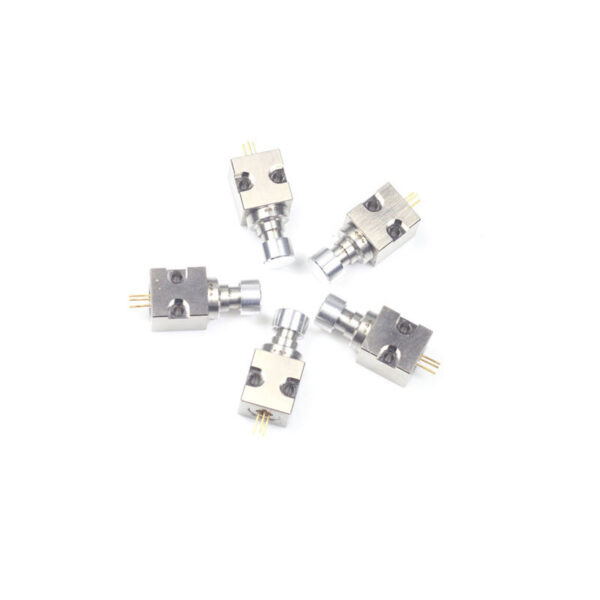

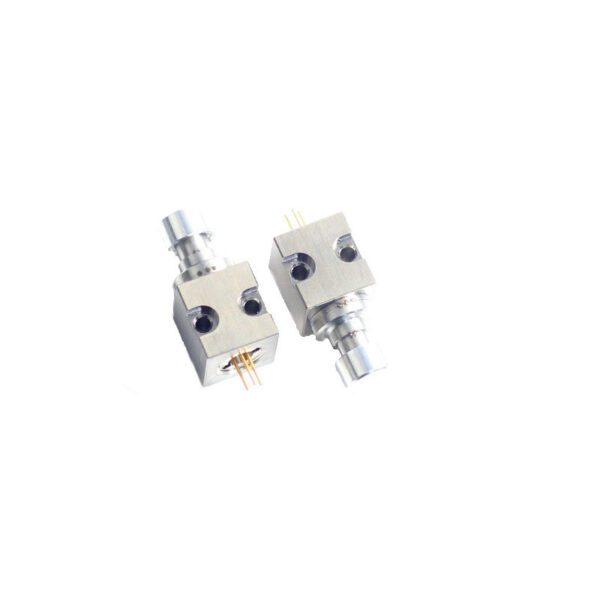

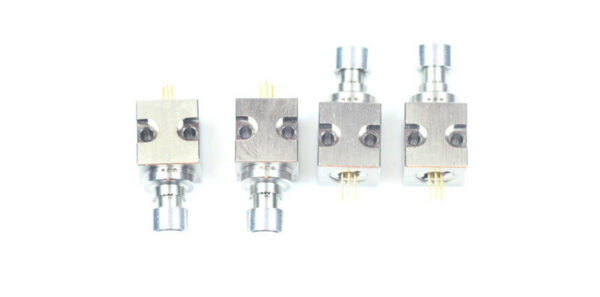

High Power Violet 405nm 600mW Fiber Coupled Laser Module for Laser Direct Imaging

4.83 out of 5

|Add a review

$ 28.80

High Power Violet 405nm 600mW Fiber Coupled Laser Module for Laser Direct Imaging The High Power Violet 405nm 600mW Fiber Coupled Laser Module—a precision-engineered industrial light source optimized exclusively for laser direct imaging (LDI) systems. Integrating 405nm violet lasers’ photoresist-specific absorption, 600mW high-energy output, low-loss fiber coupling, and production-grade stability, it delivers uniform, high-resolution beam performance for PCB/FPC fine patterning, enabling efficient, high-yield electronics manufacturing. Core Advantages for Laser Direct Imaging 405nm Violet Wavelength: LDI Photoresist Optimization 405nm wavelength aligns perfectly with the absorption peak of industrial LDI photoresists (epoxy, acrylate-based), triggering rapid, complete photopolymerization; supports ultra-fine linewidth patterning (down to 15μm) for HDI boards and flexible electronics, outperforming longer wavelengths in imaging precision. 600mW High Power: Boost LDI Throughput Stable CW output, high energy density, reducing photoresist exposure time by 40% compared to 300mW modules; meets high-volume production demands for PCB manufacturing lines without compromising patterning quality. Low-Loss Fiber Coupling: Flexible Integration Equipped with UV-grade multimode silica fiber (core diameter 105μm, NA=0.22, coupling efficiency ≥85%), enabling precise, flexible beam delivery to LDI scanning systems, adapting to confined equipment spaces and complex motion paths. Fiber length customizable (1–3m) for factory layout flexibility. Key Applications Primary Application: Laser direct imaging (LDI) for fine circuit patterning on rigid PCBs, flexible FPCs, HDI boards, and semiconductor packaging substrates. Extended Applications: UV photopolymer curing, microfluidic chip lithography, and high-precision photomask making in electronics and microfabrication industries. Core Specification : Wavelength 405nm Output Power 600mW Working Voltage 4.4V Fiber Core Diameter 105/125um (Customizable) Coupling Efficiency >85% Housing Size 20*20*10mm (Customizable) Lens Optical Glass Lifespan > 10,000 hours Product Display : Our Services : We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules from 375nm to 1064nm! Item Parameter Wavelength 375-405nm 425-488nm 515-520nm 635-670nm 780-980nm Single Diode Module Optical Power 20mW-3W 20mW-3W 10mW-1.6W 5mW-2.5W 5mW-75W Multi Diodes Module Optical Power 3W-200W 6W-500W 1.6W-50W 2.5W-30W 75W-100W Operating Voltage 3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc. Spot Mode Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc. Fan Angle Options of the Line Beam 5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc. Optical Lens Acrylic lenses, glass lenses, wave lenses, Powell lenses etc. Dimension 4*8mm/ 6*10.5mm/12*15mm/9*21mm/16*66mm/ 33*33*55mm etc. CDRH Class class1/class2/class3R/class3B/class4
