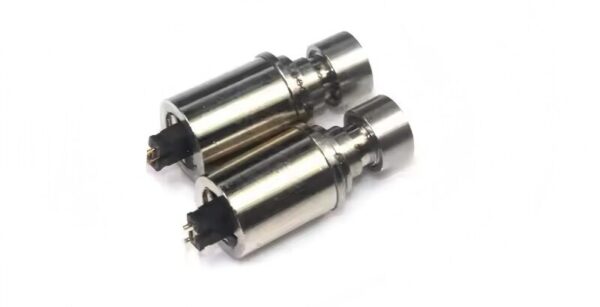

Cylinder Housing 405nm 600mW Fiber Coupled Laser Module for PCB Exposure The 405nm 600mw fiber coupled laser module has high efficiency, ultraviolet fiber laser head, low current and low voltage. The coupling efficiency of fiber-coupled laser module can reach more than 85%, and the fiber core diameter is 105/125 μ m. The fiber-coupled laser module with 405nm has good performance and uniform light spot. The 105/125μm multimode core can reduce the beam divergence angle. When combined with fiber coupling output, it allows the laser energy to be more concentrated with low loss during transmission. It usually has a small volume and does not require complex optical path calibration. Fiber-coupled laser has a wide range of applications, such as PCB plate making, fluorescence excitation, material processing, biochemical research, criminal investigation, UV exposure and so on. Core Specification : Wavelength 405nm Output Power 600mW Working Voltage 4.4V Fiber Core Diameter 105/125um (Customizable) Coupling Efficiency >85% Housing Size 9.5*20mm (Customizable) Lens Optical Glass Lifespan > 10,000 hours Product Display : Our Services : We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules from 375nm to 1064nm! Item Parameter Wavelength 375-405nm 425-488nm 515-520nm 635-670nm 780-980nm Single Diode Module Optical Power 20mW-3W 20mW-3W 10mW-1.6W 5mW-2.5W 5mW-75W Multi Diodes Module Optical Power 3W-200W 6W-500W 1.6W-50W 2.5W-30W 75W-100W Operating Voltage 3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc. Spot Mode Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc. Fan Angle Options of the Line Beam 5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc. Optical Lens Acrylic lenses, glass lenses, wave lenses, Powell lenses etc. Dimension 4*8mm/ 6*10.5mm/12*15mm/9*21mm/16*66mm/ 33*33*55mm etc. CDRH Class class1/class2/class3R/class3B/class4
