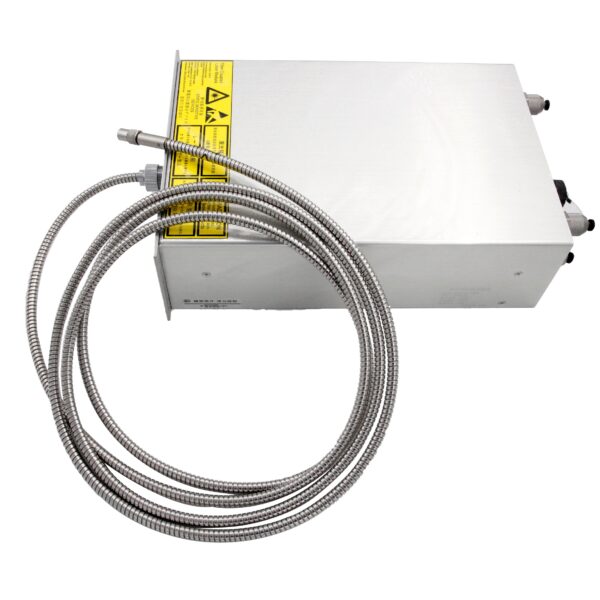

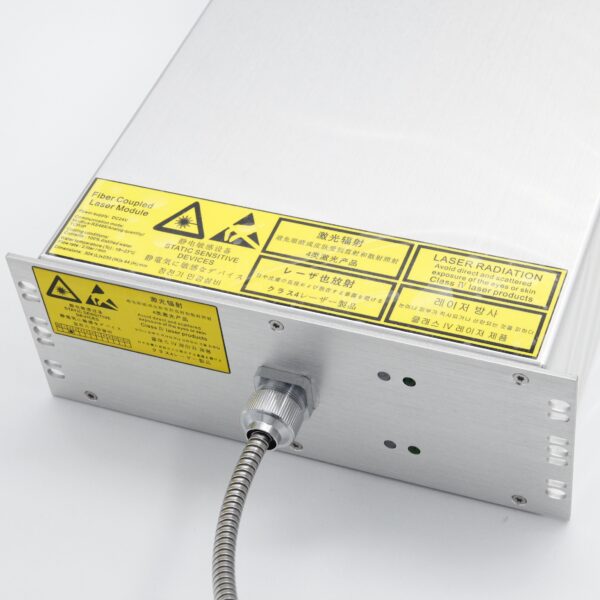

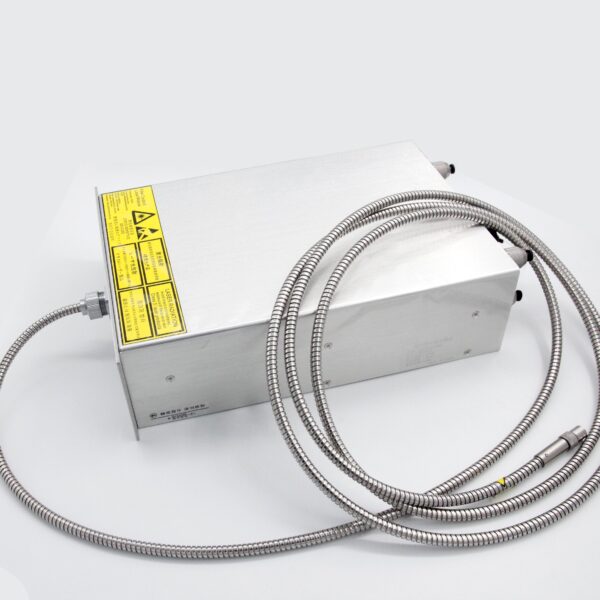

4IN1 405nm 415nm 435nm 375nm Laser Total 40W Four Wavelength Fiber Coupled Laser Module for Sold Mask Curing

4.83 out of 5

|Add a review

$ 22.63

4IN1 405nm 415nm 435nm 375nm Laser Total 40W Four Wavelength Fiber Coupled Laser Module for Sold Mask Curing The 4IN1 40W Multi-Wavelength Fiber-Coupled Laser Module—a cutting-edge integrated solution engineered exclusively for PCB mask curing (solder mask, photoresist curing) in high-volume electronics manufacturing. Combining four UV-violet wavelengths (375nm/405nm/415nm/435nm) with 40W total output power and precision fiber coupling, this module delivers tailored energy absorption for diverse PCB mask resins, ensuring ultra-fast curing, uniform film quality, and compatibility with rigid PCBs, FPCs, and HDI boards. Core Advantages for PCB Mask Curing 1. 4-In-1 Multi-Wavelength Optimization: Universal Resin Compatibility 375nm UV-A: Aligns with absorption peaks of epoxy-based solder masks, enabling deep curing of thick masks (≥50μm) without thermal deformation. 405nm Violet: Optimized for acrylate-based photoresists and HDI board fine-patterning (sub-10μm linewidths), ensuring sharp edge definition. 415nm Violet-Blue: Enhances curing efficiency of hybrid resins (epoxy-acrylate blends), reducing oxygen inhibition for smoother mask surfaces. 435nm Blue-Violet: Improves adhesion of low-viscosity solder masks on copper traces, minimizing pinholes and micro-cracks. Independent Power Control: Each wavelength supports 5W–15W adjustable output (total 40W), allowing customization for specific resin formulations and PCB thicknesses. 2. 40W High Total Power: Boost Production Throughput With water cooling systems built in, Stable CW output with ≤±2% power fluctuation per wavelength. Reduces curing time by 70% compared to single-wavelength 10W modules (e.g., 1.2mm thick PCB mask cured in ≤2 seconds vs. 6 seconds). Supports high-speed inline production (up to 3m/min conveyor speed) for mass PCB manufacturing, without compromising curing uniformity. 3. Precision Fiber-Coupled Delivery: Uniform Curing Across PCB Surfaces Equipped with UV-grade multimode silica fiber (core diameter 105, NA=0.22, total coupling efficiency ≥95%). Single-fiber coaxial output of all four wavelengths ensures uniform energy distribution across large PCB areas (up to 600mm×600mm) and complex geometries (e.g., blind vias, microvias). Fiber length customizable (1.5m–5m) with SMA-905/ FC industrial connector, adapting to inline curing stations, robotic arms, or automated PCB lines. Key Applications Primary Application: Solder mask curing for rigid PCBs, flexible FPCs, HDI boards, IC substrates, and automotive electronics PCBs. Resin Compatibility: Epoxy-based, acrylate-based, and hybrid (epoxy-acrylate) solder masks; liquid photoresists (LFR) and dry film photoresists (DFR). Extended Applications: Conformal coating curing for PCB assemblies, microfluidic chip photoresist curing, and high-precision electronic component patterning. Core Specification : Wavelength 405nm/ 415nm/435nm/375nm Output Power 10W of each wavelength, then total 40W optical power Working Voltage 24V Fiber Core Diameter 105um , NA0.22, 3M length Coupling Efficiency 85% Housing Size 354*207*128mm (Customizable) Lifespan 10,000 hours Product Display : Our Services : We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules from 375nm to 1064nm! Item Parameter Wavelength 375-405nm 425-488nm 515-520nm 635-670nm 780-980nm Single Diode Module Optical Power 20mW-3W 20mW-3W 10mW-1.6W 5mW-2.5W 5mW-75W Multi Diodes Module Optical Power 3W-200W 6W-500W 1.6W-50W 2.5W-30W 75W-100W Operating Voltage 3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc. Beam Mode Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc. Fan Angle Options of the Line Beam 5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc. Optical Lens Acrylic lenses, glass lenses, wave lenses, Powell lenses etc. Dimension 4*8mm/ 6*10.5mm/12*15mm/9*21mm/16*66mm/ 33*33*55mm/ Customizable etc. CDRH Class class1/class2/class3R/class3B/class4
