AT32 32 X Magnification Automatic Dumpy Level Tripod Staff
$50.66
$80.55

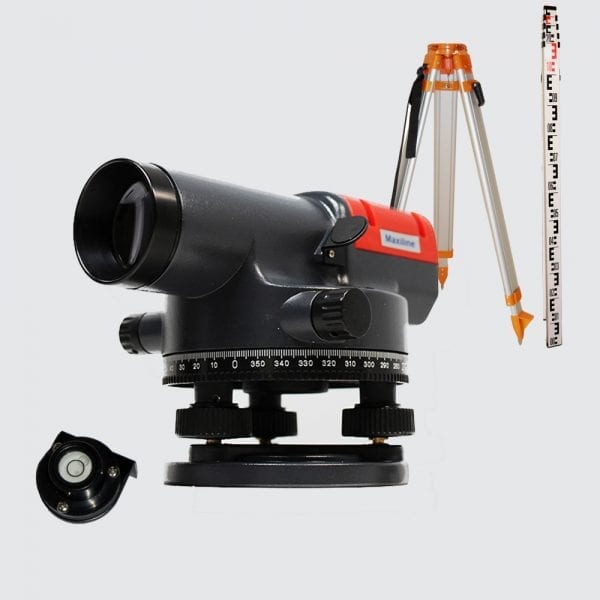

Additional informationProduct DescriptionWarranty Additional information Weight 2.65 kg Dimensions 29 × 21 × 21 cm Product DescriptionSpecification: Standard Deviation for 1km double run leveling: 1.5mm Image: Positive image Magnification: 32X Objective aperture: 36mm Minimum focus: 0.4m Stadio ration: 1:100 Setting accuracy: ±0.3 Magnetically dampened compensator: ±15′ Sensitivity of bubble: 8’ per 2mm Tripod thread: 5/8” Unit Weight: 1.2kg ST1 tripod Max Height: 160cm Min Height: 95cm Leg clamp: quick release (clamp) Material: aluminum Thread: 5/8″ Tripod Weight: 3.5kg 3M5 staff Material: Aluminum Sections: 3M 5 sections (easy to carry) Graduation: Front: E face Back: 1mm reverse graduation Weight: 1.4kg Complete Kit: Dumpy level, carry case, plumb bob, tripod and staff Video of AT32: Warranty Dumpy level comes with 12 months Australia warranty from the date of purchase, which does not include any physical damage, user misuse and consumables. Please contact us for details.
