3D Structured Light 830nm 200mW IR Laser Module for Machine Vision Detection Sensor

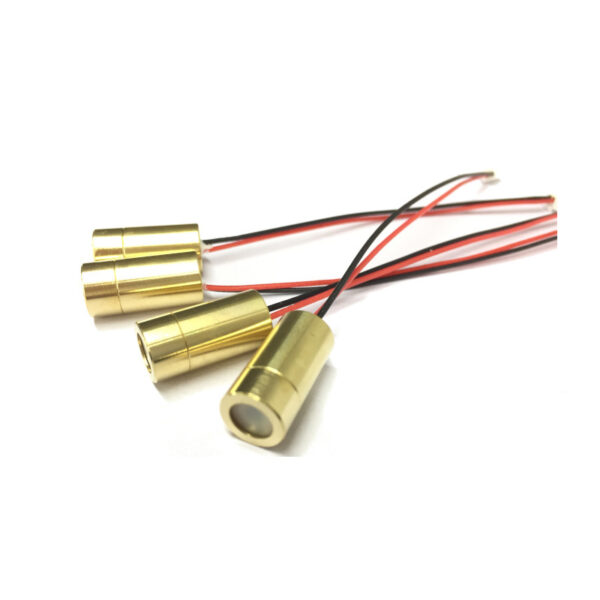

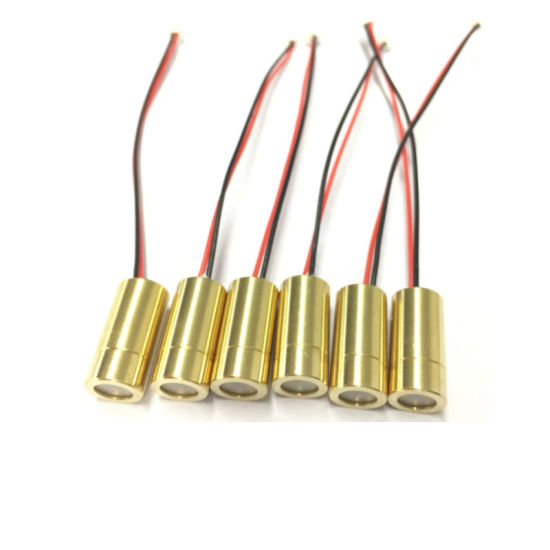

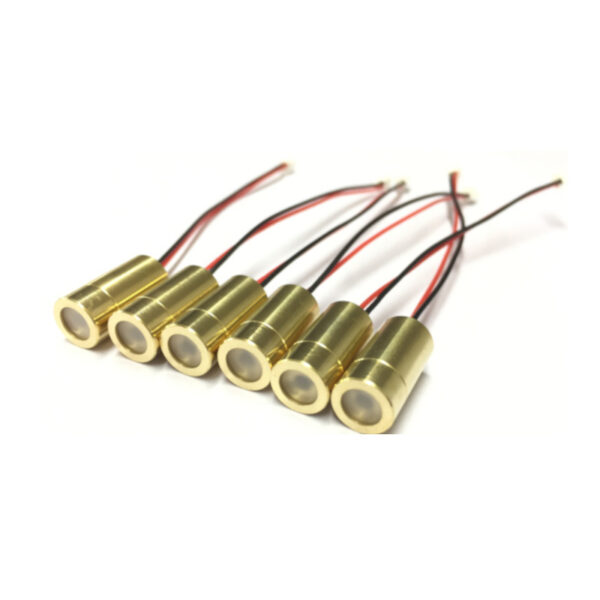

3D Structured Light 830nm 200mW IR Laser Module for Machine Vision Detection Sensor This 3D Structured Light 830nm 200mW IR Laser Module is a professional-grade core component for machine vision detection sensors, integrating 830nm infrared laser technology and advanced 3D structured light projection to deliver high-precision, fast-response 3D imaging and object detection. It excels in industrial quality inspection, 3D dimension measurement, object recognition, and robotic vision guidance—becoming an indispensable choice for smart manufacturing, automated production lines, and precision detection systems. Core Technical Advantages for Machine Vision Detection 830nm IR Wavelength Anti-Interference Optimization: The 830nm infrared wavelength avoids interference from ambient light (sunlight, factory lighting) and has strong penetration to surface textures, ensuring stable 3D structured light projection even in complex industrial environments. It minimizes reflection glare on high-brightness or transparent objects, enabling accurate machine vision detection of diverse workpieces. 200mW High Power for Wide-Range Imaging: With stable 200mW output, it projects a uniform structured light pattern (dot matrix) over a 0.5-5m detection range. The high-power output ensures clear pattern recognition on both near and far objects, supporting 3D scanning of small precision parts and large workpieces with consistent accuracy. Precision Structured Light Design: Equipped with a custom optical diffuser DOE, it generates random 30000 laser points. The structured light pattern features high contrast and sharp edges, enabling 3D imaging precision and fast point cloud reconstruction—critical for real-time machine vision detection on high-speed production lines.   Core Specification : Wavelength 830nm Output Power 200mW Working Voltage 3-5V Beam Mode 30000 point Housing Size 9*18mm (Customizable) Lens Glass DOE Lifespan 10,000 hours   Product Display :   Our Services : We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules from 375nm to 1064nm! Item Parameter Wavelength 375-405nm 425-488nm 515-520nm 635-670nm 780-980nm Single Diode  Module Optical Power 20mW-3W 20mW-3W 10mW-1.6W 5mW-2.5W 5mW-75W Multi Diodes Module Optical Power 3W-200W 6W-500W 1.6W-50W 2.5W-30W 75W-100W Operating Voltage 3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc. Beam Mode Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc. Fan Angle Options of the Line Beam 5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc. Optical Lens Acrylic lenses, glass lenses, wave lenses, Powell lenses etc. Dimension 4*8mm/ 6*10.5mm/12*15mm/9*21mm/16*66mm/ 33*33*55mm/ Customizable etc. CDRH Class class1/class2/class3R/class3B/class4
