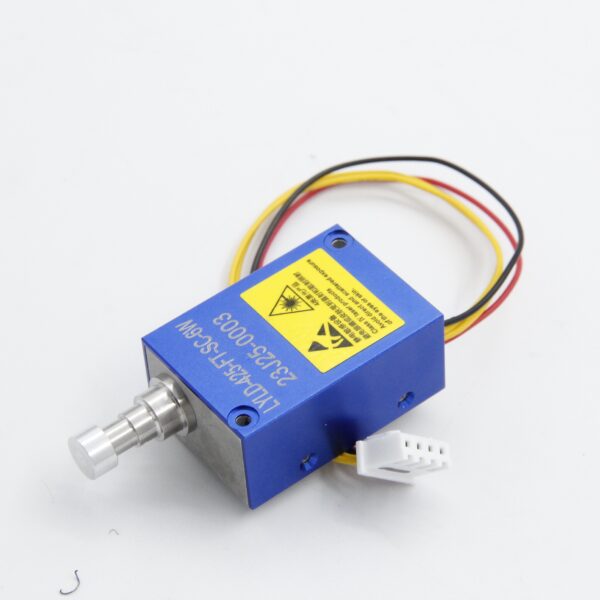

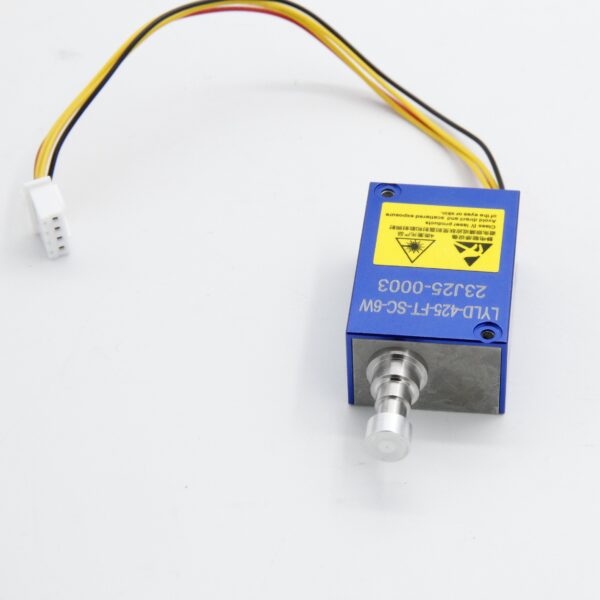

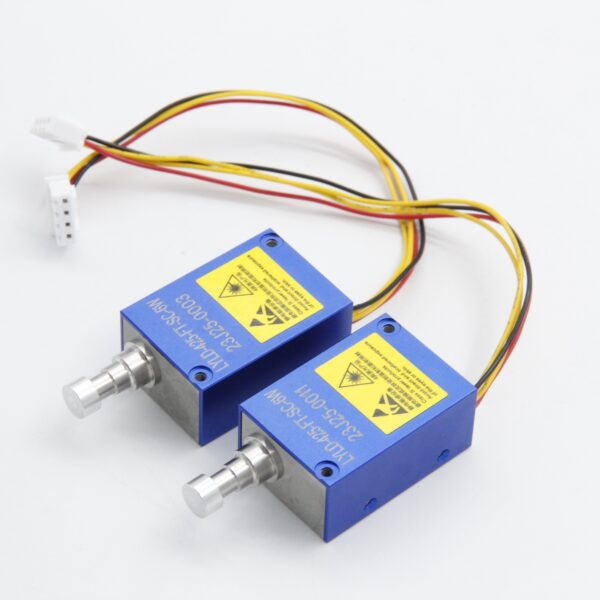

105um Violet 405nm 5W Space Coupling Fiber Laser Module for UV 3D Printer
$27.15
$52.13
Violet 405nm 5W Space Coupling Fiber Laser Module The space coupling fiber laser module is a light source device that is calibrated through an optical lens group, combined to increase power, and then coupled to an optical fiber. The Violet 405nm 5W Space Coupling Fiber Laser Module—a high-power, near-UV light source engineered for precision industrial applications requiring flexible beam delivery and exceptional stability. Leveraging advanced space coupling technology, this module delivers 5W CW output through a multimode fiber, enabling precise energy deposition for photolithography, material processing, and bio-photonics applications. Core Advantages for Precision Processing 1. Near-UV 405nm Wavelength: Unmatched Photonic Precision 405nm ±5nm wavelength: Delivers near-UV performance with high photon energy (3.06eV) for efficient photopolymerization, photoresist exposure, and fluorescence excitation Superior absorption: Optimized for materials sensitive to near-UV light, including polymers, photoresists, and biological samples—ideal for microfabrication requiring sub-micron resolution Low thermal impact: Minimizes heat-affected zones (HAZ) compared to longer wavelengths, preserving material integrity in delicate processing applications 2. Space Coupling Technology: Flexible & Efficient Beam Delivery Advanced free-space coupling design: Achieves >85% coupling efficiency with 105µm/125µm multimode fibers, maximizing power transfer while maintaining beam quality Modular fiber interface: Enables quick fiber swapping for different applications, with standard fiber lengths of 1m/2m (custom lengths available up to 10m). The standard module is without fiber, if you need the fiber, please contact our sales person. Beam uniformity: Delivers consistent energy distribution across the fiber core, ensuring uniform processing results for large-area exposure applications 3. 5W High-Power Output: Industrial-Scale Productivity 5W CW output power: Provides sufficient energy for high-throughput processing, reducing cycle times by 30% vs. lower-power alternatives. Key Applications for Precision Processing Application Scenario Core Benefits PCB Photolithography Precise photoresist exposure for fine-pitch circuits (down to 50μm line width); uniform energy distribution ensures consistent pattern transfer 3D Printing & Microfabrication Photopolymer curing for high-resolution 3D printing (SLA/DLP); enables sub-100μm feature sizes with smooth surface finish Material Surface Modification UV-induced surface activation for improved adhesion; ideal for plastics, glass, and metal pretreatment before bonding/coating Biomedical & Biophotonics Fluorescence excitation for flow cytometry and confocal microscopy; DNA sequencing and microarray processing with minimal sample damage Optical Data Storage High-density optical recording; enables data storage in advanced optical media with improved bit density Core Specification : Wavelength 405nm Output Power 4-5.2W (CW) Working Voltage 16.5-18V Fiber Core Diameter 105um ( The standard product is without fiber, if you need the fiber, please contact our sale person!) Fiber Interface FC connector /SMA 905 (Customizable) Housing Size 53.8*25*16mm (Customizable) Optic Lens Glass Lifespan 10,000 hours Product Display : Our Services : We have over 15 years of experience with Lasers. We offer professional OEM& ODM service for laser modules from 375nm to 1064nm! Item Parameter Wavelength 375-405nm 425-488nm 515-520nm 635-670nm 780-980nm Single Diode Module Optical Power 20mW-3W 20mW-3W 10mW-1.6W 5mW-2.5W 5mW-75W Multi Diodes Module Optical Power 3W-200W 6W-500W 1.6W-50W 2.5W-30W 75W-100W Operating Voltage 3-5V/6V/ 12V/ 24V/ 30V/ 110V/ 220V/ 240V etc. Beam Mode Dot/ Line/ Cross/ Grid/ Muti-lines/ DOE etc. Fan Angle Options of the Line Beam 5°/10°/15°/20°/25°/30°/45°/60°/90°/110°/130°/180° etc. Optical Lens Acrylic lenses, glass lenses, wave lenses, Powell lenses etc. Dimension 4*8mm/ 6*10.5mm/12*15mm/9*21mm/16*66mm/ 33*33*55mm/ Customizable etc. CDRH Class class1/class2/class3R/class3B/class4 The Below are other laser pattern options you can select:
