NUGM06 8 Collimator Beams 520nm 13W Green Laser Diode Bank 520nm 1.6W Green Laser Diode

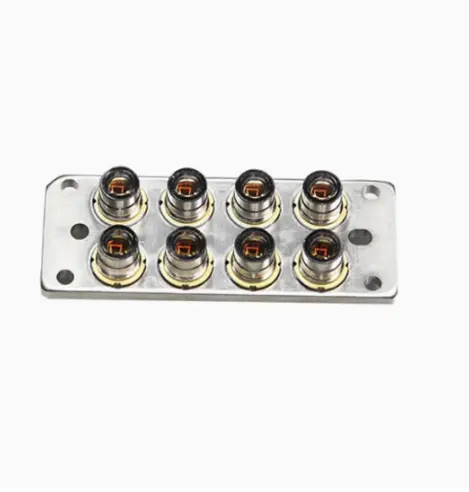

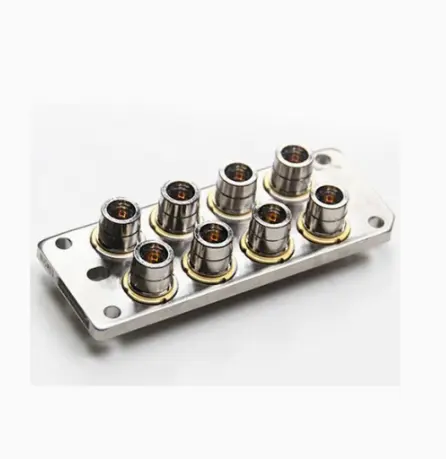

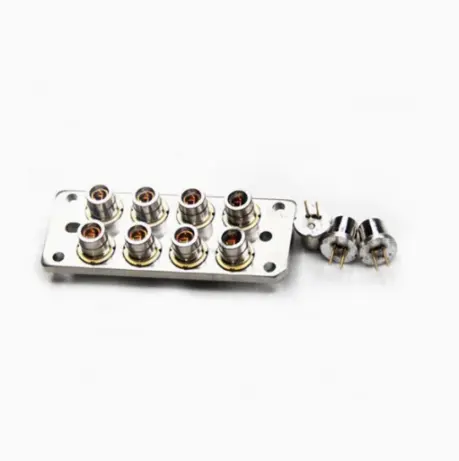

NUGM06 520nm 13W Green Laser Diode Bank 520nm 1.6W Green Laser Diode This NICHIA NUGM06T is a high-power 8-channel green laser diode (LD) bank, engineered for applications requiring multi-beam, stable green emission—ideal for industrial alignment, projection systems, and precision sensing. It integrates 8 collimated beams in a single module, with a low-heat dissipation design and high-safety structure to prevent accidental LD removal, ensuring reliable, long-term operation. Core Specifications (Typical at Stated Conditions): Performance: Delivers a typical 13.2W total optical output power (CW operation at 1.9A), with a dominant wavelength of 525nm (range: 510–530nm) for bright, consistent green light. Electrical Characteristics: Operates at a typical 35V forward voltage (8 LDs in series) with a 1.1W/A slope efficiency (CW mode), balancing power and energy efficiency. The threshold current for individual LDs is 150mA. Optical & Mechanical Design: Features controlled beam performance, including a typical 0° parallel beam divergence angle and 0° perpendicular angle (full angle at 1/e² peak intensity). The module supports auto current control (ACC) operation at 65°C ambient temperature. Durability: Withstands a maximum 2.3A forward current (per individual LD) and 85mA reverse current; operates in 0–65°C ambient temperatures (storage range: -40–85°C) for versatile environmental compatibility. Built to NICHIA’s strict quality standards, the NUGM06T combines multi-channel functionality, high power output, and robust thermal management—making it a top choice for professional and industrial applications needing synchronized, high-performance green laser beams. Core Specification: Wavelength 520nm Output Power 1.6W Working Voltage 5.4V Package TO5 9mm Condition Original package and brand new Lifespan > 10,000 hours BU-LASER has other Laser diodes from 375nm to 1064nm: Color Wavelength Power Range Package UV 375nm 500mW TO5-9mm UV 380nm 200mW TO18-5.6mm Violet 395nm  300mW TO18-5.6mm Violet 405nm 20mW-3W TO18-5.6mm /TO5-9mm Blue 425nm 1.5W TO18-5.6mm Blue 435nm 5W-7W TO5-9mm Blue 450nm/455nm 80mW -5.5W  TO18-5.6mm /TO5-9mm Blue 462nm/ 465nm 1.4W- 2.8W TO5-9mm Cyan 488nm 55mW-300mW TO18-5.6mm Green 515nm/520nm 10mW-1.6W TO18-3.8mm/TO18-5.6mm/TO5-9mm /Frame Red 635nm/638nm/642nm 5mW-2.5W TO18-3.8mm/TO18-5.6mm/TO5-9mm Red 650nm /658nm/660nm 5mW-1W TO18-3.3mm/TO18-3.8mm/TO18-5.6mm/C-mounted / Frame Red 670nm 5mW TO18-5.6mm Infrared 780nm/785nm 5mW-200mW TO18-5.6mm Infrared 808nm 200mW-5W TO18-5.6mm/TO5-9mm/C-mounted Infrared 830nm 30mW-300mW TO18-5.6mm Infrared 850nm 5mW-2W TO18-5.6mm Infrared 905nm 15W-75W TO18-5.6mm Infrared 940nm 250mW TO18-5.6mm Infrared 980nm 50mW-1W TO18-5.6mm/TO5-9mm Infrared 1064nm 50mW TO18-5.6mm
