HL6388MG 638nm 250mW Red Laser Diode 5.6mm Package

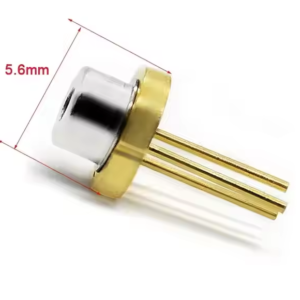

HL6388MG 638nm 250mW Red Laser Diode 5.6mm Package The HL6388MG stands as a robust, high-performance visible laser diode engineered for demanding optical applications. Crafted with a multi-quantum well (MQW) AlGaInP structure optimized for the 0.64µm wavelength band, it delivers bright, consistent 638nm red light (with a typical range spanning 632–642nm) — making it an exceptional choice for laser shows, professional displays, and a wide array of optical equipment. Designed to balance power and versatility, this diode outputs up to 200mW of continuous-wave (CW) optical power (operating safely within its 250mW maximum rating), ensuring vibrant, visible emission suitable for both entertainment and industrial use cases. Its multi-transverse mode operation enhances light stability, even in dynamic environments, while its compact Ø5.6mm package simplifies integration into space-constrained designs, from portable projectors to custom light systems. In terms of performance, the HL6388MG operates efficiently: it reaches a threshold current of just 110mA (typical) and runs at a nominal 360mA operating current (at 200mW output), paired with a low 2.3V operating voltage — minimizing power draw without sacrificing output quality. Its beam divergence (10° parallel to the junction, 40° perpendicular) ensures flexible beam shaping for targeted or wide-area illumination. Core Specification: Wavelength 638nm Output Power 250mW Working Voltage 2.3V Package TO18 5.6mm Condition Original package and brand new Lifespan > 10,000 hours BU-LASER has other Laser diodes from 375nm to 1064nm: Color Wavelength Power Range Package UV 375nm 500mW TO5-9mm UV 380nm 200mW TO18-5.6mm Violet 395nm  300mW TO18-5.6mm Violet 405nm 20mW-3W TO18-5.6mm /TO5-9mm Blue 425nm 1.5W TO18-5.6mm Blue 435nm 5W-7W TO5-9mm Blue 450nm/455nm 80mW -5.5W  TO18-5.6mm /TO5-9mm Blue 462nm/ 465nm 1.4W- 2.8W TO5-9mm Cyan 488nm 55mW-300mW TO18-5.6mm Green 515nm/520nm 10mW-1.6W TO18-3.8mm/TO18-5.6mm/TO5-9mm /Frame Red 635nm/638nm/642nm 5mW-2.5W TO18-3.8mm/TO18-5.6mm/TO5-9mm Red 650nm /658nm/660nm 5mW-1W TO18-3.3mm/TO18-3.8mm/TO18-5.6mm/C-mounted / Frame Red 670nm 5mW TO18-5.6mm Infrared 780nm/785nm 5mW-200mW TO18-5.6mm Infrared 808nm 200mW-5W TO18-5.6mm/TO5-9mm/C-mounted Infrared 830nm 30mW-300mW TO18-5.6mm Infrared 850nm 5mW-2W TO18-5.6mm Infrared 905nm 15W-75W TO18-5.6mm Infrared 940nm 250mW TO18-5.6mm Infrared 980nm 50mW-1W TO18-5.6mm/TO5-9mm Infrared 1064nm 50mW TO18-5.6mm
