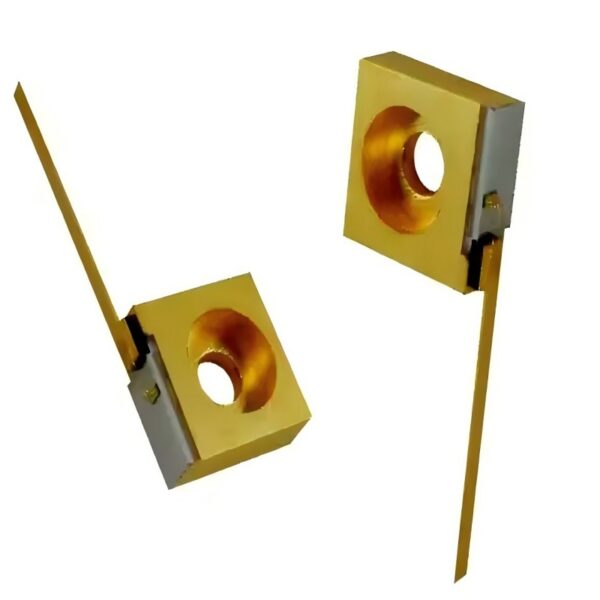

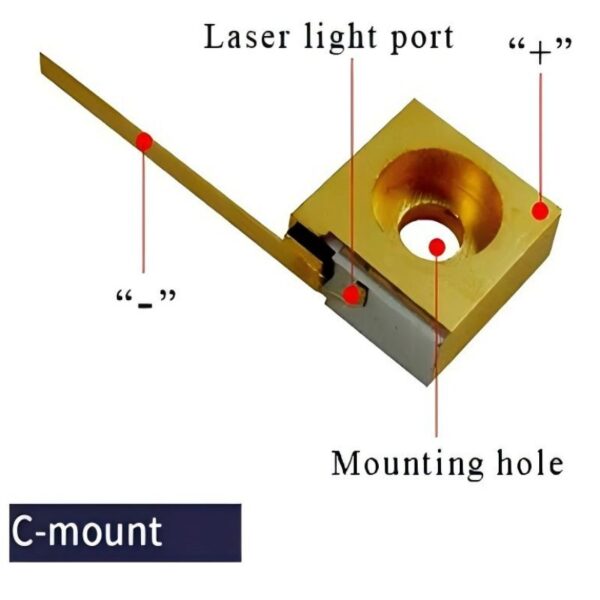

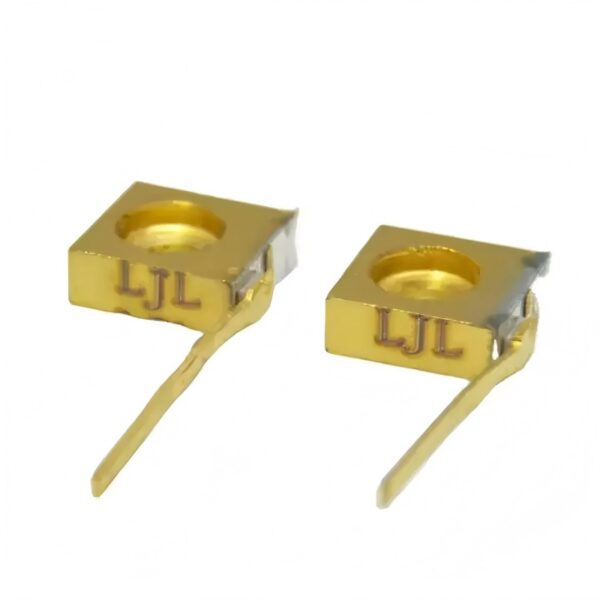

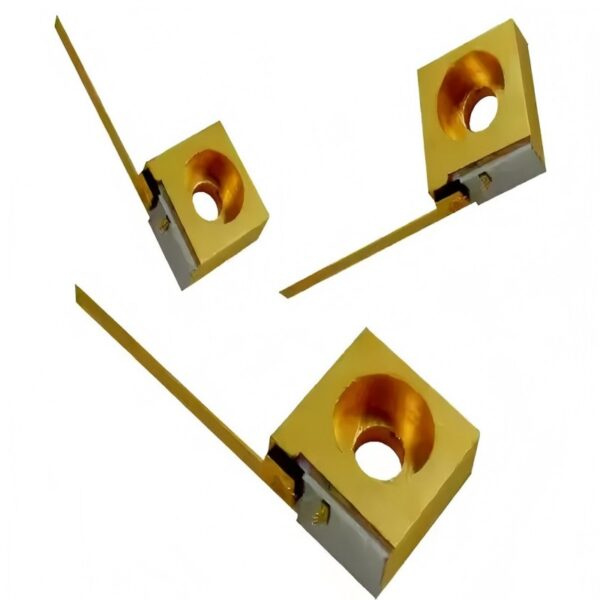

808nm 1W-5W High Power C-mount Laser Diode The JLD80X00Z-C series is a versatile lineup of 808nm high-power C-mount laser diodes, engineered to deliver scalable output (1W, 2W, 3W, 5W) for demanding industrial, medical, and laser pumping applications. Built with an efficient quantum well structure, these diodes maintain a consistent 808±5nm center wavelength across all power variants, ensuring compatibility with standardized optical systems. Housed in a robust C-mount package (ideal for high-heat dissipation in continuous high-power operation), each variant balances performance with durability: 1W (JLD80100Z-C): Operates at ≤1300mA current, with 12/40° (fast/slow axis) beam divergence (12/10° when collimated). 2W (JLD80200Z-C): Runs at ≤2500mA current, retaining the same wavelength and beam characteristics as the 1W model. 3W (JLD80300Z-C): Uses ≤3700mA current, with TM polarization (versus TE for lower-power variants) for specialized setups. 5W (JLD80500Z-C): Delivers maximum output at ≤6000mA current, with a 200×1μm emitting area and TM polarization. All variants support a 2V reverse voltage, 10–30°C operating temperature range, and 260°C soldering temperature (10s max), making them suitable for integration into high-intensity systems like solid-state laser pumps, material processing tools, and medical equipment. Whether you need 1W precision or 5W high intensity, the JLD80X00Z-C series offers scalable, reliable performance in a heat-efficient C-mount form factor. Core Specification: Wavelength 808nm Output Power 1W-5W Working Voltage 1.6-2.4V Package C-mount Condition Original package and brand new Lifespan > 10,000 hours BU-LASER has other Laser diodes from 375nm to 1064nm: Color Wavelength Power Range Package UV 375nm 500mW TO5-9mm UV 380nm 200mW TO18-5.6mm Violet 395nm 300mW TO18-5.6mm Violet 405nm 20mW-3W TO18-5.6mm /TO5-9mm Blue 425nm 1.5W TO18-5.6mm Blue 435nm 5W-7W TO5-9mm Blue 450nm/455nm 80mW -5.5W TO18-5.6mm /TO5-9mm Blue 462nm/ 465nm 1.4W- 2.8W TO5-9mm Cyan 488nm 55mW-300mW TO18-5.6mm Green 515nm/520nm 10mW-1.6W TO18-3.8mm/TO18-5.6mm/TO5-9mm /Frame Red 635nm/638nm/642nm 5mW-2.5W TO18-3.8mm/TO18-5.6mm/TO5-9mm Red 650nm /658nm/660nm 5mW-1W TO18-3.3mm/TO18-3.8mm/TO18-5.6mm/C-mounted / Frame Red 670nm 5mW TO18-5.6mm Infrared 780nm/785nm 5mW-200mW TO18-5.6mm Infrared 808nm 200mW-5W TO18-5.6mm/TO5-9mm/C-mounted Infrared 830nm 30mW-300mW TO18-5.6mm Infrared 850nm 5mW-2W TO18-5.6mm Infrared 905nm 15W-75W TO18-5.6mm Infrared 940nm 250mW TO18-5.6mm Infrared 980nm 50mW-1W TO18-5.6mm/TO5-9mm Infrared 1064nm 50mW TO18-5.6mm
