670nm 5mW Red Visible Laser Diode with PD 5.6mm Package

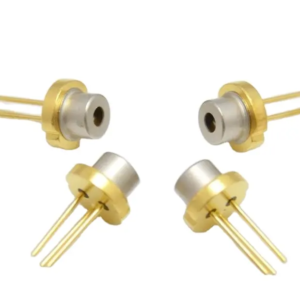

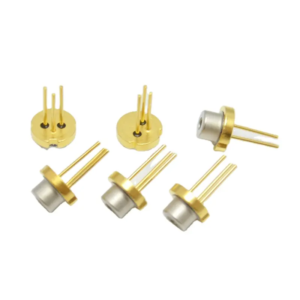

670nm 5mW Red Visible Laser Diode with PD 5.6mm Package This 670nm 5mW red laser diode is a compact, reliable optoelectronic component, engineered to deliver stable visible light emission for a range of consumer and industrial applications. Housed in a standard TO-18 (5.6mmφ) package with a lead-free glass cap, it integrates a built-in photodiode (PD) for real-time performance monitoring — simplifying integration into precision systems while ensuring consistent output. Operating at a typical 670nm wavelength, it provides a steady 5mW optical output (with a 7mW maximum rating) and supports a 2V reverse voltage (30V for the integrated PD). Its durable design functions across a -10 to 60°C operating temperature range and withstands -15 to 85°C during storage, making it resilient for both portable and fixed-device use cases. The diode’s compact TO-18 form factor (with detailed dimensional specifications for easy assembly) and integrated PD make it ideal for applications like laser pointers, barcode scanners, optical sensors, and low-power display modules. Whether used in consumer gadgets or industrial detection tools, this 670nm 5mW laser diode combines small size, reliable performance, and built-in monitoring to meet diverse low-power optical needs. Core Specification: Wavelength 6570nm Output Power 5mW Working Voltage 2.2V Package TO18 5.6mm Condition Original package and brand new Lifespan > 10,000 hours BU-LASER has other Laser diodes from 375nm to 1064nm: Color Wavelength Power Range Package UV 375nm 500mW TO5-9mm UV 380nm 200mW TO18-5.6mm Violet 395nm  300mW TO18-5.6mm Violet 405nm 20mW-3W TO18-5.6mm /TO5-9mm Blue 425nm 1.5W TO18-5.6mm Blue 435nm 5W-7W TO5-9mm Blue 450nm/455nm 80mW -5.5W  TO18-5.6mm /TO5-9mm Blue 462nm/ 465nm 1.4W- 2.8W TO5-9mm Cyan 488nm 55mW-300mW TO18-5.6mm Green 515nm/520nm 10mW-1.6W TO18-3.8mm/TO18-5.6mm/TO5-9mm /Frame Red 635nm/638nm/642nm 5mW-2.5W TO18-3.8mm/TO18-5.6mm/TO5-9mm Red 650nm /658nm/660nm 5mW-1W TO18-3.3mm/TO18-3.8mm/TO18-5.6mm/C-mounted / Frame Red 670nm 5mW TO18-5.6mm Infrared 780nm/785nm 5mW-200mW TO18-5.6mm Infrared 808nm 200mW-5W TO18-5.6mm/TO5-9mm/C-mounted Infrared 830nm 30mW-300mW TO18-5.6mm Infrared 850nm 5mW-2W TO18-5.6mm Infrared 905nm 15W-75W TO18-5.6mm Infrared 940nm 250mW TO18-5.6mm Infrared 980nm 50mW-1W TO18-5.6mm/TO5-9mm Infrared 1064nm 50mW TO18-5.6mm
