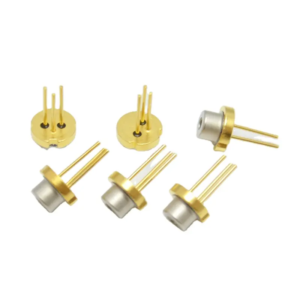

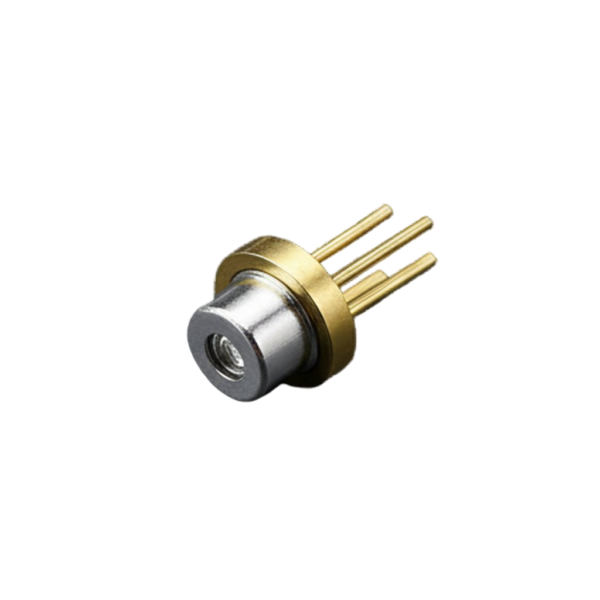

658nm 60mW(CW) 140mW(Pulse) Red Visible Laser Diode 5.6mm Package

658nm 60mW(CW) 140mW(Pulse) Red Visible Laser Diode 5.6mm Package 658nm 60mW(CW) 140mW(Pulse) laser diode is a high-power, high-efficiency AlGaInP semiconductor laser diode, engineered to deliver stable, single-transverse mode emission at a typical 658nm wavelength (ranging 654–662nm). Designed for reliability and performance, it features a real-index waveguide that boosts slope efficiency (reducing operating current) and minimizes astigmatic distance (1µm typical), while its window-mirror face enhances maximum output power for consistent, high-power operation. This diode offers versatile output: up to 60mW in continuous-wave (CW) mode and 140mW in pulsed operation (duty cycle <50%, pulse width <100ns). It operates efficiently, with a 55mA typical threshold current, 105mA typical operating current (at 50mW CW output), and 2.4V typical operating voltage — paired with a 1.0W/A typical slope efficiency for optimized energy conversion. Its beam divergence (9° parallel, 18° perpendicular typical) ensures focused, controlled light emission. Built for durability, the ML1X20 functions across a -10 to 75°C case temperature range and withstands -40 to 100°C during storage, with a 2V reverse voltage rating. It excels as a light source for portable high-density optical disc drives and re-writable DVD drives, combining Mitsubishi’s engineering quality with compact design and consistent performance. Core Specification: Wavelength 650nm Output Power 60mW(CW) , 140mW(Pulse) Working Voltage 2.4V Package TO18 5.6mm Condition Original package and brand new Lifespan > 10,000 hours BU-LASER has other Laser diodes from 375nm to 1064nm: Color Wavelength Power Range Package UV 375nm 500mW TO5-9mm UV 380nm 200mW TO18-5.6mm Violet 395nm  300mW TO18-5.6mm Violet 405nm 20mW-3W TO18-5.6mm /TO5-9mm Blue 425nm 1.5W TO18-5.6mm Blue 435nm 5W-7W TO5-9mm Blue 450nm/455nm 80mW -5.5W  TO18-5.6mm /TO5-9mm Blue 462nm/ 465nm 1.4W- 2.8W TO5-9mm Cyan 488nm 55mW-300mW TO18-5.6mm Green 515nm/520nm 10mW-1.6W TO18-3.8mm/TO18-5.6mm/TO5-9mm /Frame Red 635nm/638nm/642nm 5mW-2.5W TO18-3.8mm/TO18-5.6mm/TO5-9mm Red 650nm /658nm/660nm 5mW-1W TO18-3.3mm/TO18-3.8mm/TO18-5.6mm/C-mounted / Frame Red 670nm 5mW TO18-5.6mm Infrared 780nm/785nm 5mW-200mW TO18-5.6mm Infrared 808nm 200mW-5W TO18-5.6mm/TO5-9mm/C-mounted Infrared 830nm 30mW-300mW TO18-5.6mm Infrared 850nm 5mW-2W TO18-5.6mm Infrared 905nm 15W-75W TO18-5.6mm Infrared 940nm 250mW TO18-5.6mm Infrared 980nm 50mW-1W TO18-5.6mm/TO5-9mm Infrared 1064nm 50mW TO18-5.6mm
