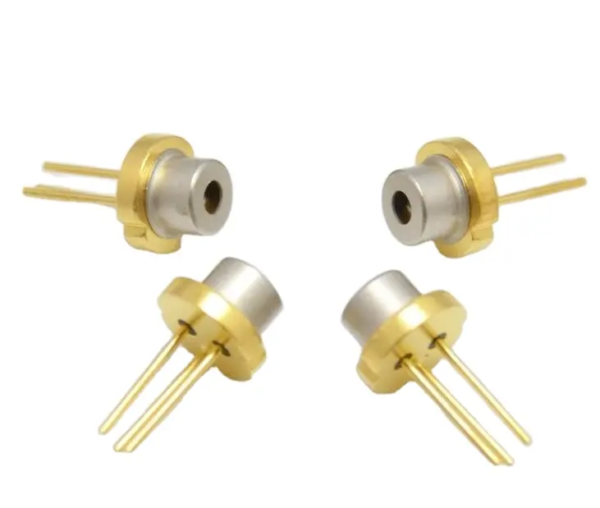

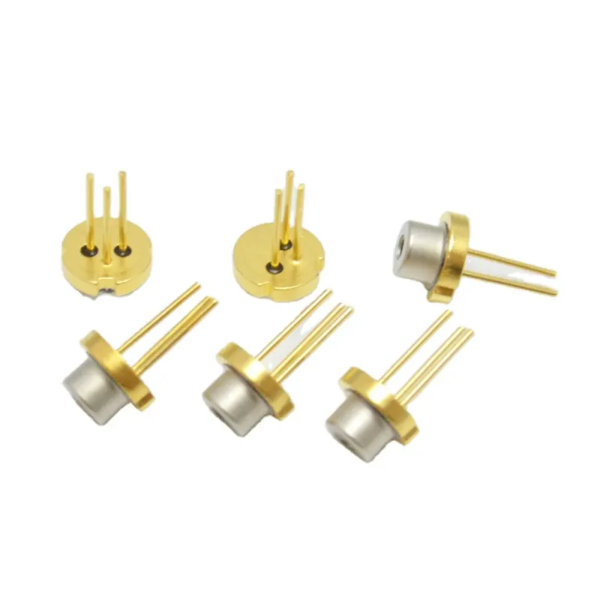

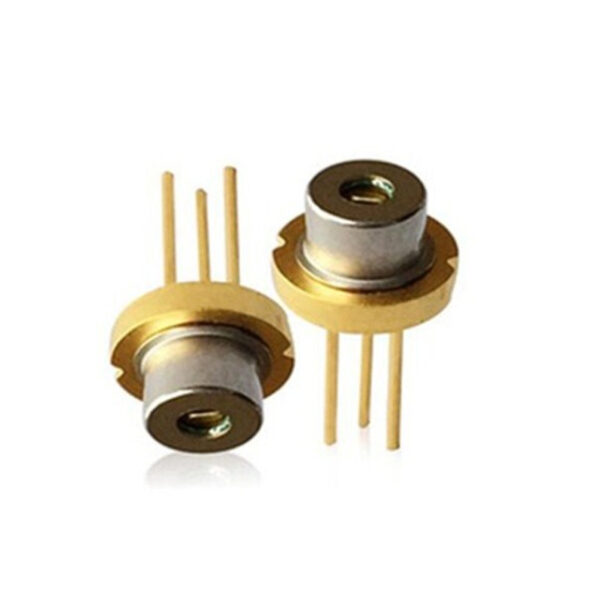

658nm 100mW Red Visible Laser Diode 5.6mm Package The Mitsubishi ML101J25 is a high-power, high-efficiency AlGaInP semiconductor laser diode, engineered to deliver stable single-transverse mode emission at a typical 658nm wavelength (ranging 654–662nm). Built for reliable, high-performance operation, it features a real-index waveguide that boosts slope efficiency (reducing operating current) and minimizes astigmatic distance (1µm typical), while its window-mirror face enhances maximum output power for consistent performance in demanding applications. This diode offers flexible output: up to 100mW in continuous-wave (CW) mode and 260mW in pulsed operation (duty cycle <50%, pulse width <50ns). It operates efficiently, with a 65mA typical threshold current, 170mA typical operating current (at 80mW CW output), and 2.5V typical operating voltage — paired with a 0.95mW/mA typical slope efficiency for optimized energy conversion. Its balanced beam divergence (9.5° parallel, 17° perpendicular typical) and low aspect ratio (1.8 typical) ensure focused, controlled light emission. Designed for durability, the ML101J25 functions across a -10 to 75°C case temperature range and withstands -40 to 100°C during storage, with a 2V reverse voltage rating. It excels as a light source for portable high-density optical disc drives and re-writable DVD drives, combining Mitsubishi’s precision engineering with compact design and consistent, high-power performance. Whether powering optical storage systems or similar optoelectronic devices, the mI101J25 stands out as a robust, efficient solution for high-demand applications. Core Specification: Wavelength 650nm Output Power 100mW(CW) Working Voltage 2.5V Package TO18 5.6mm Condition Original package and brand new Lifespan > 10,000 hours BU-LASER has other Laser diodes from 375nm to 1064nm: Color Wavelength Power Range Package UV 375nm 500mW TO5-9mm UV 380nm 200mW TO18-5.6mm Violet 395nm 300mW TO18-5.6mm Violet 405nm 20mW-3W TO18-5.6mm /TO5-9mm Blue 425nm 1.5W TO18-5.6mm Blue 435nm 5W-7W TO5-9mm Blue 450nm/455nm 80mW -5.5W TO18-5.6mm /TO5-9mm Blue 462nm/ 465nm 1.4W- 2.8W TO5-9mm Cyan 488nm 55mW-300mW TO18-5.6mm Green 515nm/520nm 10mW-1.6W TO18-3.8mm/TO18-5.6mm/TO5-9mm /Frame Red 635nm/638nm/642nm 5mW-2.5W TO18-3.8mm/TO18-5.6mm/TO5-9mm Red 650nm /658nm/660nm 5mW-1W TO18-3.3mm/TO18-3.8mm/TO18-5.6mm/C-mounted / Frame Red 670nm 5mW TO18-5.6mm Infrared 780nm/785nm 5mW-200mW TO18-5.6mm Infrared 808nm 200mW-5W TO18-5.6mm/TO5-9mm/C-mounted Infrared 830nm 30mW-300mW TO18-5.6mm Infrared 850nm 5mW-2W TO18-5.6mm Infrared 905nm 15W-75W TO18-5.6mm Infrared 940nm 250mW TO18-5.6mm Infrared 980nm 50mW-1W TO18-5.6mm/TO5-9mm Infrared 1064nm 50mW TO18-5.6mm
